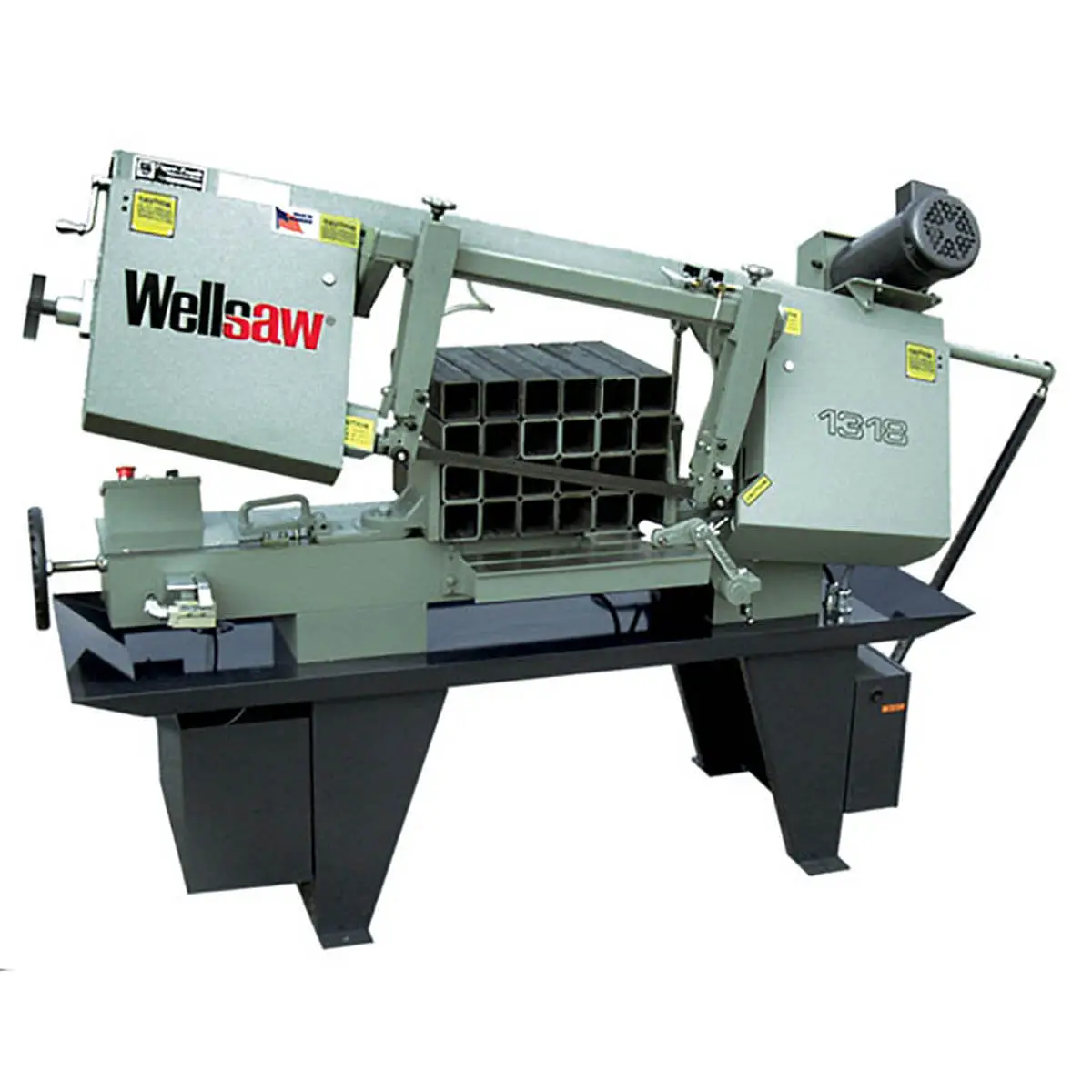

13″ x 18″ New Wellsaw Horizontal Band Saw Model 1318 Features:
Spring-loaded carbide guides with rollers
Combination reduction gearbox and perimeter ring gear blade drive
Baldor Motor, 3 hp motor 3 phase TEFC, 2hp single phase OOP
Infinitely Variable Blade Speeds
Rite-Tension Band Tensioning Device
Wet Cutting System
Powered Blade Brush
110 Volts at Controls
Overload and Undervoltage Protection
Precision Ground Bed and Vise Jaws
Quick Acting Vise
Adjustable Stock Stop
Auto Shut-Off at End of Cut
OSHA Blade Guarding
Tiger-Tooth Bi-Metal Blade
Coolant for Initial Start-Up
13″ x 18″ New Wellsaw Horizontal Band Saw Model 1318 Accessories:
Maximum Cutting Capacity Round: 13″
Maximum Cutting Capacity @45˚Angle: 11″ x 9-1/2″
Maximum Cutting Capacity Rectangular: 13″ H x 18″ W
Blade Guides: Carbide Guides with Rollers
Blade Size (LxWxT): 1″ x .035″ x 12’6″ (150″)
Blade Tension: Manual Rite-Tension
Blade Speeds: Infinitely Variable 70-375 SFPM
Vise Control: Quick Acting/Manual Screw
Motor Options: 2 HP-115-208-230/60/1 3 HP-208-230-460/60/3
Coolant System: Tank Capacity 8 Gallons, Submersible Pump 3GPM
Feed Rate Control: Variable Hydraulic with Counterbalance spring
Band Wheels: 15″ Diameter Cast Iron
Swivel Vise: to 45 degrees
Bed Height: 29″
Floor Area: 40″ W x 84″ L
Shipping Weight: 955 lbs.
