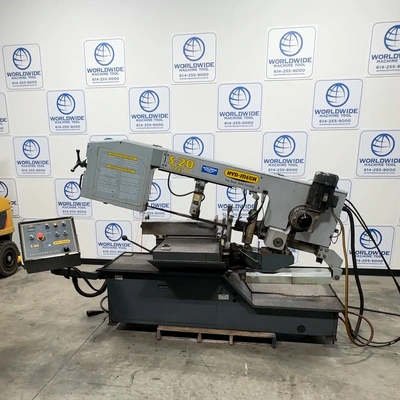

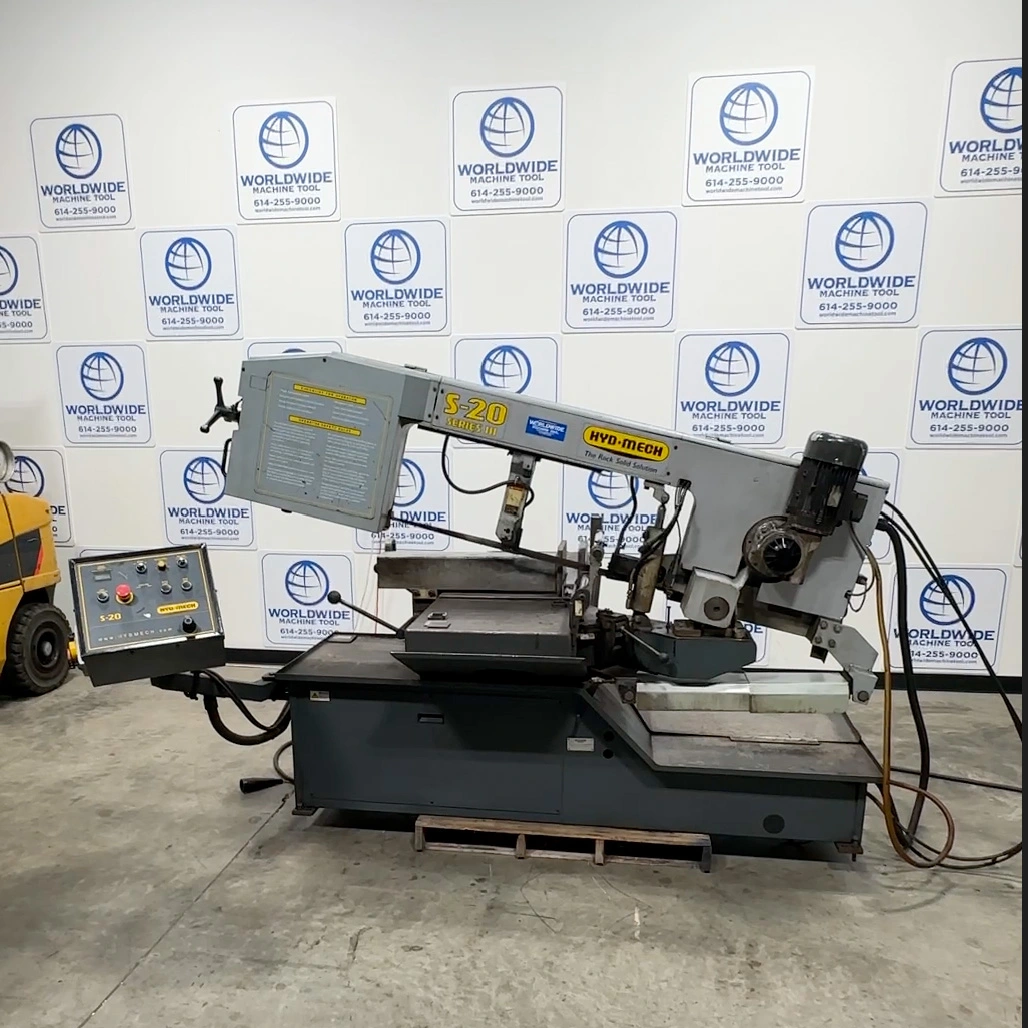

13″ x 18″ Used HydMech Pivot Style Horizontal Band Saw Model S-20 Series III Specifications:
13″ x 18″ Used HydMech Pivot Style Horizontal Band Saw Model S-20 Series III Standard Features:
Easy swing, heavy duty cast iron saw head that can swing up to 60 degrees in one direction
3 HP true direct blade drive – no belts/pulleys
36” material in-feed roller table and 19” out feed table
Heavy duty, quick adjusting, sliding material vise jaw
Mechanical band tensioning with digital readout
Cast iron band wheels

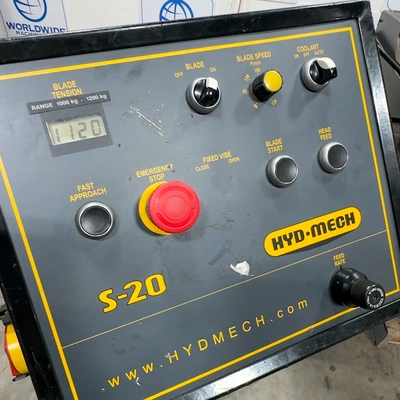

Swing away operator control panel
Replaceable blade brush
Robust steel base
Easy to read angle scale with angle locking mechanism
Cast iron guide arms. Idler side guide arm is adjustable and supported by linear rail.
Gravity fed sawing head with infinite down feed adjustment
Preset replaceable carbide guide inserts
Safety door interlocks
Flood coolant with wash down hose
Work light
13″ x 18″ New HydMech Manual Pivot Style Horizontal Band Saw Model S-20 Optional Features:
220 volt 3 phase
Swing away console
Variable speed drive
60 degree miter
90° rectangle (h x w): 13″ x 18″
90° round: 13″
45° rectangle (h x w): 13″ x 10.75″
45° round: 12″
30° rectangle (h x w): 13″ x 7.75″
30° round: 8.5″
Blade Drive: 3 HP VFD
Blade Speed: 45-330 SFM
Blade Size: 1″ x 14′ 10″
Table Height: 31″
Voltages Available: 220V 3 Phase
Weight: 2,200 lbs
Dimensions (w x l x h): 92″ x 75″ x 52″
Coolant Tank Capacity: 6 gal
Work Load: 5,000 lbs
