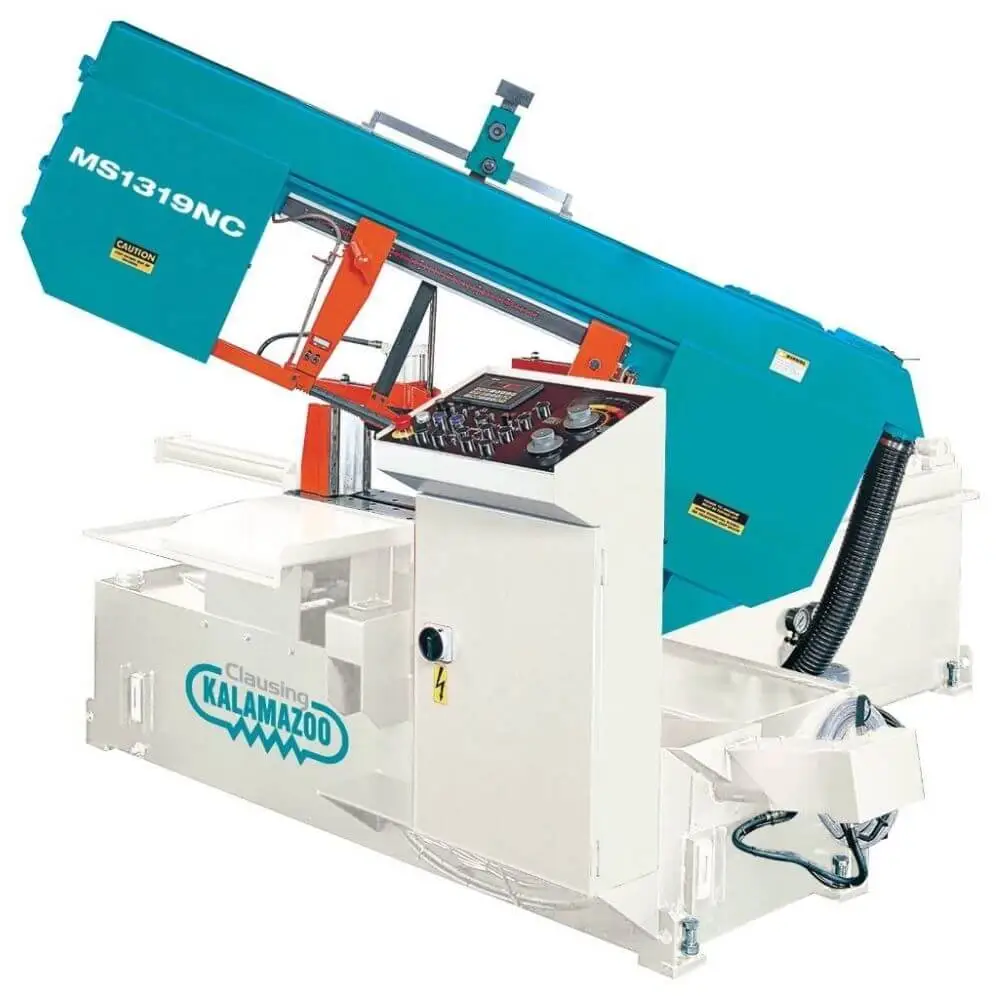

The swivel saw head allows cutting at any angle between 90° (straight cut) and 45° (miter cut)
Precision pivot system facilitates easy and accurate adjustment for angle cuts
Inverter controlled infinitely variable speed
Carbide blade guides with roller bearings
Two additional guides to support the blade from the top
Automatic hydraulic blade tensioning
Power driven blade brushes
Integral coolant system
Smart NC-100 technology programmable up to 100 different jobs
Easy recall and execution of stored parts
Automatic shutoff after preset number of cuts or when out of stock
5.7” HMI touch screen incorporating readout on blade speed, blade life, feed vise position and error code display for self-diagnostics
Automatic kerf loss compensation & computer controlled multiple indexing
Precision feed pressure & feed rate
Automatic height setting feature
Hydraulic front and rear vises
Cast iron vises with replaceable hardened wear plates
Computer controlled multiple indexing
Discharge table with built-in coolant return
Blade slippage or breakage detection
Additional flushing hose
Bi-metal saw blade
Built in work light
Tool box, leveling pads and an additional wire brush
Operation and parts manual
Two (2) year limited warranty
Motor: 5 Hp, 230 3 Ph
Hydraulic pump motor: 1 Hp
Hydraulic oil capacity: 10.4 gallons
Blade speeds (variable speed): 66-330 fpm
Blade size (W x T x L): 1.25″ x 0.042″ x 193″
Blade tension: Hydraulic
Coolant: Recirculating
Coolant capacity: 14.3 gallons
90º cutting capacity: Round 13″
Rectangular 11″ x 19.68″
45º cutting capacity: Round 11.5″
Rectangular 10.43″ x 10.43″
Feed accuracy: +/- 0.004″ to 0.008″
Length of remnant material (manual): 2.75″
Length of remnant material (automatic): 9.84″
Minimum cut thickness: 0.126″
Feed length/index: 23.9″
Max. feed: 255.9″
Length: 114″
Width: 102″
Height: 86.6″
Bed height: 30.8″
Net weight: 3,300 lbs.
Shipping weight: 3,745 lbs.
