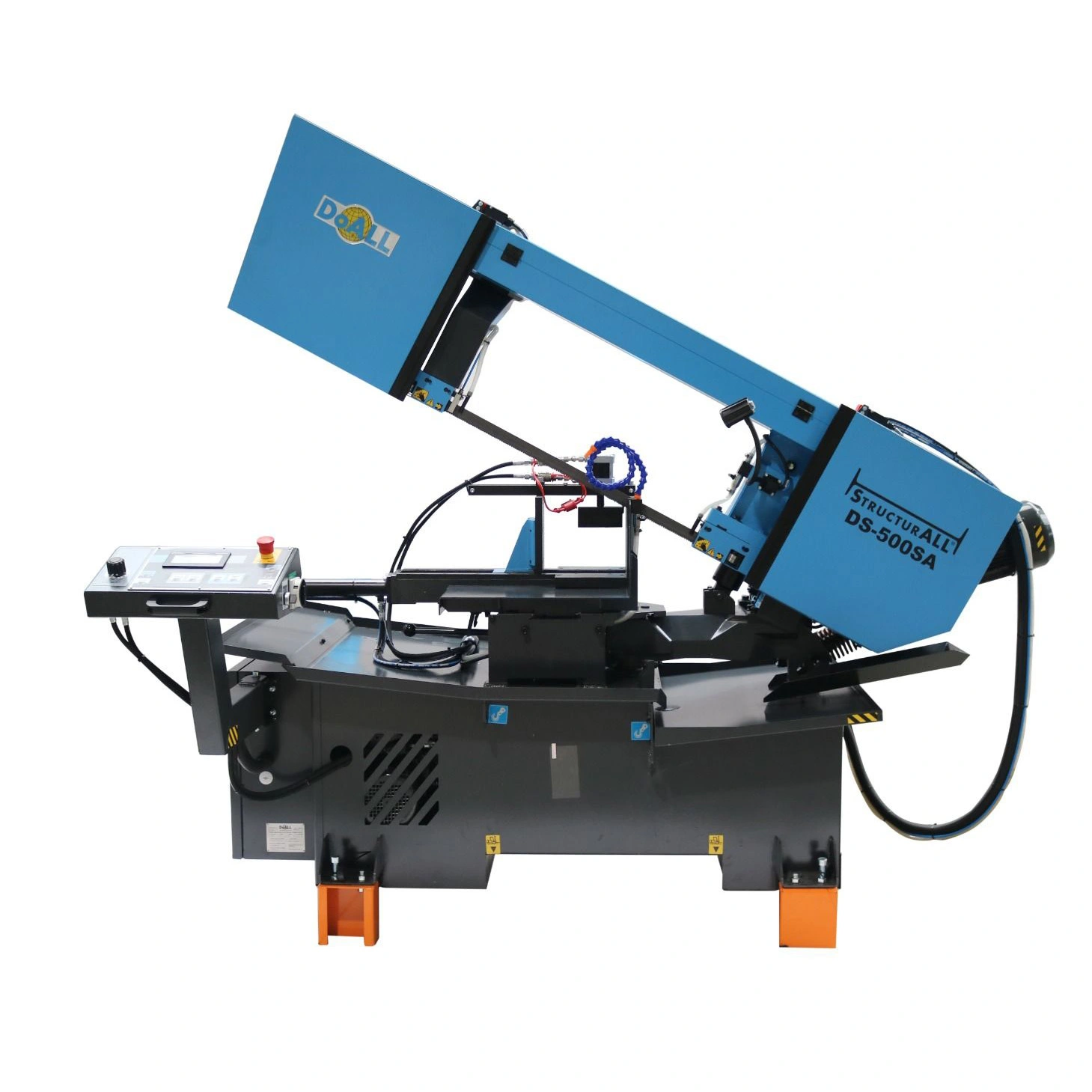

The 13″ x 19.5″ New DoAll Horizontal Band Saw Model DS-500SA semi-automatic, dual-miter metal-cutting band saw is designed for cutting material both linear and at angles.
Also classified as a horizontal “scissor saw,” the DS-500SA is ideal for machine shops, metal service centers, repair facilities and industrial manufacturing plants that need to cut structural metal, tube and profile material. Miter angle cuts are possible up to 60° left and right, making the DS-500SA an invaluable addition to your team.
A Mitsubishi digital readout comes as standard and makes it easy to verify exact cutting angles and set operation parameters. The operator is also removed from the saw blade and moving parts during the cut — providing additional safety and comfort.
13″ x 19.5″ New DoAll Horizontal Band Saw Model DS-500SA Specifications:
13″ x 19.5″ New DoAll Horizontal Band Saw Model DS-500SA Features:
Operator Control Console: Control Console can be positioned for operator comfort and safety ensuring hands are away from the blade at band start.
Mitsubishi Touch Screen Panel: The touch screen control panel displays the cutting cycle indicator, blade tension indicator, BRP (overfeed protection) function, band speed, head angle, band drive amp load and a list of error messages allowing the operator to monitor machine functions.
Saw Head Design: The robust head is mounted at a 2-degree slope which decreases tooth load at the end of the cut increasing band life.
Direct Driven Band Drive: Drive is comprised of an electric VFD controlled motor transferring power thru a gear reduction unit directly to the drive wheel eliminating belt slippage and giving positive torque to the saw blade.
Semi-Automatic Cycle: Programmable cycle allows the operator the ability to control hydraulic on-off, saw head movement after the cut, head raise limit through programmable set point, band drive on-off, and vise clamp-unclamp after the cut maximizing productivity.
Automatic Overload Feed Protection: BRP function monitors band drive motor amperage stopping head fall when operator set parameter is reached signaling overfeed or a dull saw band.
Band Wheels: Cast steel wheels ensure band tracking and long life.
Hydraulic Clamping Vise: Full stroke, hydraulic vise can be positioned on either side of band allowing maximum clamping close to the cut line eliminating material movement and tooth strippage.
Manual Blade Tension: Illuminating indicator prevents the possible error of over/under tightening the band for maximum cutting rates and band life.
Band Brush: Driven band brush removes the chips from the blade gullets which would prevent the blade from attaining maximum cutting rates and blade life.
Counter Balance Spring: Counterbalance springs maintain constant head weight throughout the cut keeping the blade tooth load equal aiding in maximum blade life.
Head Turn Table: Manual position of the saw head is accomplished by releasing the lock mechanism and rotating the head to the desired angle monitored on the digital display. The machine is equipped with a spring-loaded detent for zero position allowing for decreased setup time.
Warranty: One year parts and service subject to terms and conditions. Optional ten year warranty is available.
13″ x 19.5″ New DoAll Horizontal Band Saw Model DS-500SA Standard Equipment:
Dual swivel head to 60 left to 60 degrees right
Semi- Automatic cycle
Movable control console
Rapid head down approach
Carbide faced saw guide inserts
Programmable material height sensor
Full stroke hydraulic vise
Driven band cleaning brushes
Infinite band speed controlled by variable frequency drive
Heavy duty counter balance springs
Cast Steel band wheels
Fine adjustment head feed control
Spring loaded detent positioning
Manual band tension
Recirculating coolant system
Mist band lubricator system
Digitally displayed angle position
Variable Vise Pressure
2 degree cant design
Saw blade guards
Band door interlocks
Operation and parts manuals on USB stick
Recommended band speed chart
One (1) complimentary DoALL Bi-Metal saw blade
Complimentary DoALL Cutting Fluids package
13″ x 19.5″ New DoAll Horizontal Band Saw Model DS-500SA Optional Accessories:
Cutting capacity round tube 90°: 14″
Cutting capacity round solid 90°: 7″
Cutting capacity rectangle 90°: 13″ x 19.5″
Capacity round at 45°: 14″
Capacity round solid at 45°: 5″
Capacity rectangle at 45°: 8.5″ x 17″
Capacity round at 60°: 11.75″
Capacity round solid at 60°: 3″
Capacity rectangle at 60°: 8.5″ x 12″
Saw blade (width x length): 1 1/4″ x 188″
Motor Hp: 4 Hp
Band speed: 65-328 fpm
Band tension: Manual
Motor Hp: 0.5 Hp
Reservoir Size: 3 gallon
Flood: Yes
Mist lubricator: Yes
Motor HP: 0.6 Hp
Reservoir size: 5 gallon
Length per stroke: N/A
Maximum index strokes length: N/A
Remnant length: N/A
W x L x H: 114″ x 43″ x 56″
Material pass height: 32″
Machine weight: 1,631 lbs
Voltage requirement (Wye configuration) (Must specify at Order Placement): 230V or 460-6-60Hz-3ph
Total amp draw (FLA): 230V – 14 amps
460V – 7 amps
