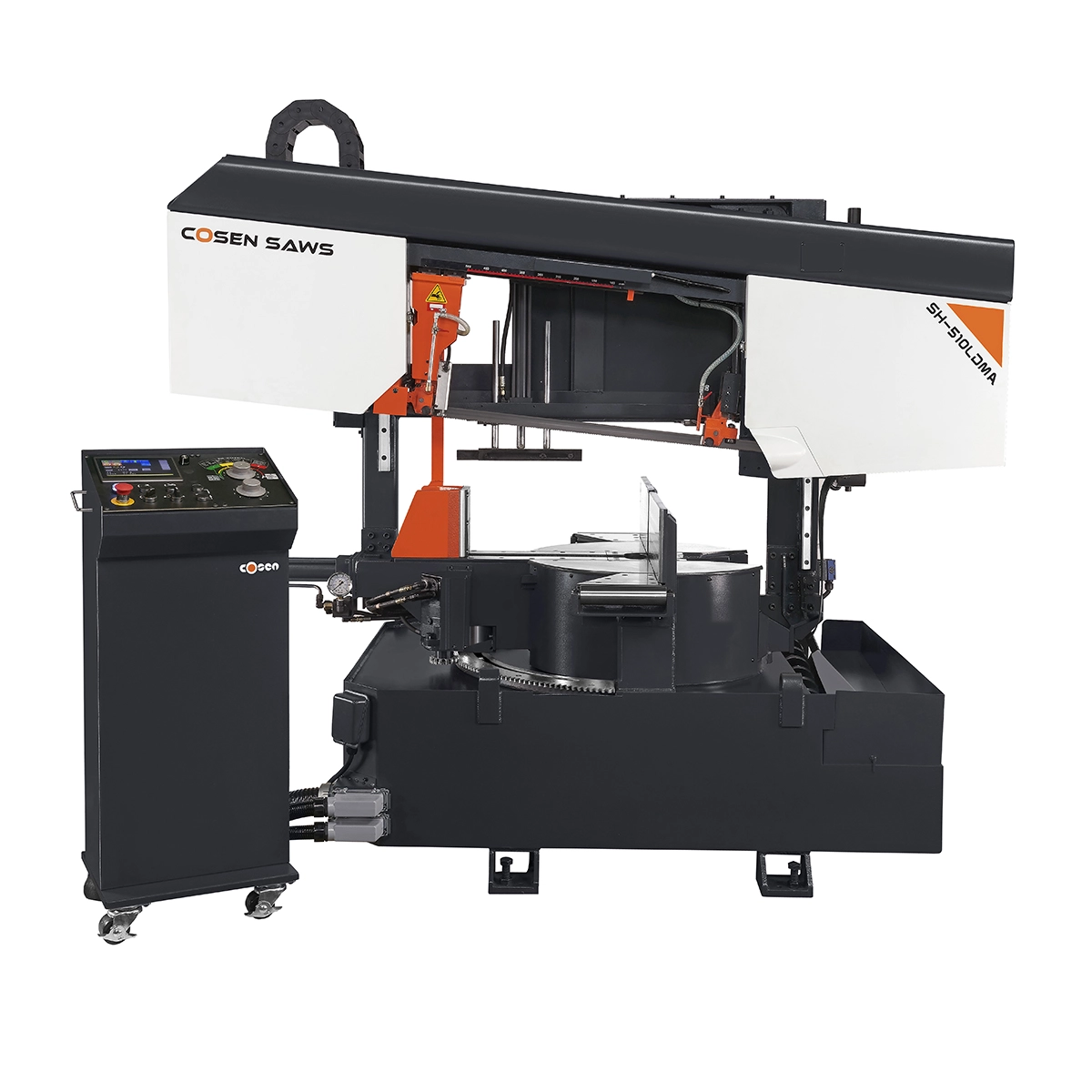

NEW COSEN SH-510LDM
Overview
Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw machine. With its rigid construction and superior features, 13″ x 20″ New Cosen Horizontal Band Saw Model SH-510LDM fits into that category. This heavy duty band saw offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment.
13″ x 20″ New Cosen Horizontal Band Saw Model SH-510LDM Specifications:
13″ x 20″ New Cosen Horizontal Band Saw Model SH-510LDM Features:
High precision linear guide way design
Heavy-duty cast iron swivel center features straight cutting and miter cuts (60 degrees)
Gearbox designed to accept high lateral pressure (no thermal distortion) ard-stops at 45 and 60 degrees for quick angle set up
Adjustable flood coolant system
Motor driven, synchronized wire blade brush
Carbide blade guides and bearing provides additional blade support
Cast-iron guide arms
Cast-iron hydraulic vise which synchronizes movement with guide arm
Specs
Maximum Cutting Capacity Round 0˚ angle: 12.6″
Maximum Cutting Capacity Round +45˚ angle: 12.6″
Maximum Cutting Capacity Round +60˚ angle: 7.9″
Maximum Cutting Capacity Rectangular 0˚ (HxW): 13″ x 20″
Maximum Cutting Capacity Rectangular +45˚ angle (HxW): 13″ x 12.6″
Maximum Cutting Capacity Rectangular +60˚ angle (HxW): 13″ x 7.9″
Blade Speed: 82-328 FPM
Blade Size (LxWxT): 16’3″ x 1.25″ x .043″
Blade Motor: 3 H.P.
Hydraulic Motor: 1 H.P.
Coolant Motor: 1/8 H.P
Workbed Height: 30.7″
Weight: 3097 lbs
Floor Space (LxWxH): 97″ x 100.4″ x 80.7″
