1.5hp drive motor, heavy-duty reducer, & variable step drive assembly
Double miter saw frame for adjustable left or right angles
Feed down cylinder
2 – speed motor with worm gear driven gear box, worm shaft is hardened and ground
Bi-metal saw blade
Blade tension gauge system
Coolant system
Machine stand with door
Operation & parts manual
Two (2) year limited warranty
Voltages 230v/3ph all other voltages may require a transformer or special order

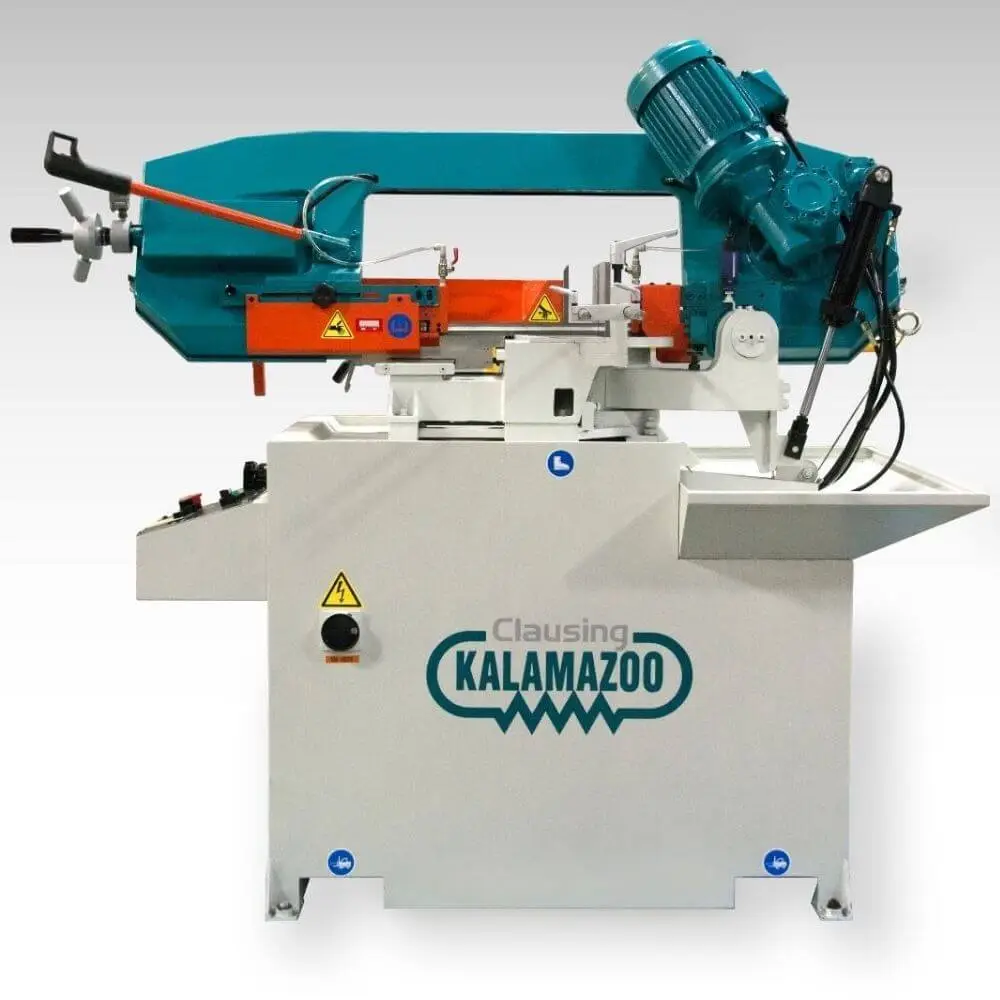

Type: Horizontal double miter wet cut
Drive motor: 1.5 Hp
Blade (W x T x L): 1″ x 0.035″ x 120.3″
Blade speed: 118-236 fpm
90º cutting capacity: Round 10.2″
Square 7.9″
Rectangular 13.8″ x 7.9″
+45º cutting capacity: Round 7.9″
Square 7.9″
Rectangular 8.7″ x 7.9″
-45º cutting capacity: Round 7.9″
Square 7.9″
Rectangular 9.1″ x 7.9″
+60º cutting capacity: Round 5.5″
Square 5.5″
Rectangular 5.5″ x 5.5″
Floor to table height: 39.5″
Floor space: 63.4″ x 39.4″ x 64.5″
Work bed height: 39.4″
Net weight: 792 lbs.
Shipping weight: 900 lbs.
Shipping dimensions: 70″ x 45″ x 71″
