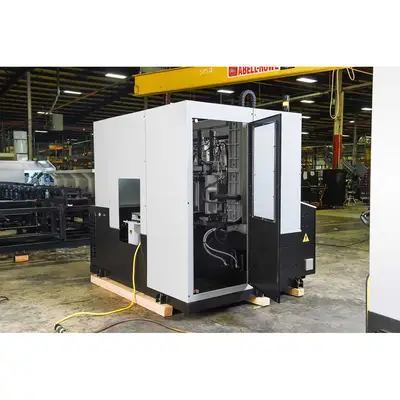

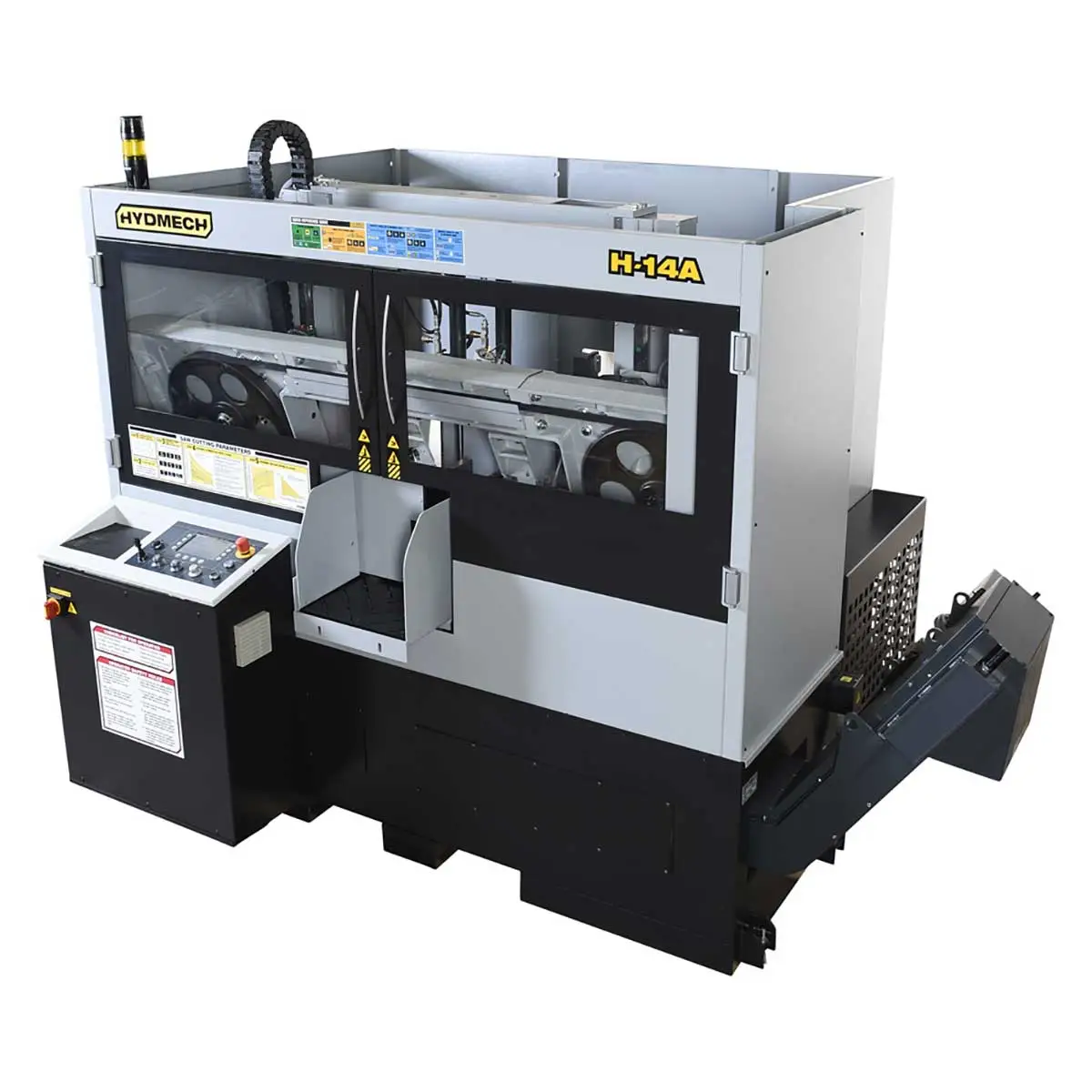

NEW HYD-MECH H-14A

14” x 14” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-14A Specifications:
Standard Features:
Heavy-duty cast iron saw head
Spilt front vise

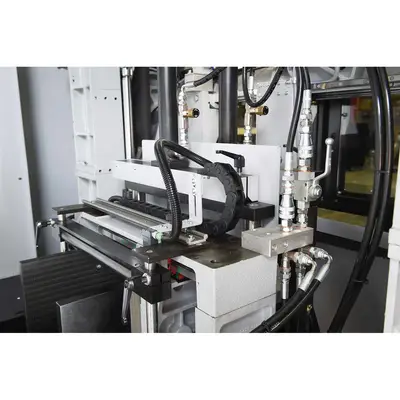

Cast iron shuttle features automatic multi-indexing up to 24” in a single stroke with automatic kerf compensation. Powered by ball screw and stepper motor.
On-demand hydraulics save energy

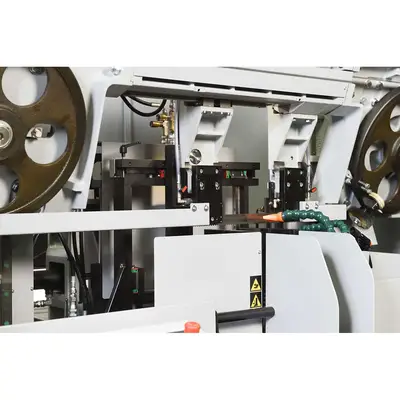

Steel guide arms mounted on linear rails. Hydraulically powered idler side guide arm is adjustable for proper spacing.
8.8 HP VFD. True direct blade drive – no belts/pulleys

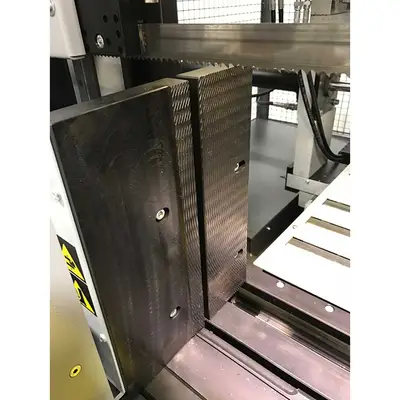

Full capacity, full stroking hydraulic vises
Hydraulic positive down feed
Blade chamber separates material from cut part
Cast iron band wheels
Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue.
Replaceable blade brush
Robust steel base
Automatic chip removal conveyor
Easy access electrical panel and hydraulics
Variable vise pressure
Blade breakage switch
Blade deviation monitor
Designed for safety with saw-in-a-box style
Out of stock switch
Electronic band tensioning with digital readout
Replaceable carbide guide inserts
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light

14” x 14” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-14A Optional Features:

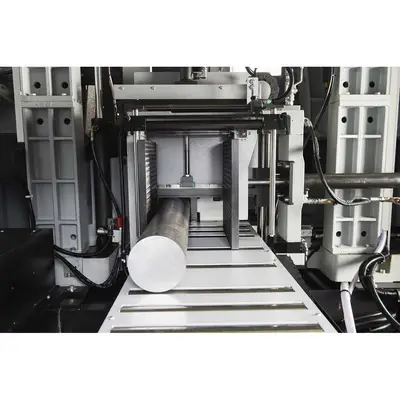

Full capacity hydraulic overhead bundling-overhead bundling increases remnant length to 11” and reduces shuttle stroke to 21.5”
High blade speed
Mist lubrication
Power transformers
Vertical rollers
Short remnant of 0.98”-cannot use option with overhead bundling
Idler conveyors
Powered conveyors
14” x 14” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-14A Optional Accessories:

90° rectangle (h x w): 14″ x 14″
90° round: 14″
90° square: 14″
Blade Drive: 8.8 HP VFD
Blade Speed: 49-380 (50-660- Optional Power transformer-required) SFM
Blade Size: 1.25″ x 15′ 2″
Automatic Multi-Indexing: 0-24″
Table Height: 34″
Voltages Available: 480 v (208, 240 or 575 Optional Power transformer-required)
Weight: 6,172 lbs
Dimensions (w x l x h): 88″ x 63″ x 78″
Coolant Tank Capacity: 53 Gallons
Remnant Length: 4.7″ (11″ w/OH bundling)
