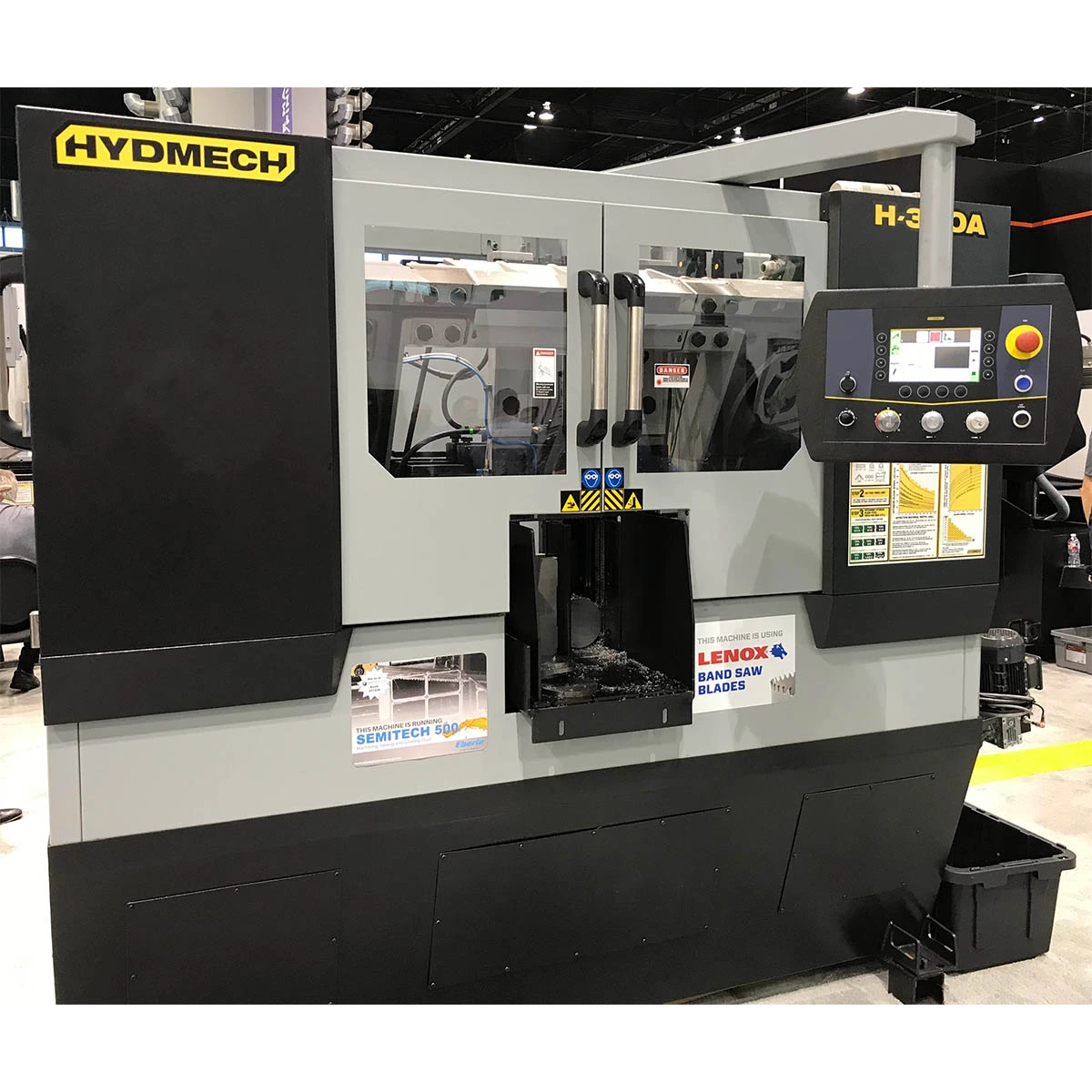

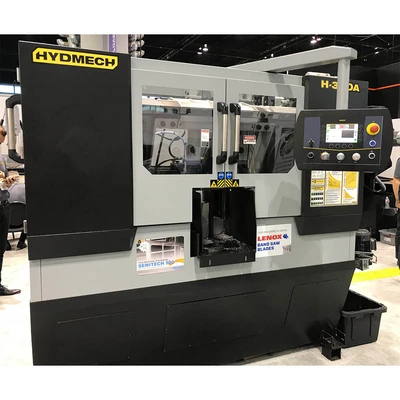

NEW HYD-MECH H-360A

14″ x 14″ New HydMech Horizontal Band Saw Model H-360A Specifications:
14″ x 14″ New HydMech Horizontal Band Saw Model H-360A Standard Features:
Heavy duty cast iron saw head
Split front vise
Fabricated shuttle features automatic multi-indexing up to 23” in a single stroke. Powered by ball screw and stepper motor.
On-demand hydraulics save energy
Steel guide arms mounted on linear rails. Auto adjustable guide arm for proper spacing.
6 HP VFD. True direct blade drive – no belts/pulleys
Reversible chip auger
Full capacity, full stroking hydraulic vises
Hydraulic positive down feed

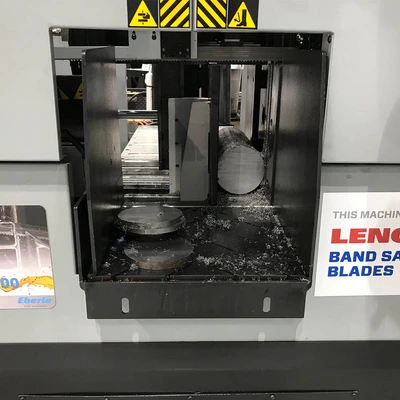

Blade chamber separates material from cut part
Cast iron band wheels

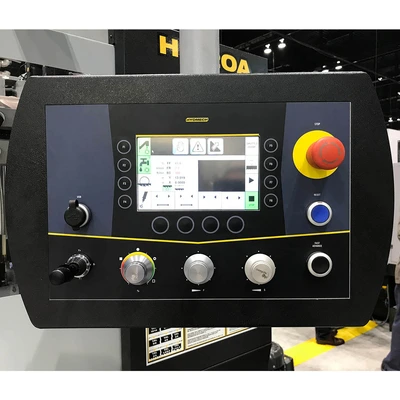

Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue.
Replaceable blade brush
Robust steel base
Easy access electrical panel and hydraulics
Blade breakage switch
Blade deviation monitor
Designed for safety with saw-in-a-box style
Out of stock switch
Mechanical band tensioning with digital readout
Replaceable carbide guide inserts
Safety door interlocks RFID technology
Flood coolant with wash down hose
Laser light
LED work light
Variable vise pressure

14″ x 14″ New HydMech Horizontal Band Saw Model H-360A Optional Features:
Full capacity hydraulic overhead bundling
Mist lubrication
Power transformer
Vertical rollers
Idler conveyors
Powered conveyors

14″ x 14″ New HydMech Horizontal Band Saw Model H-360A Optional Features:

90° rectangle (h x w): 14″ x 14″
90° round: 14″
90° square: 14″
Blade Drive: 6 HP
Blade Speed: 49-380 SFM
Blade Size: 1.25″ x 14′ 9″
Automatic Multi-Indexing: 0-23″
Table Height: 34″
Voltages Available: 480 v (208, 240, 575 optional power transformer required)
Weight: 4,400 lbs
Dimensions (w x l x h): 106″ x 71″ x 80″
Coolant Tank Capacity: 53 Gallons
Remnant Length: 1.8″ (10″ with bundling)
