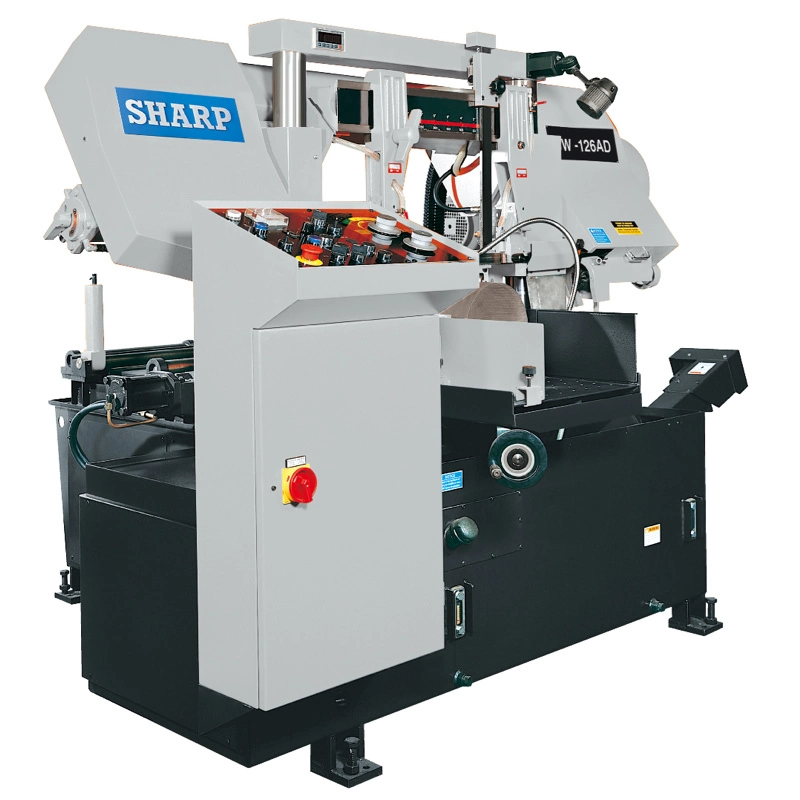

This is a semi automatic miter saw with saw frame that can swivel 0° to 60° for cutting work pieces. Angle change is facilitated by pivot system for accurate angle cuts. It is equipped with full stroke hydraulic vise clamping and easy to operate control panel.
5” round, 15” x 25.5” rectangular cutting capacity (90°)
7” x 9.8” rectangular (60°)
7” round, 15.7” x 15.7” square (45°)
8” round (30°)
5 HP motor, wt. 3,300 lbs
Coolant system
Auto saw arm return to preset height at end of cut to facilitate next cut.
4 step blade speeds with worm gear speed reducer operated with a toggle clamp device.
Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life.
Synchronized blade brush to remove chips from blade gullet
Adjuster stock stop
Manual blade tension adjustment
Easy blade change with front access at wait level
Adjustable mechanical material stop
Bi-Metal saw blade
Coolant system
Tools leveling pads and additional wire brush
Infinite variable speed device
2M roller table
1M roller table
Round: 0°: 16.5″
45°: 15.7″
60°: 9.8″
Square: 0°: 15.7″ x 26″
45°: 15.7″ x 15.7″
60°: 15.7″ x 9.8″
Rectangular (H x W): 0°: 14.9″ x 25.5″
45°: 15.7″ x 15.7″
60°: 15.7″ x 9.8″
Speed: 66 ~ 330 fpm
Size: 208.6″ x 1.34″ x 0.04″
Tension: Spring Loaded
Cleaning: Powered Wire Brush
Saw Blade: 5 HP
Hydraulic: 1 HP
Coolant: 1/8 HP
Vise Control: Full Stroke Cylinder Vise
Table Height: 29.52″
Gross Weight: 3,300 lbs
Floor Space (L x W x H): 90.5″ x 114″ x 98.4″
