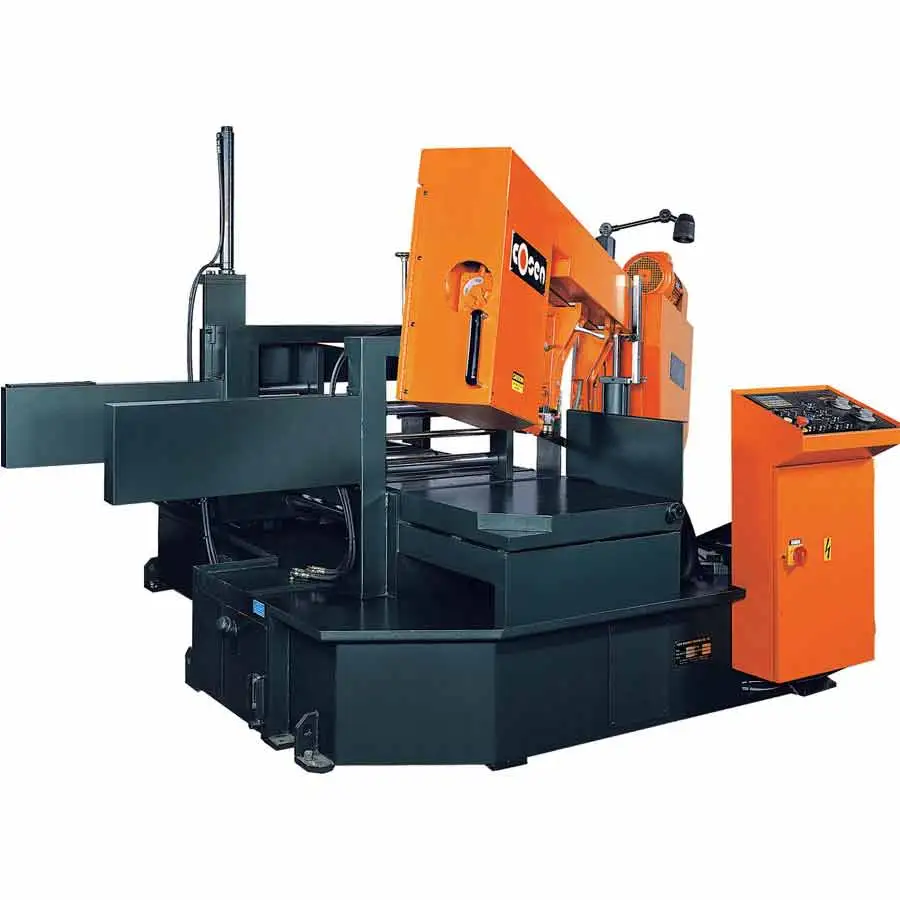

The New Cosen Horizontal Band Saw Model C-650MNC comes equipped with Smart NC-100 (SNC-100) technology which provides most of the benefits of NC controlled saws at a mere fraction of the cost. SNC-100 controls are programmable up to 100 different jobs including quantity and length of cut. The controls automatically compensate for Kerf loss after data input and requires no manual calculation of number of times to index. Rugged, dependable, and advanced technology, are all words that describe Cosen’s C-510MNC production machine, making it the perfect saw for mass fabrication production settings.
Features:
Allows for straight cutting and miter cutting from 0 to 60 degrees
Hydraulic cylinder supports the saw head with ball joint
Gearbox designed to accept high lateral pressure (no thermal distortion)
Inverter blade drive system which allows infinitely variable blade speeds
5.7″ HMI touchscreen
Adjustable flood coolant system
Motor Driven, synchronized wire blade brush
Carbide blade guides and bearings provide additional blade support
Rigid cast-iron guide arms
Automatic hydraulic blade tensioning device
Cast-iron hydraulic vise
Save-A-Blade feature
Precision feed pressure and feed rate dual valve system for optimal cutting performance
Computer controlled multiple indexing up to 999″ max length
Maximum Cutting Round Capacity 0˚: 16.5″
Maximum Cutting Round Capacity +45˚: 16″
Maximum Cutting Round Capacity +60˚: 10″
Maximum Cutting Rectangular Capacity 0˚: 15″ x 25.6″
Maximum Cutting Rectangular Capacity +45˚ (H x W): 16″ x 16″
Maximum Cutting Rectangular Capacity +60˚ (H x W): 16″ x 10″
Automatic Indexing Length: 31.5″ , 256″ max
Blade Speed (Variable): 66-330 FPM
Blade Size (LxWxT): 17′ 5″ x 1.5″ x 0.05″
Blade Motor: 7.5 H.P.
Hydraulic Motor: 2 H.P.
Coolant Motor: 1/8 HP
Machine Weight: 6613 lbs.
Workbed Height: 29.5″
Floor Space (LxWxH): 114″ x 142″ x 98.4″
SKU#: 21077
