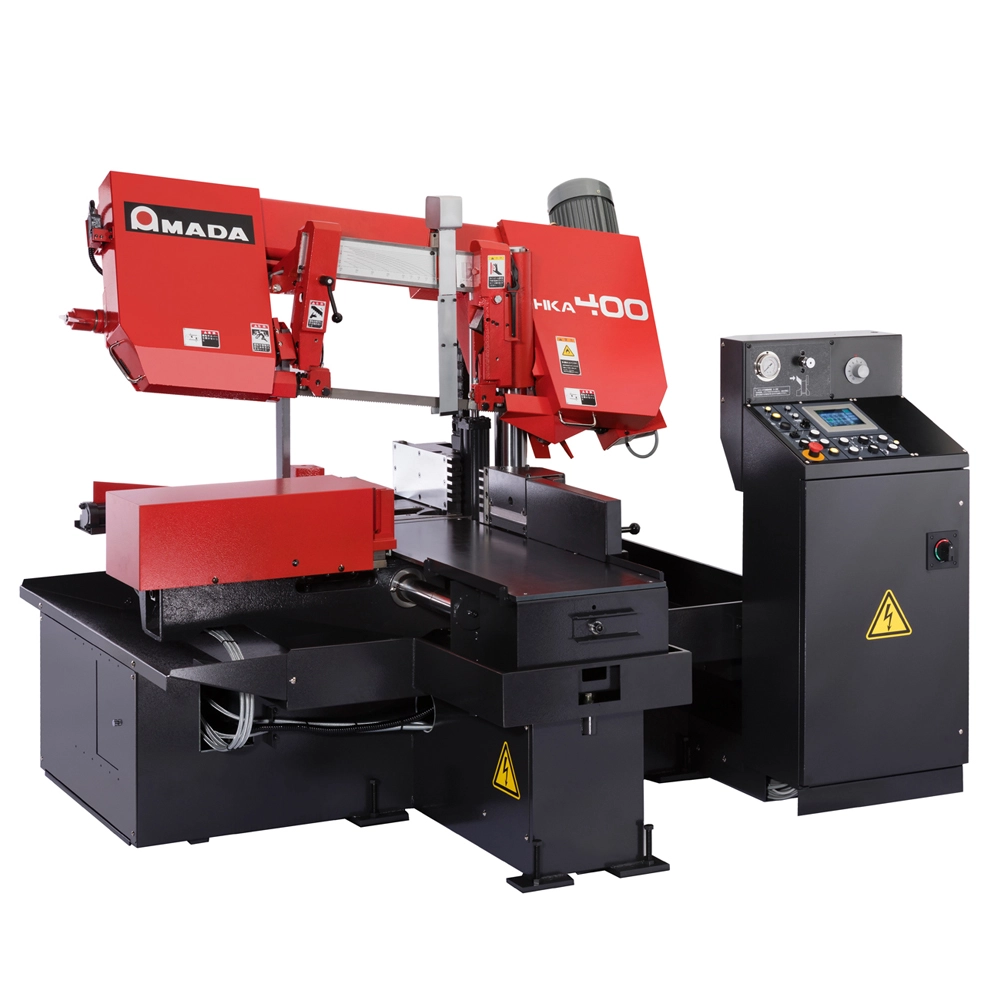

NEW AMADA HKA400

16” x 11” New Amada Horizontal Mitering Band Saw Model HKA400 Specifications:

16” x 11” New Amada Horizontal Mitering Band Saw Model HKA400 Standard Features:
Saw Head Frame: The rigid ‘C’ section frame carries the mountings for the two band wheels, heavy-duty worm drive gear reducer, the band drive motor and saw guide arm mounting supports.
Band Wheels & Drive System: The inverter-controlled band drive motor is directly coupled to the worm gear reducer eliminating friction losses of a variable speed pulley drive. The drive wheel transmission is designed and manufactured by Amada to provide a high-efficiency speed reduction, which requires no external cooling to deliver more power to the drive wheel. Band speed is set using the band speed adjustment knob on the control panel.
Canted Head and Single Column Mounting: The head is canted 8° to enable the machine to cut rolled sections e.g. I beams or rectangular tubing at significantly faster rates because the blade is never in full contact with the horizontal section of the material. The single-column mounting enables the saw guides to be much closer together compared to scissor-type machines which improve the cutting performance.
Full Stroke Clamping Vise: The full stroke clamping vise reduces the operator’s setup time for different widths of material.
Manual Vise Inching Control: The vise inching control enables the operator to more accurately locate the workpiece for the cut because he can inch the vise until it is just touching the material but not clamped hard. Then with the help of the shadow line projector, make any small adjustment to the position to produce the desired cut.
Guarding: The saw band is constrained within the heavy gage guarding in all non-cutting areas.
Direct Drive
Full Stroke Vise
8º Saw Head Cant
60º Miter Capability
Light Beam Marking
Inverter Blade Speed Control
Post Construction Type Saw Head
Auto Index, Only at 90º

16” x 11” New Amada Horizontal Mitering Band Saw Model HKA400 Optional Features:
Roller Table 6′
Roller Table 10′
Vertical Clamp
Extended Warranty: Regular 1 year + Additional 1 year = Total 2 years

Round (diameter) at 90°: 12.6″
Round (diameter) at 45°: 8.9″
Round (diameter) at 60°: 3.9″
Rectangle (W x H) at 90°: 16″ x 11″
Rectangle (W x H) at 45°: 8.9″ x 11″
Rectangle (W x H) at 60°: 3.9″ x 11″
Work Load Capacity: 880 lbs
Blade Size (L x T x W): 12’9″ x 0.042″ x 1-1/4″
Blade Speed: 100-325 ft/min by Inverter
Tension Control: Manual-Split Clutch
Top Limit Setting: Automatic Setting with Quick Approach Feeler
Cutting Control: Hydraulic Flow Control Valve
Type: Front and Main Vise
Control: Hydraulic Full-Stroke Cylinder
Saw Blade: 3 HP
Cutting Fluid Pump: 1/16 HP
Hydraulic Pump: 1 HP
Power Supply Voltage: AC220V±10%, 3 PH, 60 Hz, All Other Voltages Require Transformer
Power Requirement: 10.7 kVA
Tank Capacity: 10.7 gal
Pump Type: Electric
Tank Capacity: 10.7 gal
Pressure Setting: 391 psi
Chip Disposal: Manual
Index Mechanism: Shuttle Vise
Stroke: 15.7″
Length: 2.4″ – 39.3″
Number of Input Station: 99
Number of Cut-Off Pieces: 1-9999
Remnant Length: 2.8″ Plus Length of Parts
Head-Up Position: 87.4″ x 89.3″ x 73.4
Head Down Position: 87.4″ x 89.3″ x 65.4″
Table Height: 30.3″
Machine Weight: 3,528 lbs
