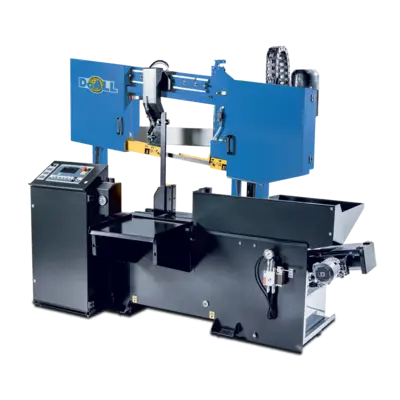

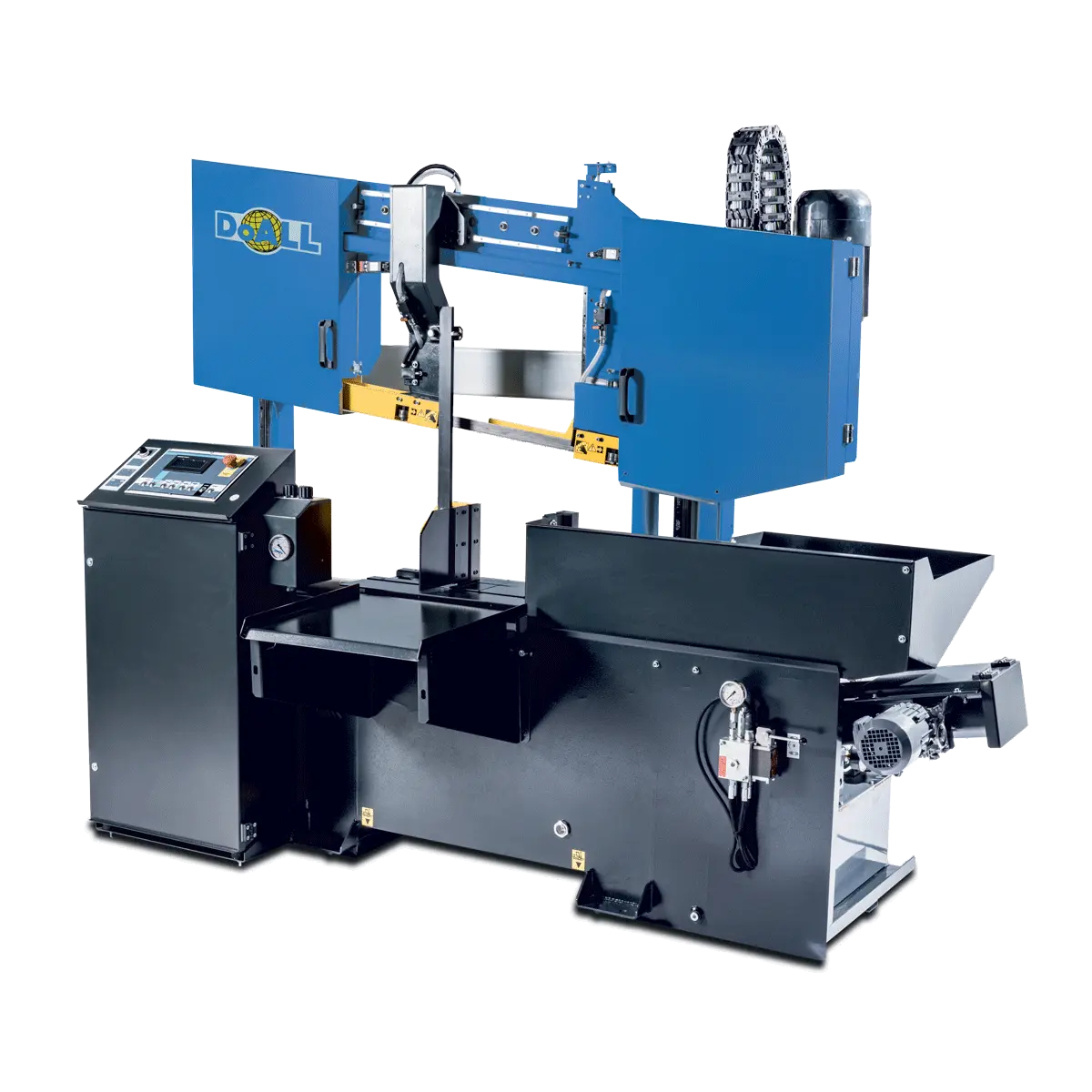

NEW DOALL TDC-400SA

The DoALL Olympia™ TDC-400SA is a semi-automatic dual column, metal-cutting band saw specially designed to cut standard tube and pipe. The TDC-400SA offers bundling to save time and money in high production environments like metal service centers. Also classified as a horizontal power specialty tube cut-off saw, the TDC-400SA ships with a work light, work height sensor and discharge chute.A large variety of optional accessories are available to customize the machine for specific sawing requirements.
New DoALL Horizontal Band Saw Model TDC-400SA Specifications:

New DoALL Horizontal Band Saw Model TDC-400SA Standard Equipment:
Mitsubishi saw control
Variable frequency drive
Work light
Pulley-driven, band brush
Automatic guide arm setting
Work height sensor
Overfeed protection
Variable vise pressure control
Discharge chute
Hydraulic band tension
Worm chip conveyor
Flood coolant
Tool kit
Complimentary DoALL cutting fluids package
One DoALL bi-metal saw blade
Instruction and parts manuals on CD or USB data stick
Optional Accessories:
Mist-style saw band lubrication … $1,535.00
Laser line generator … $1,075.00
Worm chip conveyor for long stainless chips (includes BOX-TRI) … $2,000.00
Feed rate indicator … $950.00
3.3 ft (1000mm) Input or output conveyor with drip pan /gutter – 17.75″ (450mm) cylinder width – 672 lbs/ft (1000kg/m) capacity … $1,625.00
6.6 ft (2000mm) Hydraulic lift conveyor with separate controller – 17.75″ (450mm) cylinder width – 672 lbs/ft (1000kg/m) capacity … $7,370.00
Hydraulic front vise nesting – Set of 2 pieces … $2,060.00
Power-driven band brush … $3,000.00
6.6 ft (2000mm) Mechanical work stop extension for the OZP … $330.00
6.6 ft (2000mm) Powered work stop – Requires RDM for operation … $1,646.00
6.6 ft (2000mm) Powered work stop with digital display – Requires RDM … $2,716.00
6.6 ft (2000mm) Powered work stop extension for the OZS … $494.00
6.6 ft (2000mm) Input or ouput conveyor with drip pan/gutter – 17.75″ (450mm) cylinder width – 672 lbs/ft (1000kg/m) capacity … $1,995.00
6.6 ft (2000mm) Output conveyor for angle cutting with drip pan/gutter – 17.75″ (450mm) cylinder width – 672 lbs/ft (1000kg/m) capacity … $2,240.00
6.6 ft (2000mm) Input or output filler conveyor with drip pan/gutter – 16.5″ (420mm) cylinder width … $775.00
Additional conveyor rollers for RDT … $230.00
Single fixed vertical guide roller – 11″ (280mm) height – attaches to RDT … $285.00
Single adjustable vertical guide roller – adjusts up to 17.75″ (450mm) – 11″ (280mm) height … $420.00
Single adjustable horizontal conveyor roller – 470 lbs/ft (700kg/m) capacity … $895.00
6.6 ft (2000mm) Mechanical work stop with ruler … $780.00
6.6 ft (2000mm) Mechanical work stop with digital display … $1,905.00
6.6 ft (2000mm) Mechanical work stop extension for the OZP … $345.00
Chip pan with drain … $535.00
Handle for chip box … $105.00
Cut piece collection box with drain … $520.00
Wear parts service kit … $520.00
Magnetic wand chip remover … $160.00
Additional digital copy of manuals on CD or USB data stick … $75.00
Start-up kit – includes 6 genuine DoALL blades, Vernier caliper, heavy-duty work gloves, refractometer, work apron, safety glasses, squeegee, magnetic wand chip remover and ball cap … $1,250.00

Cutting Capacity Round Tube: 16″ (400mm)
Cutting Capacity Rectangle: 16 x 16″ (400x400mm)
Maximum Bundle Capacity: 15.8″ x 13.4″ (400x340mm)
Minimum Bundle Capacity: 1.2″
Band Saw Blade Width: 1-1/4″ x 0.042″ (34×1.1mm)
Maximum Blade Length: 178″ (4520mm)
Remnant Length Drop: 2″
Band Speed: 65-328 fpm (20-100mpm)
Band Drive: 4 hp (3kW)
Hydraulic Pump: 1 hp (0.75kW)
Coolant Pump: 0.12 hp (0.09kW)
Coolant Tank Capacity: 16 gal (60 lit)
Material Pass Line Height: 31-1/2″ (800mm)
Machine Weight: 2072 lbs (940kg)
Dimensions W x L x H: 63 x 41 x 81″ (1600x1030x2050mm)
SKU: 1829
