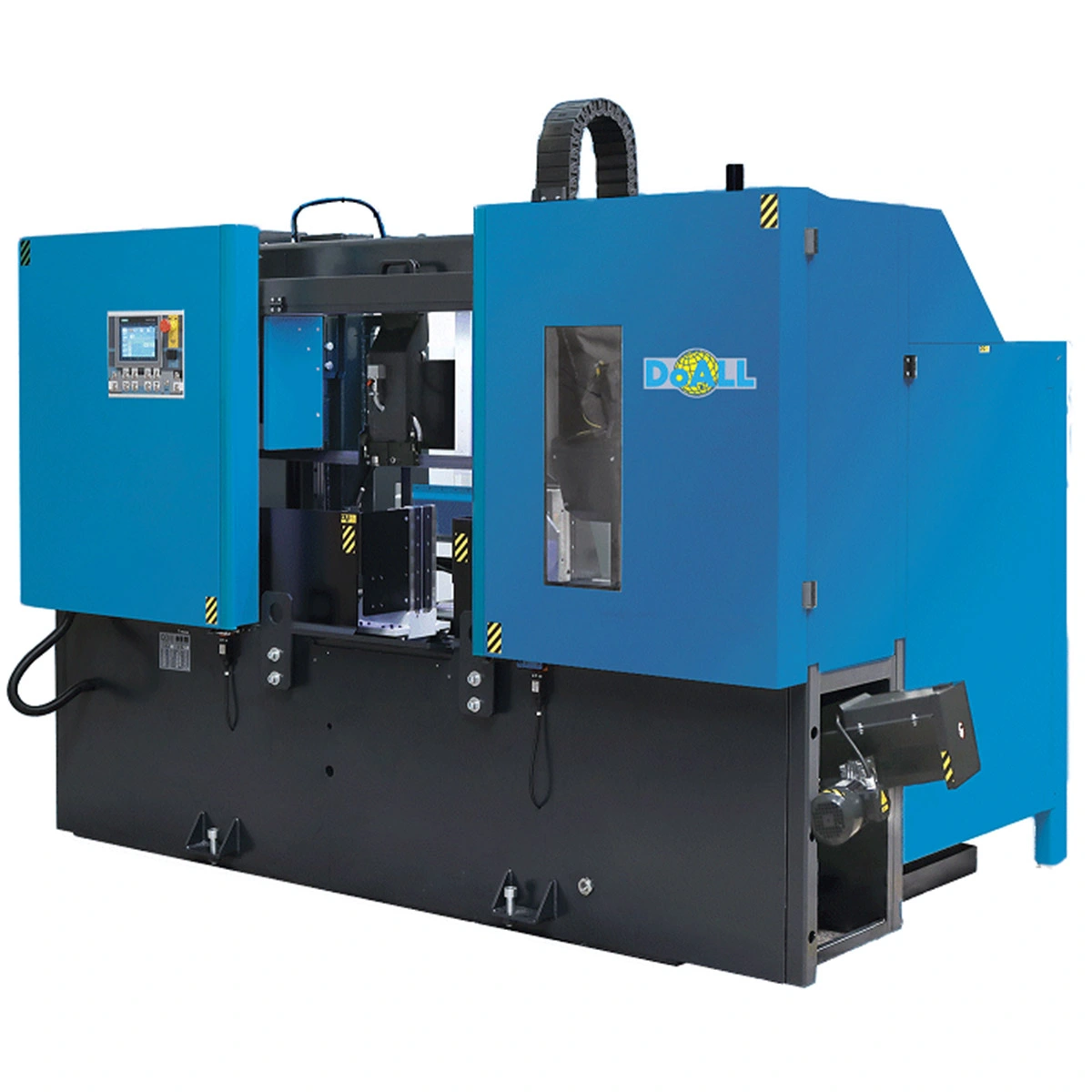

NEW DOALL DC-400CNC

new

Welcome to Equipt
Log in or Sign up
Your Cart
You don't have any items in your cart.
NEW DOALL DC-400CNC

NEW DOALL DC-400CNC

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Horizontal Dual Column Band Saws
Manufacturer:
DOALL
Model:
DC-400CNC
Stock #:
17054
Description

The DC-400CNC high production, horizontal CNC band saws from DoALL are highly efficient, automatic, hydraulically controlled machines with multiple material feeds. Designed for vertical cuts, the DC-400CNC is ideal for serial production in industrial settings. Thanks to the robust construction of the DC-400CNC, it is possible to cut a wide range of full and profile materials including stainless and tool steel. In addition, the “box” or enclosed design provides very safe operation.
16″ x 16″ New DoAll Horizontal Band Saw CNC Model DC-400CNC Specifications:
16″ x 16″ New DoAll Horizontal Band Saw CNC Model DC-400CNC Standard Equipment:
Colored Siemens touch screen
Automatic & semi-automatic cycle
Worm chip conveyor for long chips
Rapid head down approach
Carbide faced saw guide inserts with lead in bearings
Programmable material height sensor
Full stroke hydraulic vises
Electric driven band cleaning brush
Infinite band speed by variable frequency drive
Split front vise
Cast steel band wheels
Programmable modified metered feed system
Dual acting index vise jaws
Laser edge finder
Programmable blade break-in cycle
Hydraulic band tension
Recirculating coolant system
Variable Vise Pressure
LED work light
Saw blade guards
Band door interlocks
Automatic retraction of material in cycle for protection of carbide blade
Automatic guide arm setting
Band deviation monitor
Operation and parts manuals on USB stick
One (1) complimentary DoALL bi-metal saw blade
Complimentary DoALL cutting fluids package
Optional Accessories:

Specifications

Capacity at 90° rectangle: 16″ x 16″
Capacity at 90° round: 16″
Saw blade (width x length): 1.5″ x 219″
Motor Hp: 7.5 Hp
Band speed: 65-328 fpm
Band tension: Hydraulic
Motor Hp: 2 Hp
Reservoir size: 11 gallons
Flood: Yes
Mist lubricator: Opt
Motor Hp: 0.25 Hp
Reservoir size: 20 gallon
Length per stroke: 27.5″
Maximum index strokes length: 394″
Remnant length: 4.7″
W x L x H: 117″ x 82″ x 87″
Material pass height: 31.5″
Machine weight: 7,850 lbs
Voltage requirement (Wye configuration): 460V-60Hz-3ph
Total amp draw (FLA): 21 amps
