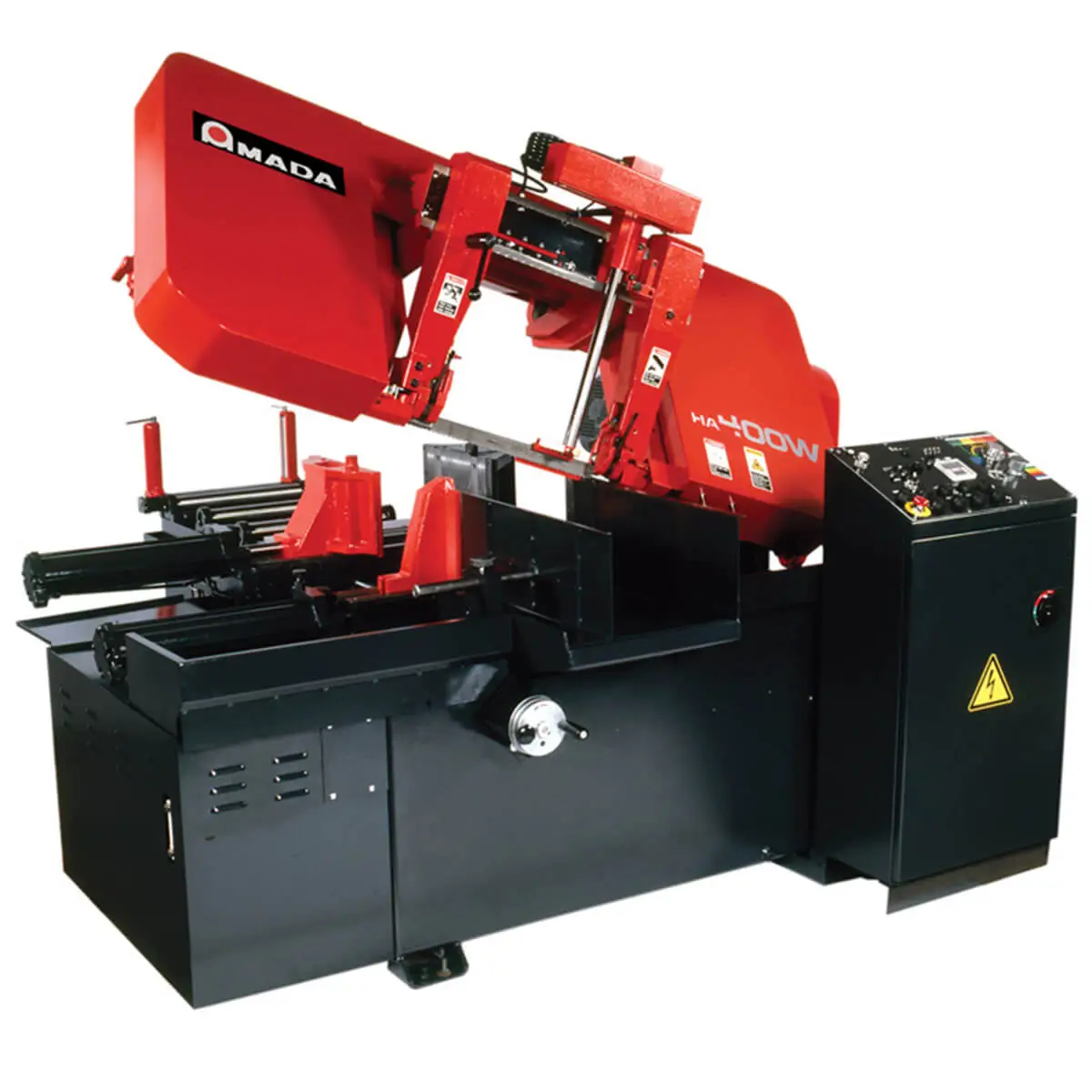

NEW AMADA HA400W

16″ x 16″ New Amada Horizontal Scissor Style Band Saw Model HA400W Specifications:

16″ x 16″ New Amada Horizontal Scissor Style Band Saw Model HA400W Features:
SAW HEAD FRAME: The rigid ‘C’ section frame carries the mountings for the two band wheels, heavy-duty worm drive gear reducer, the band drive motor, and saw guide arm mounting supports.
BAND WHEELS & DRIVE SYSTEM: The band wheels are cast iron for long, productive life. The deflection free 9.4 inch (240 mm.) wheel hubs ensure the wheels run true regardless of tension stress or cutting loads. The spindle assemblies incorporate tapered roller bearings for greater rigidity and long service life. The drive motor is coupled to the transmission through a variable speed pulley.
DRIVE WHEEL TRANSMISSION: The drive wheel transmission is designed and built by Amada to provide high efficiency speed reduction, which requires no external cooling, to deliver more power to the large diameter drive shaft. This shaft ensures that this developed torque is transferred to the blade with no strobing, enabling the machine to efficiently cut high alloys as well as free machining materials.
PRESSURE/FLOW FEED CONTROL: The independent pressure and flow controls in series ensure the optimum cutting rate can be obtained regardless of section or alloy being cut. The pressure control determines the cutting force applied to the blade and the flow control sets the maximum fall rate of the head. For example for difficult to machine materials the pressure is set higher than free machining alloys and the flow is set lower, as shown on the escutcheons above the above the control knobs.
MOTION DETECTOR: The wheel motion detector will turn off the blade drive in the case where a blade breaks or is jammed in the work piece. This feature also prevents premature wear on the drive wheel from a stalled band.
AUTOMATIC, POWERED CHIP CONVEYOR: The electrically powered chip conveyor auger automatically removes the saw chips from the saw while draining the cutting fluid back into the fluid reservoir. Hydraulic-powered shaftless chip conveyor for chip removal and coolant separation. The automatic chip conveyor greatly reduces cleanup time and enables the machine to run longer without operator cleanup.
9 TIMES MULTI INDEX: The machine control has the capability to make up to nine index passes, giving a maximum cut length of 141.7″ (3600 mm) for HA250W and 177″ (4500 mm) for HA400W in automatic mode.
SPLIT FRONT VISE: The work holding vise is split so that it clamps the workpiece on both sides of the cutting plane.
AUTOMATIC KERF COMPENSATING DIAL: On multiple index, the need to calculate for kerf loss has been eliminated.
INDEX FLOATING VISE: Indexing accuracy of +/- 0.004”/index. Both vise jaws open on the indexing vise to accommodate crooked bars and eliminate scoring the OD of finished bars.
MOTION DETECTOR: The wheel motion detector will turn off the blade drive in the event of a blade breaking or jamming in a workpiece. This feature also prevents premature wear on the drive wheel from a stalled blade.
ZERO CLAMP VISE
DIAGNOSTIC LIGHTS
PIECE COUNTER
VARIABLE BLADE SPEED DRIVE
BLADE BREAK LIMIT SWITCH
2 WAY-OPENING VISE (HA400W)
OPERATOR’S CONSOLE

16″ x 16″ New Amada Horizontal Scissor Style Band Saw Model HA400W Optional Features:
VERTICAL CLAMPS
VISE PRESSURE CONTROL
ROLLER TABLE 4′
ROLLER TABLE 6′
ROLLER TABLE 10′
STAGING TABLE 6’X4′
STAGING TABLE 10’X4′
EXTERNAL CHIP CONVEYOR
EXTENDED WARRANTY: Regular 1 year + Additional 1 year = Total 2 years
About Us
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, and Instagram.
Worldwide Machine Tool LLC.

Terms and Conditions: https://www.worldwidemachinetool.com/terms-conditions/
All product information including but not limited to price, specifications, color, photos, equipped with and features are subject to change.

Round (diameter): 1.18″ – 16.54″
Rectangle (W x H): 16.3″ x 16.3″
Work Load Capacity: 5,511 lbs
Blade Size (L x T x W): 15′ x 0.050″ x 1-1/2″
Blade Speed: 56-295 ft./min 60 Hz Stepless
Top Limit Setting: Automatic Setting with Quick Approach Feeler
Cutting Control: Hydraulic Pressure-Flow Control Valve
Type: Main and Rear Vises
Control: Hydraulic Full-Stroke Cylinder
Saw Blade: 7.5 HP
Hydraulic Pump: 2 HP
Cutting Fluid Pump: 1/4 HP
Power Supply Voltage: AC220V±10%, 3 PH, 60 Hz or
AC440V±10%, 3 PH, 60 Hz
Power Requirement: 11 kVA
Tank Capacity: 31.5 gal
Pump Type: Centrifugal Electric
Pump Capacity: 10.6 gal/min
Tank Capacity: 10.5 gal
Pump Type: Variable Discharge Vane Pump
Pump Capacity: 5.8 gal/min
Pressure Setting: 498 psi
Chip Disposal: Automatic Follow up Double Wire Brush with Wear Detection. Motor-Driven wide Scraper Type Chip Conveyor
Index Mechanism: AC Servo Motor
Stroke: 19.6″ (maximum 9 times index)
Length: 0.394″-177″
Number of Input Station: 1
Number of Cut-Off Pieces: 1-9999
Remnant Length: 3″ Plus Length of Parts
Head-Up Position: 89.5″ x 106.2″ x 95.5″
Head Down Position: 89.5″ x 106.2″ x 62″
Table Height: 32.5″
Machine Weight: 4,851 lbs
