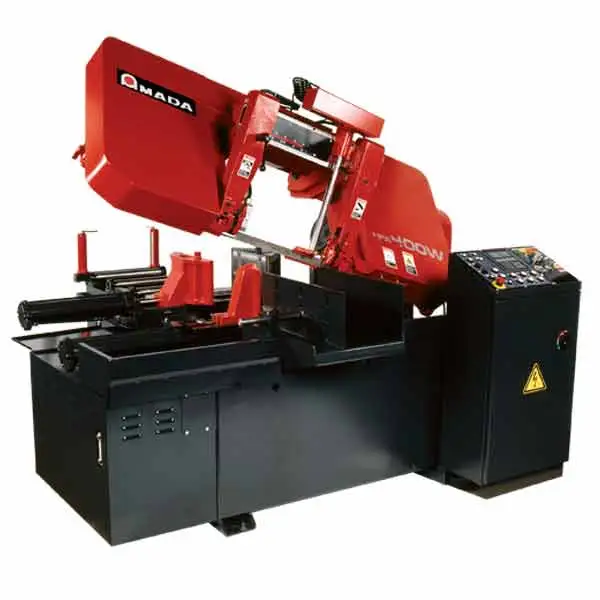

16″ x 16″ New Amada Horizontal Scissor Style Band Saw Model HFA400W Specifications:
Features:
SAW HEAD FRAME: The rigid ‘C’ section frame carries the mountings for the two band wheels, heavy-duty worm drive gear reducer, the band drive motor, and saw guide arm mounting supports.
BAND WHEELS & DRIVE SYSTEM: The band wheels are cast iron for long, productive life. The deflection free 9.4 inch (240 mm.) wheel spindles ensure the wheels run true regardless of tension stress or cutting loads. The spindle assemblies incorporate tapered roller bearings for greater rigidity and long service life. The wheel tracks the blade so that the back of the band contacts the wheel flanges to support the band. The drive motor is coupled to the transmission through a variable speed pulley.
DRIVE WHEEL TRANSMISSION: The drive wheel transmission is designed and built by Amada to provide high efficiency speed reduction, which requires no external cooling, to deliver more power to the large diameter drive hub. This hub ensures that this developed torque is transferred to the blade with no strobing, enabling the machine to efficiently cut high alloys as well as free machining materials.
PRESSURE FLOW VALVE: The independent pressure and flow controls in series ensure the optimum cutting rate can be obtained regardless of section or alloy being cut.
IDLER WHEEL MOTION DETECTOR: The wheel motion detector will turn off the blade drive in the case where a blade breaks or is jammed in the workpiece. This feature also prevents premature wear on the drive wheel from a stalled band.
AUTOMATIC, POWERED CHIP CONVEYOR: Hydraulic-powered shaftless chip conveyor for chip removal and coolant separation. The electrically powered chip conveyor auger automatically removes the saw chips from the saw while draining the cutting fluid back into the fluid reservoir. The automatic chip conveyor greatly reduces cleanup time and enables the machine to run longer without operator cleanup.

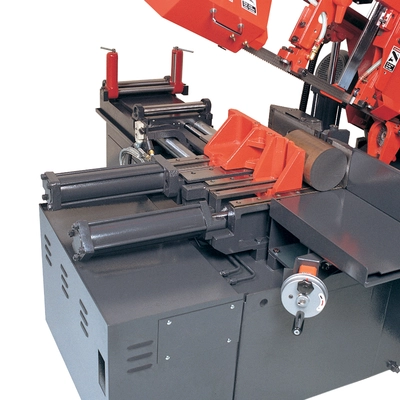

FULL STROKE VISE CLAMPING: The work holding and index vise cylinders are both full stroke which eliminates the manual setting of the clamping jaw for the working width.

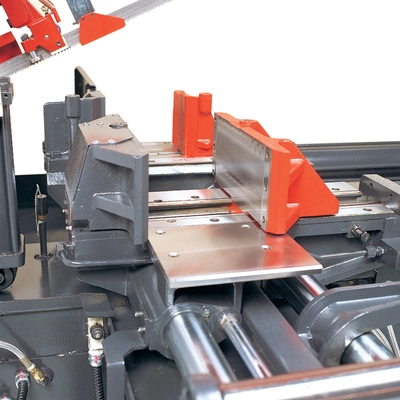

NARROW PROFILE FRONT VISE: The narrow front vise assembly reduces the butt end remnant to a minimum of 0.3″.
PLC (Pro Logic) CONTROLLER: This controller allows the operator to program and store up to 99 jobs with job queue cutting capability.
BLADE DEVIATION MONITOR
MOTION DETECTOR
VARIABLE BLADE SPEED
WHEEL COVER LIMIT SWITCH
AUTO TRIM CUT
NC BACK GAUGE
SELF DIAGNOSTICS
FULL STROKE VISE
16″ x 16″ New Amada Horizontal Scissor Style Band Saw Model HFA400W Optional Features:
ROLLER TABLE 6′
ROLLER TABLE 10′
VISE PRESSURE CONTROL
VERTICAL CLAMPS
EXTERNAL CHIP CONVEYOR
STAGING TABLE 6’X4′
STAGING TABLE 10’X4′
EXTENDED WARRANTY: Regular 1 year + Additional 1 year = Total 2 years
16″ x 16″ New Amada Horizontal Scissor Style Band Saw Model HFA400W NC Functions:
HOUR METER
AUTO TRIM CUT
BLADE DEVIATION MONITOR
99 CUT-OFF LENGTHS FROM THE SAME BAR
NUMBER OF PIECES REQUIRED/CUT
DOES NOT HAVE BLADE LIFE/HISTORY
Round (diameter): 1.18″ – 16.54″
Rectangle (W x H): 16″ x 16″
Work Load Capacity: 5,511 lbs
Blade Size (L x T x W): 15′ x 0.050″ x 1-1/2″
Blade Speed: 56-295 ft./min Stepless
Tension Control: Hydraulic
Top Limit Setting: Automatic Setting with Quick Approach Feeler
Cutting Control: Hydraulic Pressure & Flow Control Valve
Type: Main and Rear Vise
Control: Hydraulic Full-Stroke Cylinder
Saw Blade: 7.5 HP
Hydraulic Pump: 2 HP
Cutting Fluid Pump: 1/4 HP
Power Supply Voltage: AC220V±10%, 3 PH, 60 Hz or
AC440V±10%, 3 PH, 60 Hz
Power Requirement: 11 kVA
Tank Capacity: 31.7 gal
Pump Type: Centrifugal Electric Pump
Pump Capacity: 10.6 gal/min
Tank Capacity: 10.6 gal
Pump Type: Variable Discharge Vane Pump
Pump Capacity: 5.8 gal/min
Pressure Setting: 498 psi
Chip Disposal: Chip Conveyor
Index Mechanism: Shuttle Type
Stroke: 19.6″
Length: 0.39″-999.999″
Number of Input Station: 1-99
Number of Cut-Off Pieces: 1-9999
Remnant Length: 3″ Plus Length of Parts
Head-Up Position: 89.5″ x 106.2″ x 95.5″
Head Down Position: 89.5″ x 106.2″ x 62″
Table Height: 31.5″
Machine Weight: 4,850 lbs
