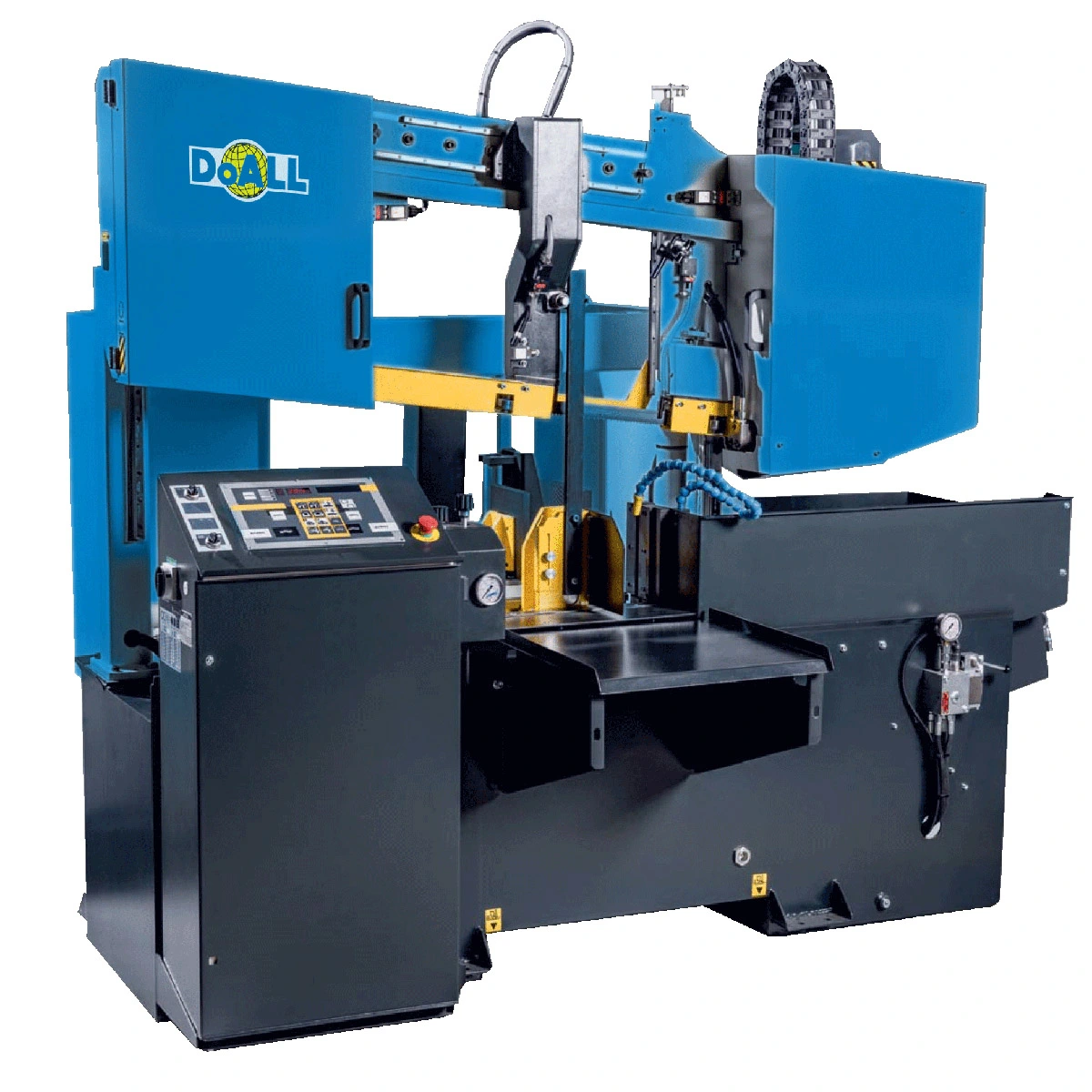

NEW DOALL TDC-400CNC

The DoALL Olympia™ TDC-400CNC is an automatic, dual column, CNC metal-cutting band saw specially designed to cut standard tube and pipe. The TDC-400CNC offers bundling to save time and money in high production environments like metal service centers. Also classified as a horizontal power specialty tube cut-off saw, the TDC-400CNC ships with a work light, work height sensor and discharge chute. A large variety of optional accessories are available to customize the machine for specific sawing requirements.
16″ x 16″ New DoALL Horizontal Band Saw Model TDC-400CNC Specifications:

16″ x 16″ New DoALL Horizontal Band Saw Model TDC-400CNC Features:
Operator Control Console: The operator control console is mounted on the front of the machine. Its placement insures the operator’s safety by keeping their hands clear of the saw band at band start.
Mitsubishi Touch Screen Panel: The colored touch screen control panel displays the cutting cycle indicator, blade tension warning, BRP (overfeed protection) function, band speed, band drive amp load and a list of error messages allowing the operator to monitor all machine functions.
Direct Driven Band Drive: Drive is comprised of an electric VFD controlled motor transferring power thru a gear reduction unit directly to the drive wheel eliminating belt slippage giving positive torque to the saw blade.
Automatic Cycle: The Automatic Cycle function allows the operator the ability to write and save 20 programs containing 15 different lengths of parts eliminating the need to stop the cycle and reset for multiple part sizes of the same material saving production time.
Automatic Overload Feed Protection: BRP function monitors the band drive motor amperage stopping head fall when the operator set parameter is reached signaling an overfeed condition or a dull saw band.
Band Wheels: Cast steel wheels insure proper band tracking and long life.
Nesting Fixtures: Plug-n-play vertical hold down clamp assemblies allow the operator to perform multiple pieces cutting increasing productivity.
Hydraulic Clamping Vice: Full stroke hydraulic vices combined with a split front vice will minimize set up time and maximize clamping pressure eliminating material movement and tooth strippage.
Floating Indexer: The vice carriage is guided with two rails and is hydraulically positioned by use of a DRO insuring accuracy and repeatability. The indexer “floats” allowing for lateral movement to clear crooked stock conditions so material is not dragged or scored during operations. The indexer is also capable of incremental indexing saving cycle time when in short part length operations increasing production.
Hydraulic Band Tension: Eliminates the possibility of over/under tightening of the band for maximum cutting rates and saw band life.
Saw Head Design: The saw head is mounted on linear rails which are mounted to two robust columns at a 7 degree cant. The 4 point head mounting system to the columns increases the stability of the saw head allowing for increased blade life.
Band Brush: Driven Band brush removes the chips from the blade gullets which would prevent the blade from attaining maximum cutting rates and blade life.
Warranty: One year parts and service subject to the terms and conditions listed on the terms and conditions page. Optional ten year warranty is available.

16″ x 16″ New DoALL Horizontal Band Saw Model TDC-400CNC Standard Equipment:
Programmable logic controller for all machine functions
Automatic & semi-automatic cycle
Mitsubishi controller
Rapid head down approach
Carbide faced saw guide inserts with lead in bearings
Material height sensor
Full stroke hydraulic vises
Driven band cleaning brush
Infinite band speed by variable frequency drive
Automatic movable guide arm settings
Cast steel band wheels
Programmable over feed protection
Vertical hold downs
Laser line generator
Feed rate/feed force saw head control
Hydraulic band tension
Recirculating coolant system
Mist band lubricator system
Normal and incremental indexing
Variable Vise Pressure
LED work light
7 degree cant design
Saw blade guards
Auger style chip conveyor
Band door interlocks
Operation and parts manuals on USB stick
Recommended band speed chart
One (1) complimentary DoALL Bi Metal saw blade
Complimentary DoALL Cutting Fluids package
16″ x 16″ New DoALL Horizontal Band Saw Model TDC-400CNC Optional Accessories:

Cutting capacity round tube 90°: 15.75″
Cutting capacity round solid 90°: 7″
Cutting capacity rectangle 90°: 15.75″ x 16″
Saw blade (width x length): 1 1/4″ x 178″
Motor Hp: 4 Hp
Band speed: 65-328 fpm
Band tension: Hydraulic
Motor Hp: 1 Hp
Reservoir Size: 10 gallon
Flood: Yes
Mist lubricator: Yes
Motor HP: 0.12 Hp
Reservoir size: 16 gallon
Length per stroke: 19.9″
Maximum index strokes length: 394″
Remnant length at 90°: 6″
W x L x H: 102″ x 102″ x 72″
Material pass height: 31.5″
Machine weight: 2,866 lbs
Voltage requirement (Wye configuration): 460V-60Hz-3ph
Total amp draw (FLA): 9.8 amps
