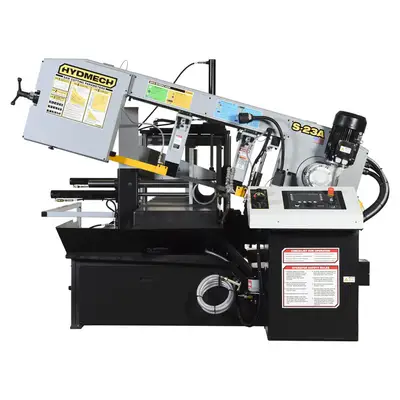

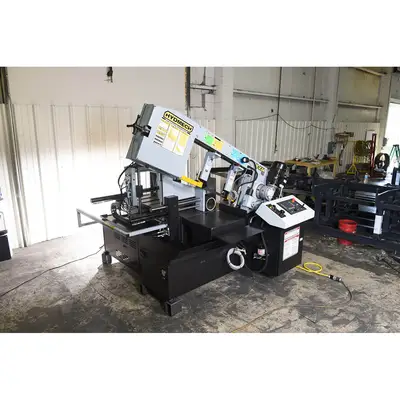

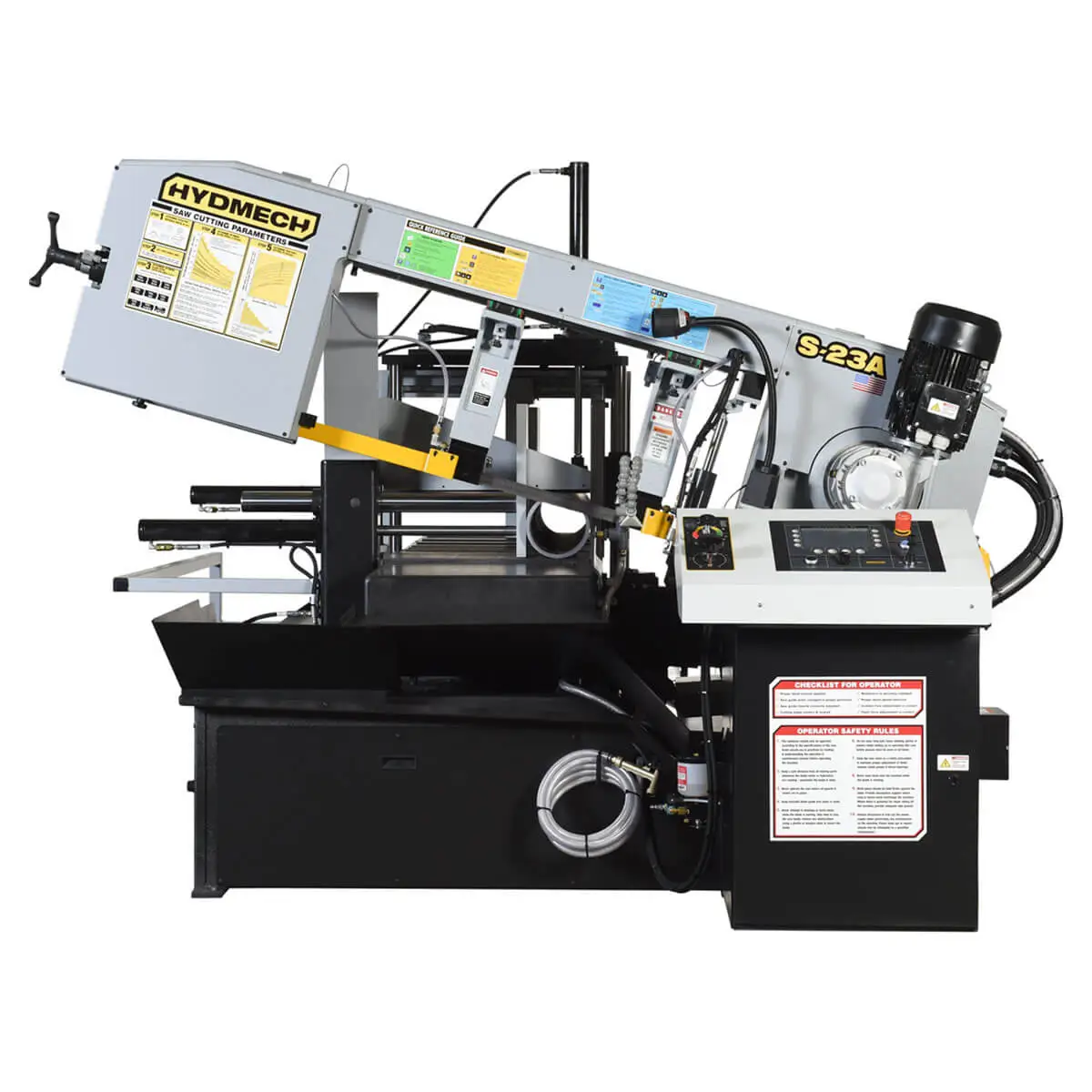

16″ x 20″ New HydMech Automatic Pivot Style Horizontal Band Saw Model S-23A Specifications:
16″ x 20″ New HydMech Automatic Pivot Style Horizontal Band Saw Model S-23A Standard Features:
Easy swing, heavy duty cast iron saw head that can swing up to 60 degrees one direction
Cast iron shuttle features automatic multi-indexing up to 28.5” in a single stroke. Powered by ball screw and stepper motor
19 1/4” out feed table and 45 1/4” infeed table

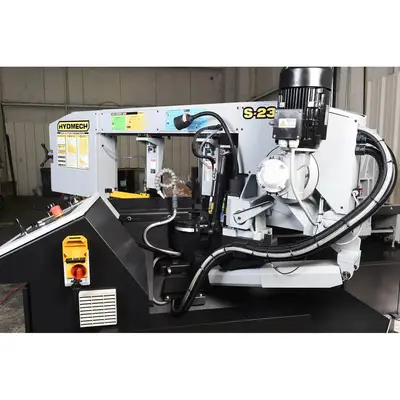

8 HP VFD. True direct blade drive – no belts/pulleys
On-demand hydraulics save energy

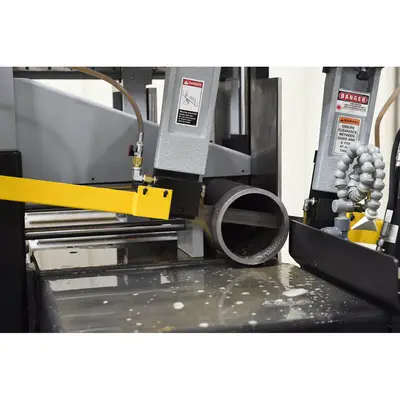

Full capacity, full stroking hydraulic vises
Blade chamber pulls back material from cut part to extend blade life
Cast iron band wheels
Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue
Replaceable blade brush
Robust steel base
Easy to read angle scale with angle locking mechanism
Cast iron blade guide arms mounted on linear rails is adjustable for proper spacing.

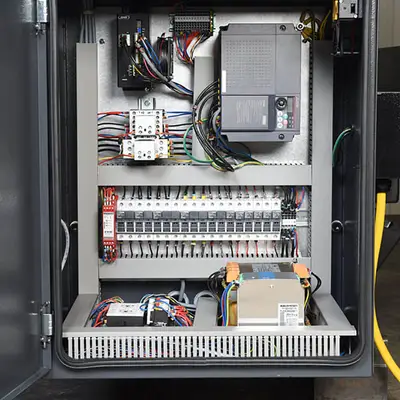

Easy access electrical panel
Out of stock switch
Blade breakage switch
Mechanical band tensioning with digital readout
Hydraulic positive down feed of sawing head
Pre-sets replaceable carbide guide inserts
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light

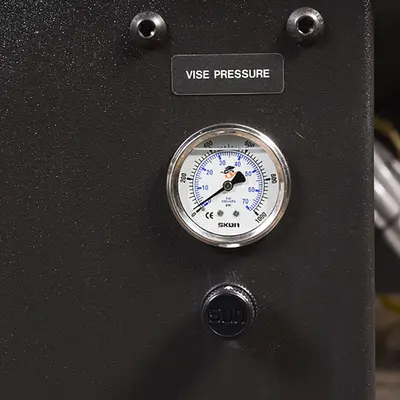

Variable vise pressure
16″ x 20″ New HydMech Automatic Pivot Style Horizontal Band Saw Model S-23A Optional Features:
Full capacity hydraulic overhead bundling
Remote console – 10’ cord
Mist lubrication
Idler conveyors
Powered conveyors
16″ x 20″ New HydMech Automatic Pivot Style Horizontal Band Saw Model S-23A Optional Accessories:
90° rectangle (h x w): 16″ x 20″
90° round: 16″
45° rectangle (h x w): 16″ x 14″
45° round: 14″
30° rectangle (h x w): 16″ x 8.5″
30° round: 8.5″
Blade Drive: 8.8 HP VFD
Blade Speed: 75-350 SFM
Blade Size: 1.25″ x 16′ 10″
Table Height: 33″
Voltages Available: 208, 240, 480, 575 v
Weight: 4,200 lbs
Dimensions (w x l x h): 101″ x 95″ x 61″
Coolant Tank Capacity: 12 gal
Work Load: 5,000 lbs
