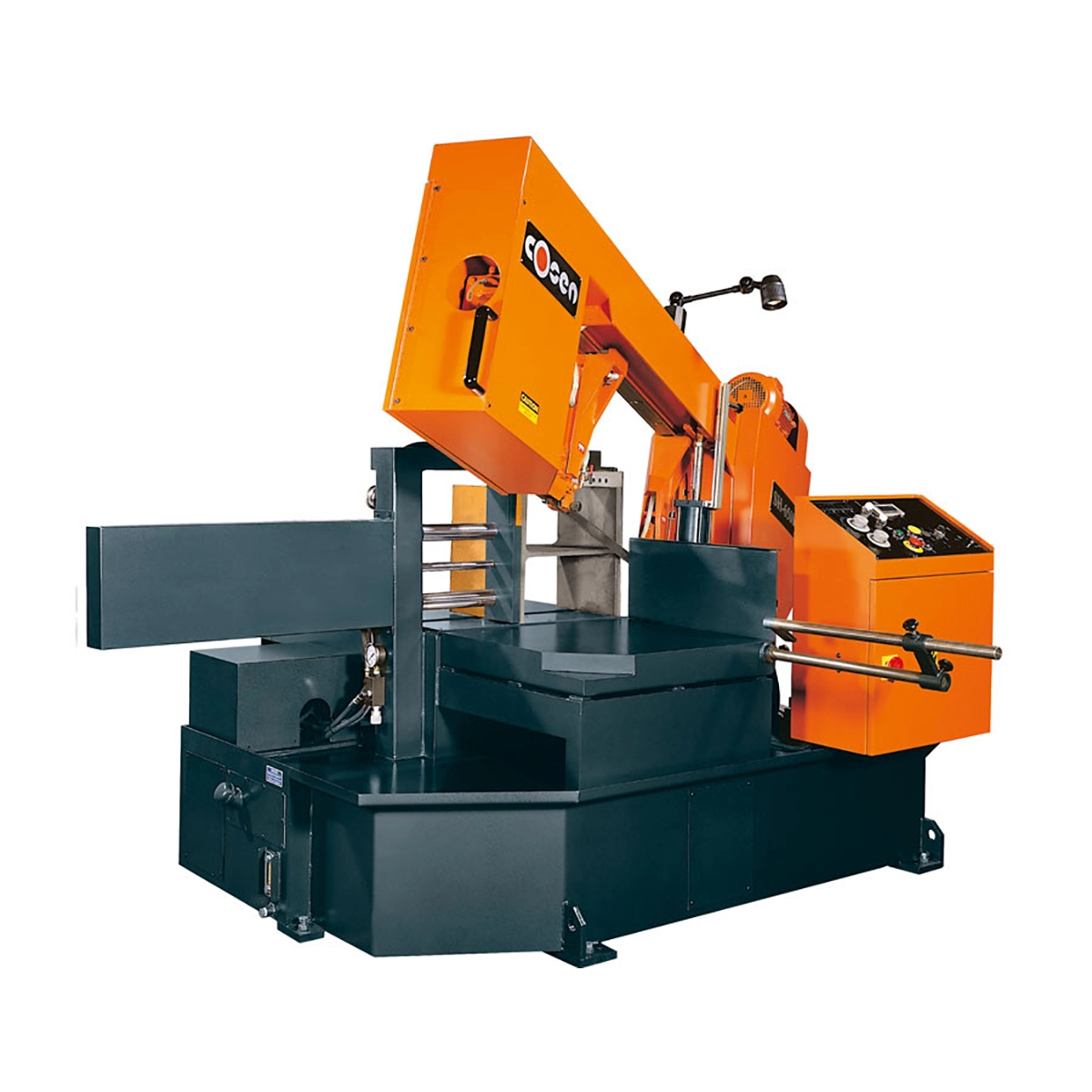

Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw machine. With its rigid construction and superior features, the 16″ x 25″ New Cosen Horizontal Band Saw Model SH-650M fits into that category. This heavy duty band saw offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment.
16″ x 25″ New Cosen Horizontal Band Saw Model SH-650M Specifications:
16″ x 25″ New Cosen Horizontal Band Saw Model SH-650M Features:
Swivel saw head allows miter cutting from 0 degrees to 60 degrees
Hydraulic cylinder plus precision ground hinge support
Hardened worm gear for durability
Variable speed blade drive
Blade drive equipped with variable pulley system
Adjustable flood coolant system
Motor driven, synchronized wire blade brush
Carbide blade guides and bearing provides additional blade support
Rigid cast-iron guide arms
Cast-iron hydraulic vise
Dual valve feed pressure and feed rate system for optimal cutting performance
Automatic hydraulic blade tensioning device
Maximum Cutting Capacity Round 0˚ angle: 16″
Maximum Cutting Capacity Round +45˚ angle: 16″
Maximum Cutting Capacity Round +60˚ angle: 10″
Maximum Cutting Capacity Rectangular 0˚ (HxW): 16″ x 25″
Maximum Cutting Capacity Rectangular +45˚ angle (HxW): 16″ x 16″
Maximum Cutting Capacity Rectangular +60˚ angle (HxW): 16″ x 10″
Blade Speed: 49-328 FPM
Blade Size (LxWxT): 17′ 4.6″ x 1.25″ x .042″
Blade Motor: 7.5 H.P.
Hydraulic Motor: 1 H.P.
Coolant Motor: 1/8 H.P
Workbed Height: 29.5″
Weight: 3,960 lbs
Floor Space (LxWxH): 90.6″ x 114″ x 98.4″
SKU#: 21806
