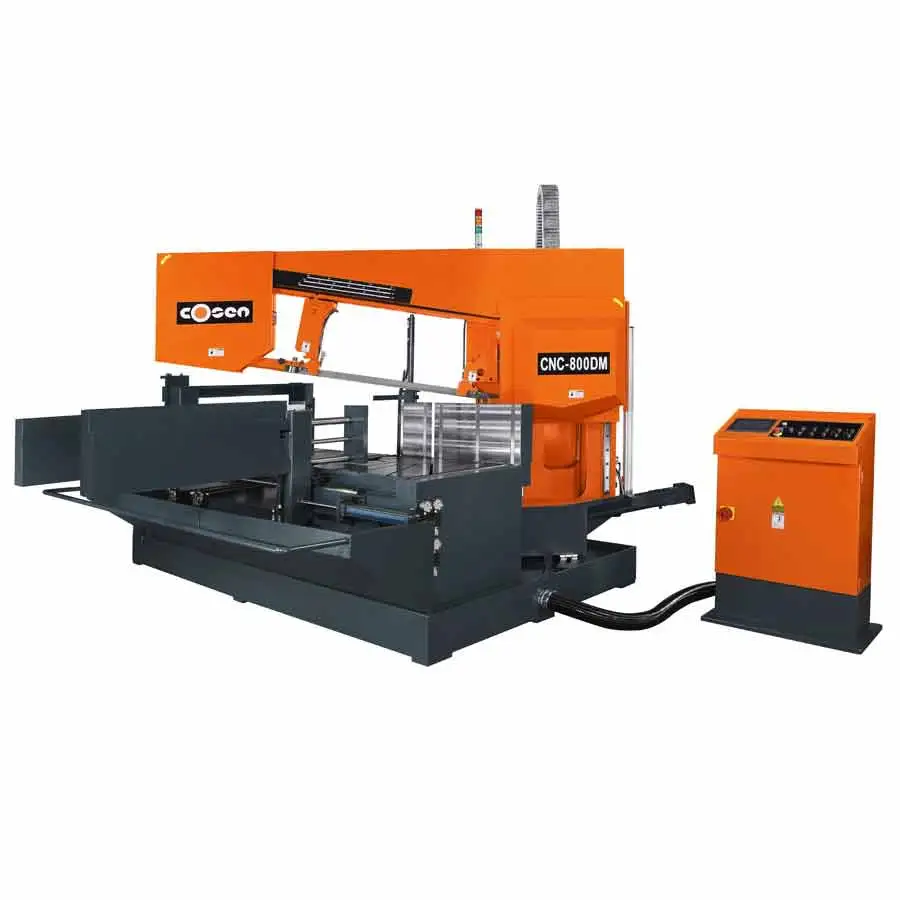

NEW COSEN CNC-800DM

Cosen’s CNC-800DM incorporates a 7.5hp powerful blade motor, 2″ wide blade, independent control panel, and heavy-duty dual column design. These features create a very rigid, dynamically stable and productive machine. The over-sized precision ground columns ensure smooth saw frame movement and the consistently stable cutting force required throughout the cutting cycle, thereby increasing the cutting efficiency and extending blade life.
16″ x 31″ New Cosen Horizontal Band Saw Specifications:


16″ x 31″ New MFGName Horizontal Band Saw Features:
Planetary gearbox
CNC Control technology
Miter-angle display
Two-swiveling/feed speeds
Instant Linear down feed rate
Hydraulic Shuttle Vise
Double retracting vise jaws
Hydraulic guide arms and blade guides
Vibration damper
Optional top clamp
Optional blade deviation detector
Programmable up to 100 individual jobs, including cut-off lengths, quantities and miter angles
Automatic saw frame mitering: single or double-sided to your preset angle
Automatic guide arm & front vise re-positioning
Programmable cutting rates & Blade speeds
Automatic multiple feeding with mitering direction taken into calculation
Automatic machine shutoff after cutting job is complete or when out of material
10″ HMI touch screen with access to blade speed, blade life, optional motor amp draw and blade deviation detector

Maximum Cutting Capacity Round at 0˚: 20″
Maximum Cutting Capacity Round at +-45˚: 17.7 “
Maximum Cutting Capacity Round at -60˚: 16″
Rectangular Capacity (HxW) 0˚: 16″ x 31″
Rectangular Capacity (HxW) +-45˚: 16″ x 21″
Rectangular Capacity (HxW) -60˚: 16″ x 16″
Blade Speed (Variable): 82-328 FPM
Blade Size (LxWxT): 22′ 2.77″ x 2″ x.05″
Blade Motor: 7.5 H.P.
Hydraulic Motor: 2 H.P.
Coolant Motor: 1/4 H.P
Workbed Height: 42.7″
Automatic Indexing Length: 59″ per shuttle, 256″ Max
Weight: 17,600 lbs
Floor Space (LxWxH): 138″ x 160″ x 91″
SKU#: 21351
