Overview
Type:
Horizontal Band Saws
Manufacturer:
COSEN
Model:
CNC-430
Stock #:
22273
Description

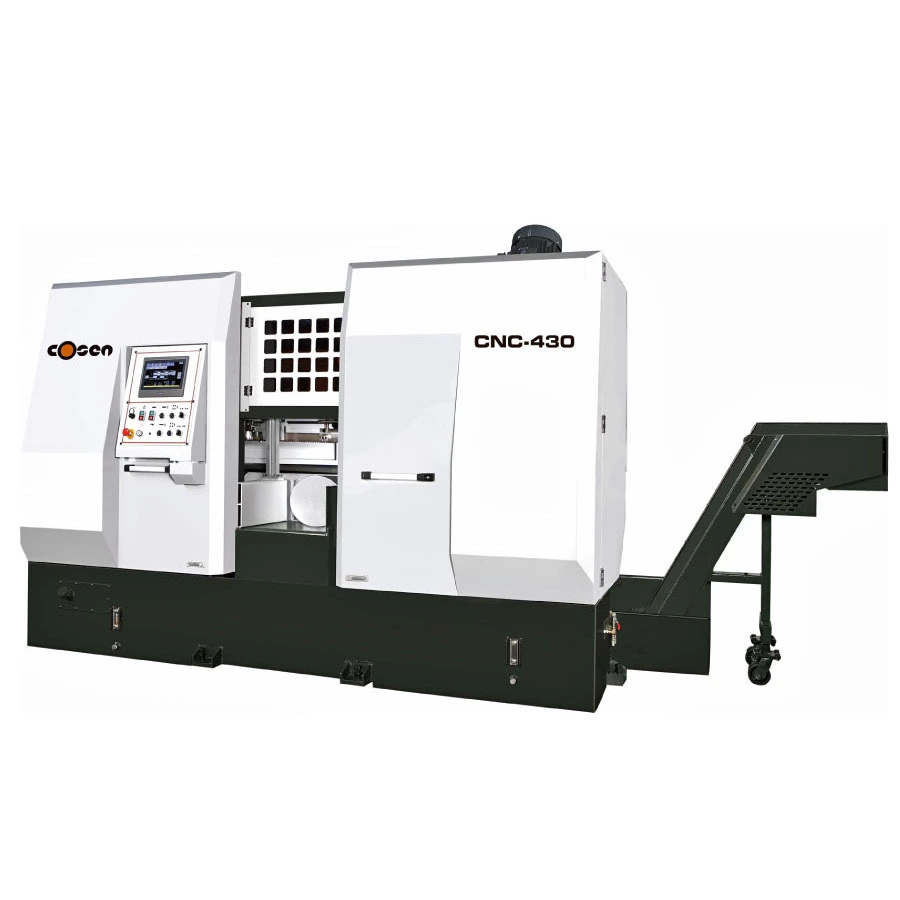

Hard material like Inconel, Titanium, and Stainless Steel are expensive to cut due to extensive time consumption, tool costs, and demand of an experienced operator. With the 16.5″ x 17″ New Cosen Automatic Horizontal Bandsaw Model CNC-430, you are in full control by cutting hard material faster, extending blade life, and eliminating guesswork or operator error. The CNC-430 allows you to manage blades, work orders from office, and cut with recommended rates and storing favorite parameters.



16.5″ x 17″ New Cosen Automatic Horizontal Bandsaw Model CNC-430 Features:
High precision linear guide way design (Ball Screw)
Gearbox designed to accept high lateral pressure (no thermal distortion)
Inverter blade drive system which allows infinitely variable blade speeds
5.7″ HMI touchscreen
Adjustable flood coolant system
Motor driven, synchronized wire blade brush
Carbide blade guides and bearing provides additional blade support
Rigid cast-iron guide arms
Automatic hydraulic blade tensioning device
Cast-iron hydraulic vise
Split vise jaw for reduced burr
Vibration damper
Dual valve feed pressure and feed rate system for optimal cutting peformance
Computer controlled multiple indexing up to 999″ max length

Specifications

Maximum Cutting Capacity Round: 16.5″
Maximum Cutting Capacity Square: 16.5″
Maximum Cutting Capacity Rectangular (HxW): 16.5″ x 17″
Blade Speed: 33-393 FPM
Blade Size (LxWxT): 20′ 0.16″ x 2″ x .063″
Blade Motor: 10 H.P.
Hydraulic Motor: 2 H.P.
Coolant Motor: 1/4 H.P
Workbed Height: 26.8″
Feeding Servo Motor: 1.7 HP
Saw Bow Servo Motor w/Brake: 1.7 HP
Weight: 10250 lbs
Floor Space (LxWxH): 88.6″ x 153.5″ x 84.6″
