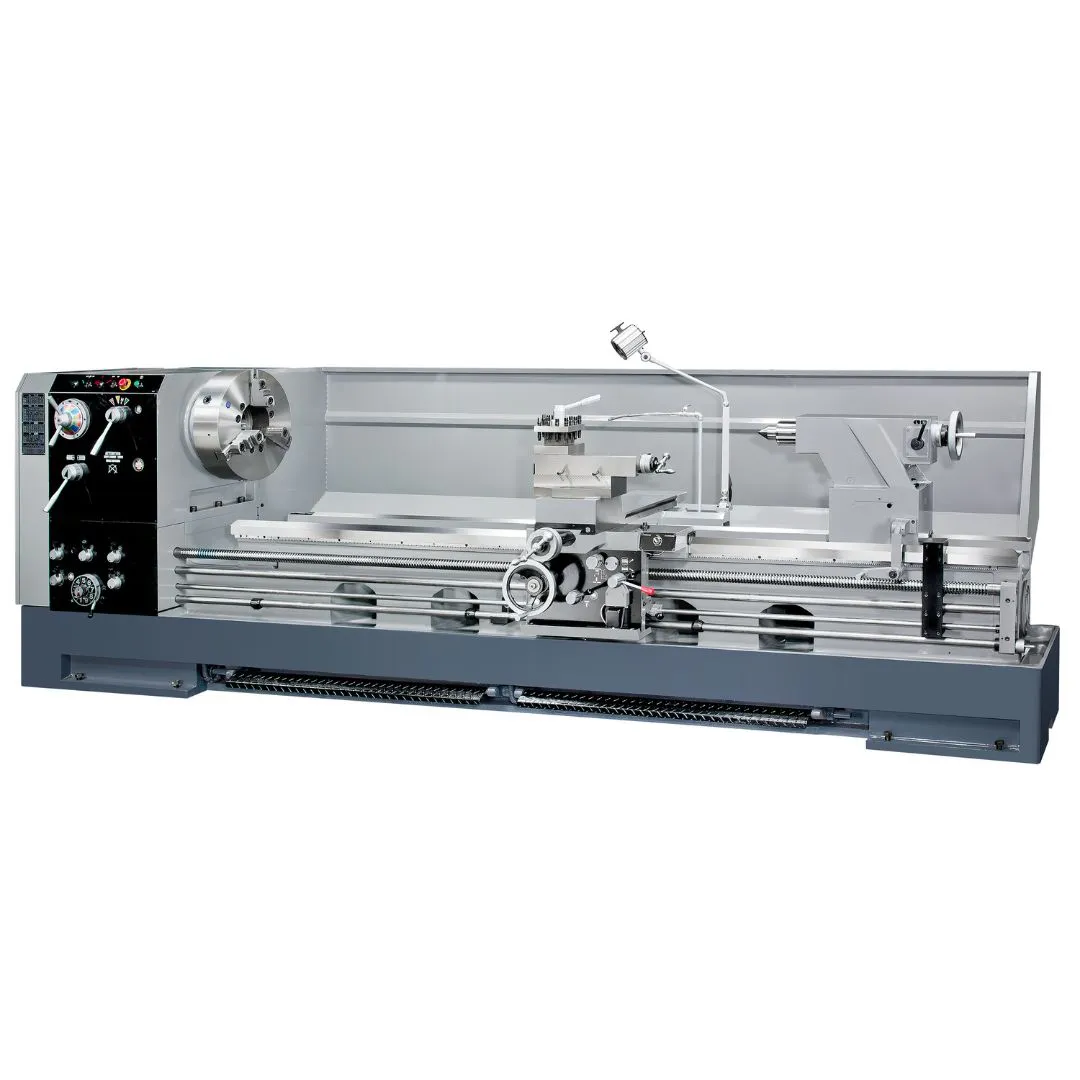

NEW KENT USA HR-35

20 HP Spindle Motor, 12-Speeds
4.1” (6.1” Opt)Spindle Through Hole
Solid One Piece Full Length Casting Base and Bedways for Maximum Rigidity
Spindle Jog Button Control
One-shot Lubrication for Apron, Multi-position Adjustable Feed Position Stops
Dual Inch/Metric Calibrated Tailstock Quill with Knockout Tang; Heavy Duty Two Speed Tailstock
Dual Inch/Metric Dials (Optional)
3-position carriage stop
4-position tool post
Steady rest
Halogen work light
Thread chasing dial
Coolant system
Digital Readout System
Chuck cover
4-jaw independent chuck
Face plate
Royal spindle type live center
Taper turning attachment
BTC 3-jaw chuck with back plate
Micrometer carriage stop
Rustlick coolant

Swing Over Cross Slide: 25.2″
Swing Over Gap: 46″
Width of Bed: 19″
Distance Between Centers: 120″ (Opt. 80″ / 160″ / 200″)
Cross Slide Travel: 17.32″
Top Slide Travel: 9.4″
Spindle Bore: 4.1″ (Opt. 6.1″)
Spindle Speeds: 12
Spindle Speed Range: 14-1000 RPM
Through Hole Diameter: 4.1″ (Opt. 6.1″)
Spindle Nose: D1-11 or A1-11
Spindle Bore Taper: MT#7- MT#5
Thread – Standard (Whit-worth): 45 (2-72) TPI
Thread – Metric Pitch: 39 (0.2-14) mm
Longitudinal Feed: 0.002″–0.0276″ in/rev
Cross Feed: 0.001″–0.00138″
Quill Travel: 12″
Quill Diameter: 4.133″
Quill Bore Taper: MT#6
Main Motor: 20 HP
Coolant Pump Motor: 1/8 HP
Packing Dimension: 198″ x 69″ x 73″
