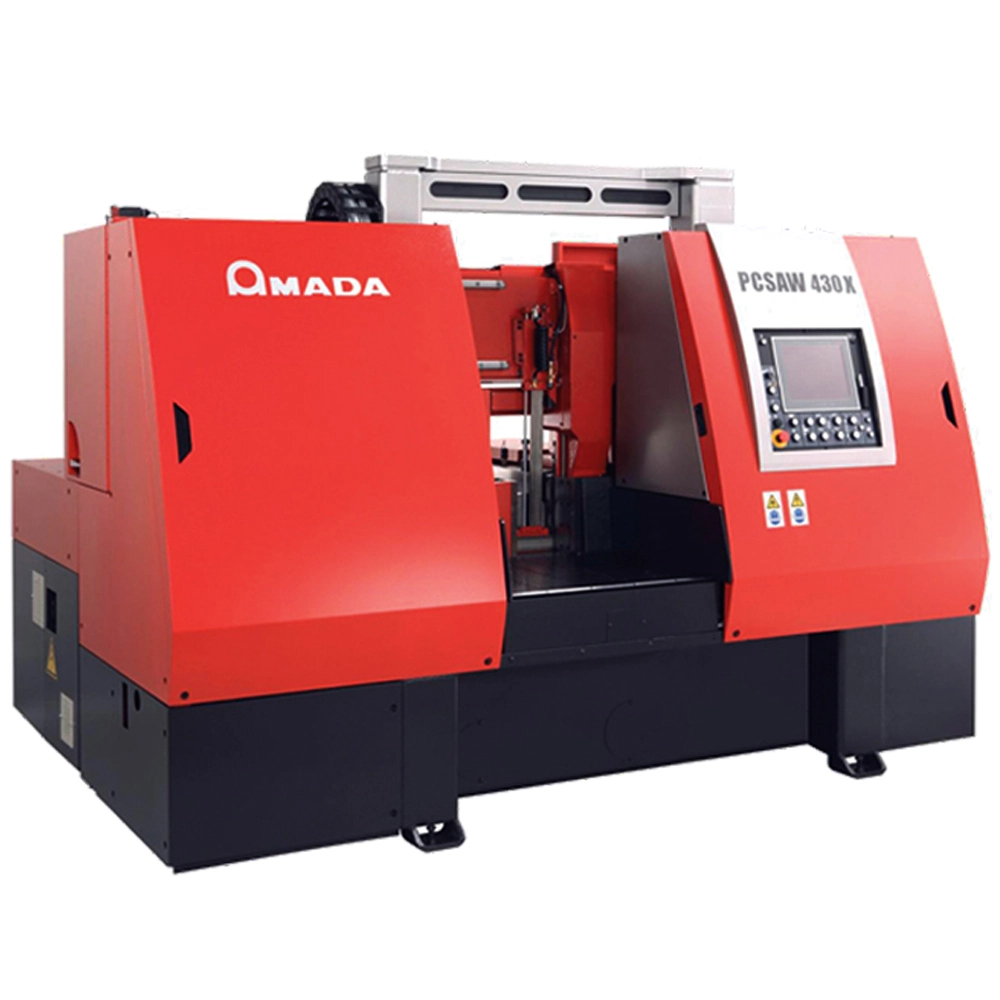

NEW AMADA PCSAW430X/AX

17″ x 17″ New Amada Horizontal Pulse Cutting Band Saw Model PCSAW430X/AX Specifications:

17″ x 17″ New Amada Horizontal Pulse Cutting Band Saw Model PCSAW430X/AX Standard Features:
PULSE CUTTING • Single pulse cutting cancels the vibrations that occur during the penetration force. This technology decreases cutting resistance while increasing blade life and cutting rates. Increased blade life is now guaranteed without sacrificing productivity.
3D SELF-ADJUSTING
WIRE BRUSH
INVERTER BLADE SPEED CHANGE
CUTTING CONTROL BY
HYDRAULIC FLOW
CONTROL VALVE WITH STEPPING MOTOR
AUTO TRIM CUT FUNCTION
QUICK APPROACH
SPLIT FRONT VISE
WORK LIGHT
BACK GAUGE STOPPER
VIBRATION PREVENT ROLLER
MOTION DETECTOR
FULL STROKE VISES
BLADE DEVIATION MONITOR
VERTICAL PULSE CONTROL
LARGE AREA CHIP CONVEYOR
3D AUTOMATIC ADJUSTING WIRE BRUSH
WINDOWS®-BASED CNC CONTROLS
BLADE SPEED CONTROLLED BY INVERTER
CUTTING FLUID LEVEL DETECTOR
HYDRAULIC BLADE TENSIONING
AUTOMATIC POSITIONED GUIDE ARM
FEED SYSTEM CONTROLLED BY SERVO MOTOR DRIVEN BALL SCREW (PCSAW430X)
FEED CONTROLLED BY NC HYDRAULIC SYSTEM (PCSAW430X)

17″ x 17″ New Amada Horizontal Pulse Cutting Band Saw Model PCSAW430X/AX Optional Accessories:

About Us
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, and Instagram.
Worldwide Machine Tool LLC.

Terms and Conditions: https://www.worldwidemachinetool.com/terms-conditions/
All product information including but not limited to price, specifications, color, photos, equipped with and features are subject to change.

Round (diameter): 1.18″-16.93″
Rectangle (W x H): 16.93″ x 16.93″
Work Load Capacity: 6,613 lbs
Blade Size (L x T x W): 20′ x 0.063″ x 2″
Blade Speed: 49-394 ft./min by Inverter
Tension Control: Hydraulic
Top Limit Setting: Automatic Setting with Quick Approach Feeler
Cutting Control: PCSAW430X: Windows Based CNC Control, Hydraulic Flow Control Valve with Stepping Motor
PCSAW430AX: Windows Based CNC Control, Servo Motor with Ball Screw
Type: Main Split Vise and Rear Vise
Control: Hydraulic Full-Stroke Cylinder
Saw Blade: 15 HP
Hydraulic Pump: 3 HP
Pulse Cutting: 1/8 HP
Wire Brush: 1/2 HP
Cutting Fluid Pump: 1/2 HP
Power Supply Voltage: AC220V±10%, 3 PH, 60 Hz All Other Voltages Require Transformer
Power Requirement: PCSAW430X: 25 kVA
PCSAW430AX: 26 kVA
Tank Capacity: 47.3 gal
Pump Type: Centrifugal Electric Pump
Pump Capacity: 5.3 gal/min
Tank Capacity: 7.34 gal
Pump Type: Piston Pump
Pressure Setting: 597.4 psi
Chip Disposal: Built-In Wide Scraper Style Chip Conveyor
Index Mechanism: Shuttle Vise
Stroke: 19.685″
Length: 0.394″-393.70″
Number of Input Block: 1-99
Number of Input Station: 1-99
Number of Cut-Off Pieces: 1-9999
Remnant Length: 3.94″ Plus Length of Parts
PCSAW430X Head-Up Position: 112.2″ x 83.2″ x 89.6″
PCSAW430X Head Down Position: 112.2″ x 83.2″ x 79.6″
PCSAW430AX Head-Up Position: 112.2″ x 83.2″ x 100″
PCSAW430AX Head Down Position: 112.2″ x 83.2″ x 100″
Table Height (Above Floor): 27.6″
Machine Weight: 10,361 lbs
