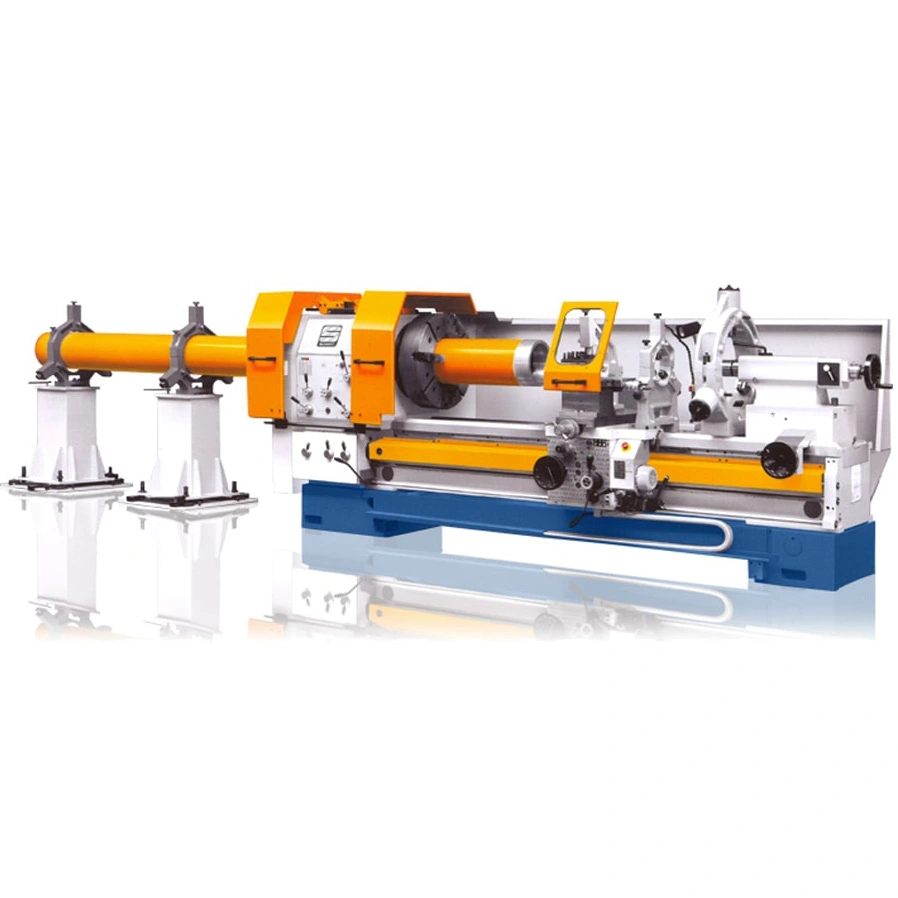

The Summit Euro Hollow Spindle Oil Country Lathe Series is designed to provide the precision you’d expect and the reliability required for today’s demanding applications. The Summit Euro Hollow Spindle Lathes are available in center distances from 60″ to 240″, with spindle bores of 10″, 12″ and 14″ to cover a wide range of workpieces. The quick change gearbox allows easy selection of Ince, metric and Module threads in a wide range of sizes. The headstock is designed with straight cut final drive gears that provide quiet and efficient operation through the full range of spindle speeds. The huge forged spindles are mounted in precision angular contact spindle bearings for axial and radial load.
The bed of the lathe is constructed from high grade alloyed cast iron, normalized and aged to achieve maximum stability. It is also designed for rear chip discharge and the lathe comes standard with chip and coolant pans for easy chip removal. This lathe series features castings that are heavily ribbed for rigidity and vibration dampening. The extra wide (22″) bed ways are hardened and precision ground to provide accuracy and long life. The Summit Euro Oil Country Lathes come standard with sliding chuck guards, steady rest, follow rest, complete coolant system with chip pans, full-length splash guard, and a taper attachment incremented in both degrees and inches per foot.
Big 10.2″, 12.4″ & 14.1″ thru holes
Inch/metric threads w/single switch lever
Cuts most inch/metric threads without change gears
Hardened & precision ground bedways
Forced lubrication to the headstock, carriage and bedways
Precision (3) bearing spindle
Crossed and threading safety interlock
Feed reversing at the apron
4-way rapid traverse
Two-speed tailstock
Sliding Chuck Guards
Standard Steady Rest (7″ to 16.9″)
Follow rest
Thread dial
Coolant system
Taper attachment
Carriage stop
Work light
Full-length splash guard
Service wrenches & spanners
Swing over bed: 39.5″
Swing over cross slide: 29.9″
Hole thru spindle: 14.1″
Spindle speeds (12): 9.6 – 460 RPM
Spindle nose: A2-20
Travel of spindle barrel: 18.8″
Diameter of spindle barrel: 4.1″
Tailstock center: #6 MT
Width of bed: 22″
Main drive motor: 30 HP
Shipping dimensions (LxWxH): 147″ x 64″ x 85″
Shipping weight (approx.): 14,520 lbs.
