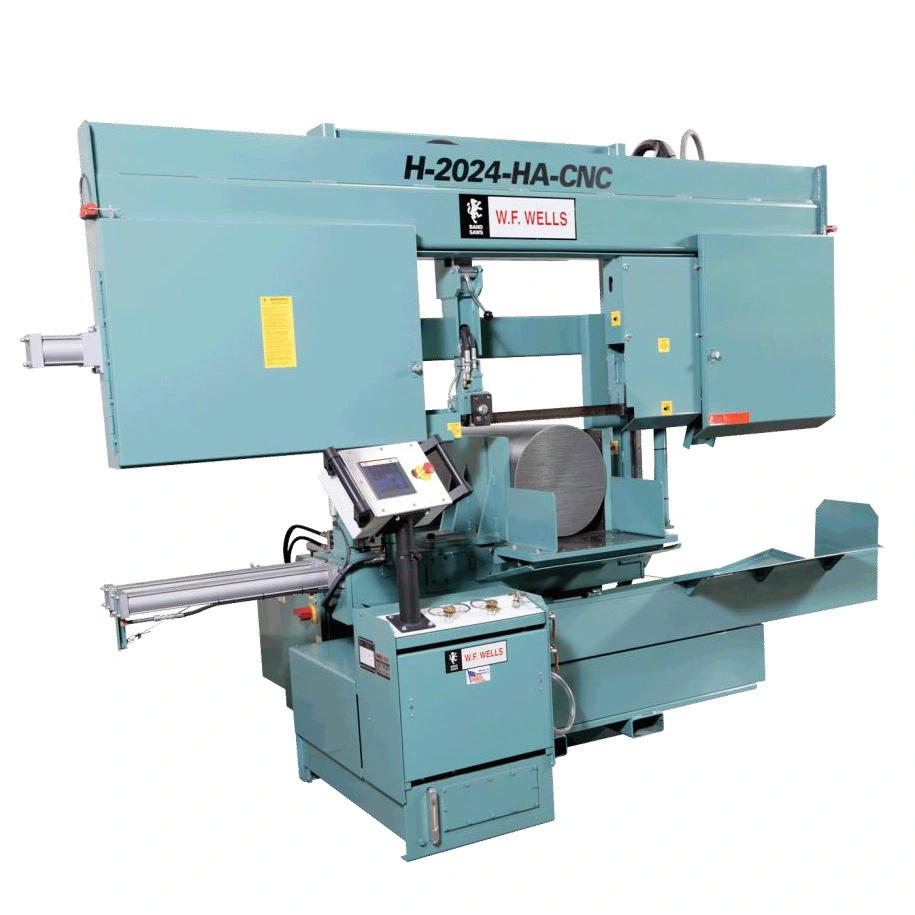

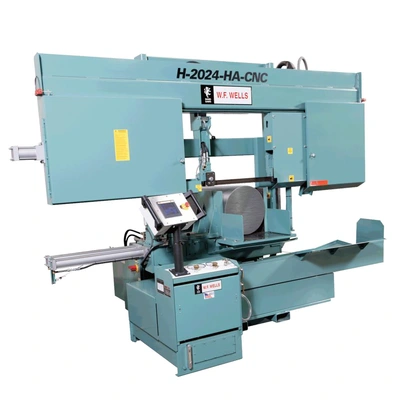

NEW W.F. WELLS H-2024HA-CNC

NEW W.F. WELLS H-2024HA-CNC

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Horizontal Band Saws
Manufacturer:
W.F. WELLS
Model:
H-2024HA-CNC
Stock #:
41331
Description

Fully Automatic CNC Barfeed
Color Touch Screen Controls
500 Plus Job Selection
Automatic Kerf Compensation
Part Length up to 99,999.000″
On-Screen Help Menu
AC Vector Drive
Digital Blade Speed Indicator
Built-In Coolant System
Variable Vise Pressure
Hydraulic Blade Tension
Saw Bed & Vise Wear Plates
Built-In Fork Lift Pockets
NFPA 79 Electrics
NFPA Hydraulics
Electronic Door Safety Interlocks
Blade Break / Stall Switch
Machine Diagnostics

Specifications

Capacity: Rectangular at 90 degree 20″ High x 24″ Wide,
Round at 90 degrees 20″ Diameter
Weight Capacity: 6,500 lbs.
Blade Speed: 60 – 500 SFPM
Blade Size: 1-1/2″ x 0.050″ x 20’4″‘
Blade Guide: Rollers Guides with Carbide Inserts
Vise: Hydraulic, Full Stroke, 15″ High
Bandwheel Size: 22″
Blade Tension: Hydraulic
Blade Drive: 10 HP, AC Vector Drive
Sawing Force: 0-750 Lbs.
Coolant Capacity: 15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 2HP Motor
Work Height: 35″
Barfeed Projection: 0-25″ CNC Controlled
Shuttle Indexes: Unlimited
Projection Accuracy: +/- .002″
Remnant End: 4″
Shipping Weight: 5,500 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine Dimensions: 122″(L) x 101″(W) x 93″(H)
Voltage: 208-60-3/230-60-3/460-60-3/575-60-3
