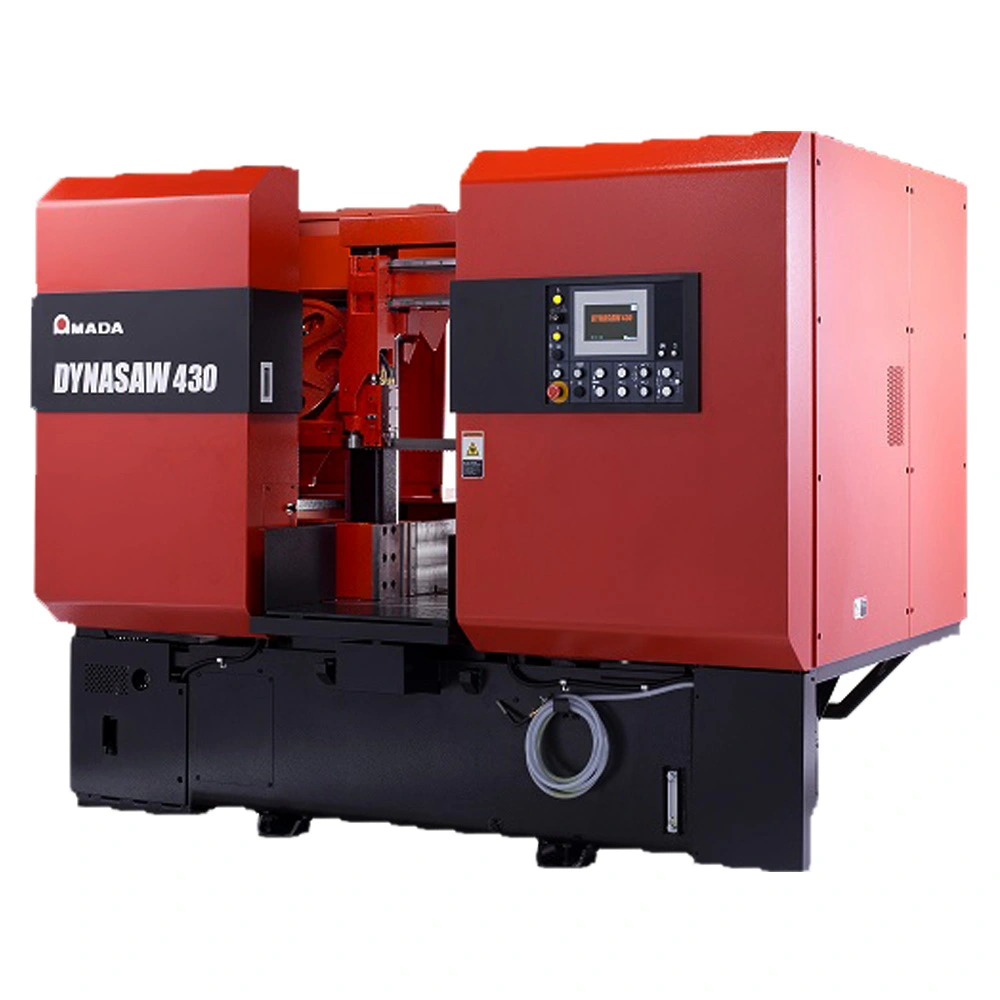

17″ x 17″ New Amada Horizontal Post Style Band Saw Model DYNASAW 430 Specifications:
17″ x 17″ New Amada Horizontal Post Style Band Saw Model DYNASAW 430 Features:
DYNAMIC FRAME • A highly rigid frame that incorporates a newly engineered dual post system.
NEW CNC CONTROL • Very easy to use and greatly reduces setup time. • Three different cutting modes for maximum efficiency: “Eco-mode”, “Standard-mode”, and “Power-mode”.
DOUBLE VIBRATION DAMPENING ROLLERS • Double rollers reduce vibration resulting in faster and quieter cutting while improving blade life.
NEW SAW BLADE FRAME DESIGN • Longer blade life by reducing the twist in the blade, fatigue is greatly reduced leading to longer blade life.
OPEN TOP, LONGER FEED STROKE VISE
NON-CONTACT MATERIAL POSITIONING
SMART BLADE CHANGE FEATURE
CHIP FLUSHER TO FACILITATE MACHINE UP TIME
BURR REMOVAL THROUGH UNIQUELY DESIGNED TABLE
AUTO TRIM FUNCTION USING A LASER TO DETECT MATERIAL POSITION
SELF ADJUSTING WIRE BRUSH
BLADE DEVIATION MONITOR
BLADE SPEED CONTROLLED BY INVERTER
CNC CUTTING CONTROL WITH HYDRAULIC PRESSURE
AUTO TRIM CUT FUNCTION
CHIP CONVEYOR
MOTION DETECTOR
BACK GAUGE STOPPER
17″ x 17″ New Amada Horizontal Post Style Band Saw Model DYNASAW 430 Optional Accessories:
Round (diameter): 1.18″-16.93″
Rectangle (W x H): 1.18″ x 1.18″ – 16.93″ x 16.93″
Work Load Capacity: 6,613 lbs
Blade Size (L x T x W): 17’5″ x 0.050″ x 1-1/2″
Blade Speed: 49-394 ft./min by Inverter
Tension Control: Hydraulic
Top Limit Setting: Automatic Setting with Quick Approach Feeler
Cutting Control: CNC Control, Hydraulic Flow Control Valve with Stepping Motor
Type: Front, Main, Rear Vises
Control: Hydraulic Full-Stroke Cylinder
Saw Blade: 7.5 HP
Hydraulic Pump: 2 HP
Wire Brush: 1/8 HP
Cutting Fluid Pump: 1/4 HP
Power Supply Voltage: AC220V±10%, 3 PH, 60 Hz All Other Voltages Require Transformer
Power Requirement: 13 kVA
Tank Capacity: 33 gal
Pump Type: Centrifugal Electric
Pump Capacity: 2.6 gal/min
Tank Capacity: 5.3 gal
Pump Type: Vane Pump
Pressure Setting: 508 psi
Chip Disposal: Automatic Hydraulic Screw-Type Chip Conveyor
Index Mechanism: Shuttle Vise
Stroke: 27.559″
Length: 0.394″-99.999″
Number of Input Block/Station: 1-99/1-30
Number of Cut-Off Pieces: 1-9999
Remnant Length: 1.38″ Plus Length of Parts
Head-Up Position: 99.2″ x 85.8″ x 79.5″
Head Down Position: 99.2″ x 85.8″ x 79.5″
Table Height: 27.6″
Machine Weight: 7,718 lbs
