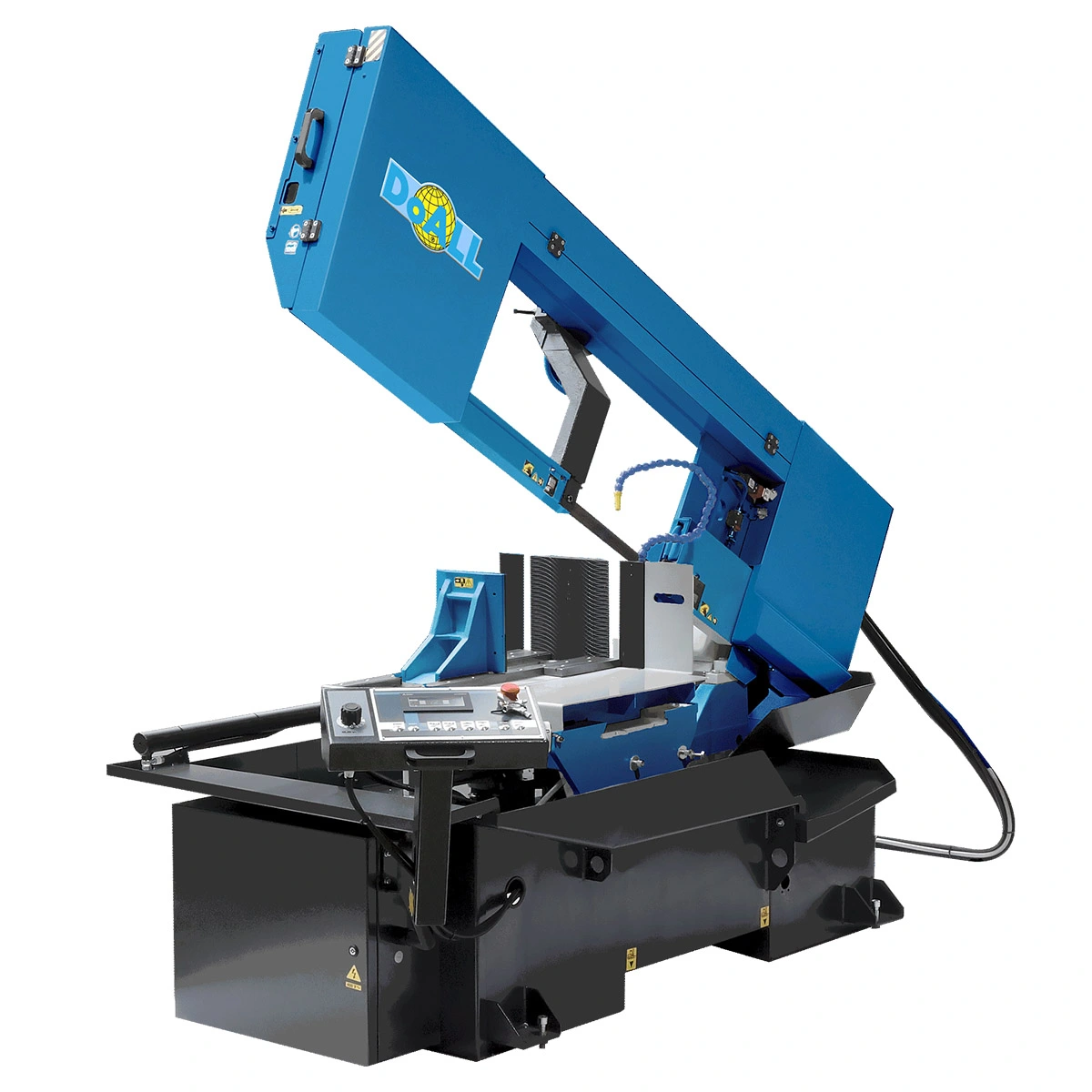

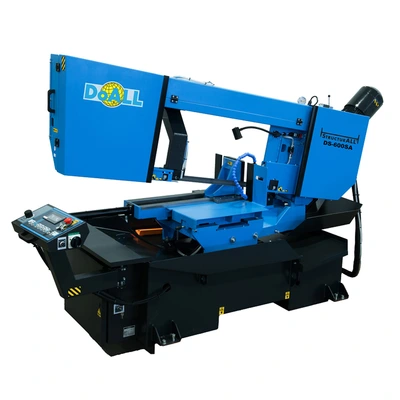

NEW DOALL DCDS-600SA

The DoALL DCDS-600SA model StructurALL® semi-automatic, dual-miter metal-cutting band saw is designed for straight and angled cuts. Miter angle cuts are possible up to 60° left and right. A digital readout comes standard and makes it easy to verify exact cutting angles. Also classified as a horizontal structural, scissor saw, the 17″ x 24″ DoALL DCDS-600SA is ideal for fabrication shops, repair facilities and industrial manufacturing plants that cut tubing and structural shapes and occasional large solids. A large variety of optional accessories are available to customize the machine for specific sawing requirements.
17″ x 24″ New DoAll Horizontal Band Saw Model DCDS-600SA Specifications:

17″ x 24″ New DoAll Horizontal Band Saw Model DCDS-600SA Standard Equipment:
Hydraulic dual swivel head to 60 left to 60 degrees right
Semi-automatic cycle

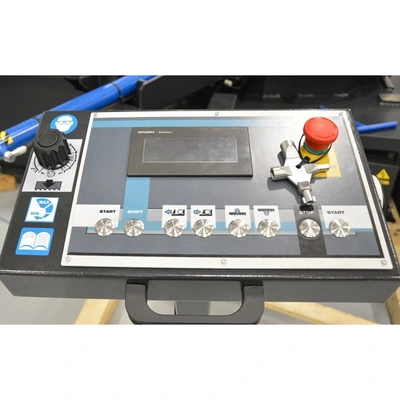

Movable console with Mitsubishi controls
Rapid head down approach
Carbide faced saw guide inserts
Programmable material height sensor
Full stroke hydraulic vise
Driven band cleaning brushes
Infinite band speed controlled by variable frequency drive
Automatic movable guide arm setting
Cast steel band wheels
Feed rate/Feed force
Vertical hold down
Laser line generator
Hydraulic band tension
Recirculating coolant system
Mist band lubricator system
Digitally displayed angle position with hydraulic lock
Variable vise pressure
LED work light
7 degree cant design
Saw blade guards
Band door interlocks
Operation and parts manuals on USB stick
Recommended band speed chart
One (1) complimentary DoALL bi-metal saw blade
Complimentary DoALL cutting fluids package
17″ x 24″ New DoAll Horizontal Band Saw Model DCDS-600SA Optional Accessories:

Cutting capacity round tube 90°: 18.5″
Cutting capacity round solid 90°: 8″
Cutting capacity rectangle 90°: 17″ x 24″
Capacity round at 45°: 5″ – 18.5″
Capacity rectangle at 45°: 16″ x 19″
Capacity round at 60°: 4″ – 13″
Capacity rectangle at 60°: 12″ x 16.5″
Saw blade (width x length): 1.25″ x 238″
Motor HP: 5 Hp
Band speed: 65-328 fpm
Band tension: Hydraulic
Motor HP: 3.8 Hp
Reservoir size: 6 gallon
Flood: Yes
Mist lubricator: Yes
Motor HP: 0.16 Hp
Reservoir size: 8 gallon
Length per stroke: N/A
Maximum index strokes length: N/A
Remnant length at 90°: N/A
W x L x H: 115″ x 70″ x 85″
Material pass height: 31.5″
Machine weight: 3,715 lbs
Voltage requirement (Wye configuration): 460V-60Hz-3ph
Total amp draw (FLA): 11 amps
