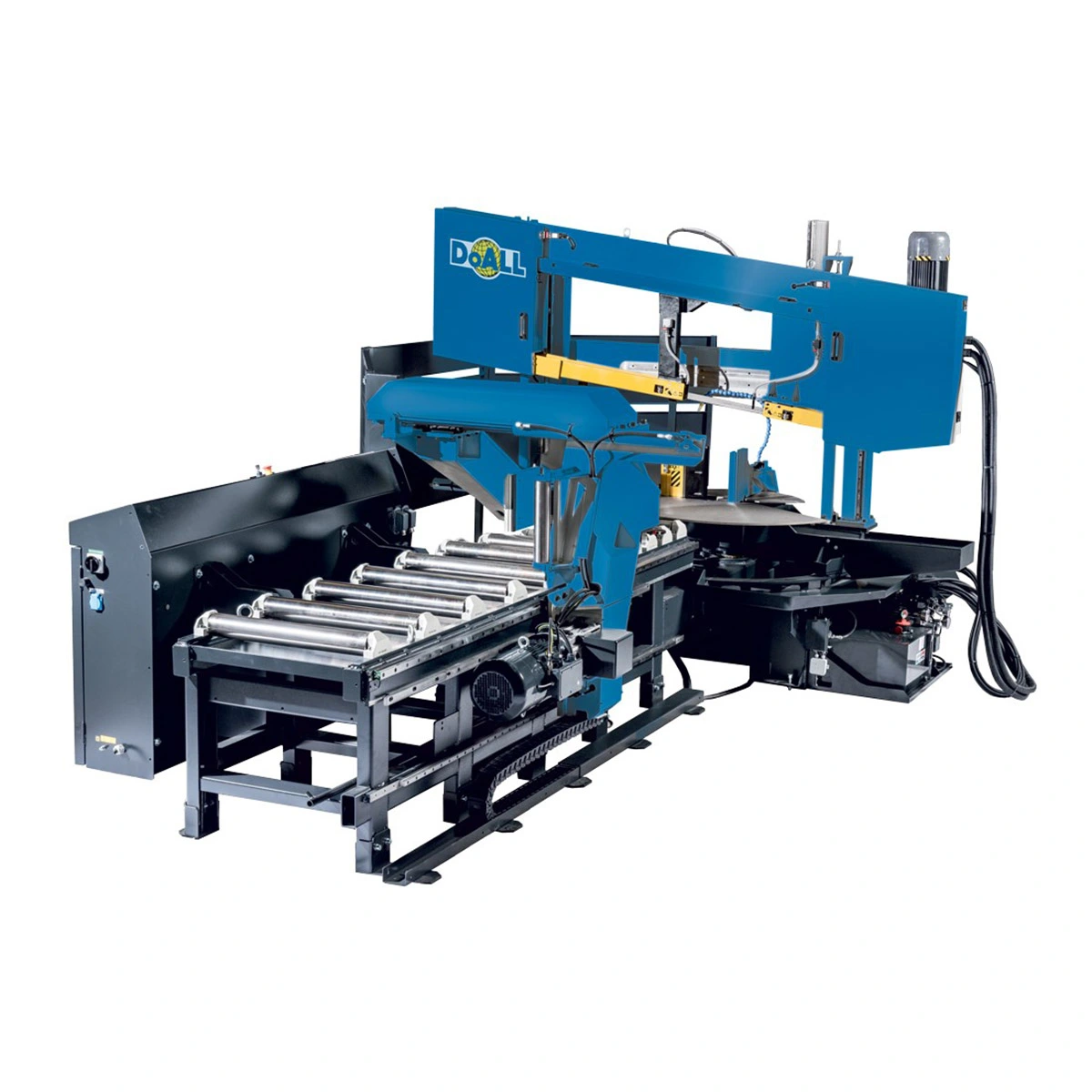

The DoALL DCDS-600CNC high production, horizontal StructurALL®, automatic numeric controlled indexing, dual column, dual mitering metal cutting band saw offers up to 17″ x 24″ (440x600mm) rectangular cutting capacity and 18.5″ round capacity. Also classified as a double column, dual swivel, the DCDS-600CNC is ideal for production sawing of a large variety of materials including, but not limited to, structural solids, stainless and tool steel. The DoALL band saw has a touch display controller for easy operation. The DCDS-600CNC offers high loading capacity and a variety of optional accessories. This hydraulically controlled dual column, automatic metal cutting band saw has a double-swivel head that is able to miter/angle cut at 60° both left and right. The saw blade is set at 7° cant allowing for more efficient cutting. The DCDS-600CNC is the ideal machine for a fabricator cutting multiple angles in the same work piece.
17″ x 24″ New DoALL Horizontal Band Saw Model DCDS-600CNC Specifications:
17″ x 24″ New DoALL Horizontal Band Saw Model DCDS-600CNC Standard Equipment:
Hydraulic dual swivel head to 60 left to 60 degree right
Automatic & semi-automatic cycle
Movable console with Siemens controls
Rapid head down approach
Carbide faced saw guide inserts
Programmable material height sensor
Full stroke hydraulic vises
Driven band cleaning brush
Infinite band speed by variable frequency drive
Automatic movable guide arm setting
Cast steel band wheels
Programmable modified metered feed system
Vertical hold downs
Laser line generator
Hydraulic band tension
Recirculating coolant system
Mist band lubricator system
Digitally displayed angle position with hydraulic look
Variable vise pressure
LED work light
7 degree cant design
Saw blade guards
Band door interlocks
Operation and parts manuals on USB stick
Recommended band speed chart
One (1) complimentary DoALL bi-metal saw blade
Complimentary DoALL cutting fluids package
17″ x 24″ New DoALL Horizontal Band Saw Model DCDS-600CNC Optional Accessories:
Cutting capacity round tube 90°: 18.5″
Cutting capacity round solid 90°: 8″
Cutting capacity rectangle 90°: 17″ x 24″
Capacity round at 45°: 18.5″
Capacity round solid 45°: 5″
Capacity rectangle at 45°: 16″ x 19″
Capacity round at 60°: 13″
Capacity round solid 60°: 4″
Capacity rectangle at 60°: 12.5″ x 16″
Saw blade (width x length): 1.25″ x 238″
Motor HP: 5 Hp
Band speed: 65-328 fpm
Band tension: Hydraulic
Motor HP: 1 Hp
Reservoir size: 12 gallon
Flood: Yes
Mist lubricator: Yes
Motor HP: 0.2 Hp
Reservoir size: 10 gallon
Length per stroke: 78.5″
Maximum index strokes length: 999″
Remnant length at 90°: 5.5″
W x L x H: 139″ x 182″ x 94″
Material pass height: 31.5″
Machine weight: 8,455 lbs
Voltage requirement (Wye configuration): 460V-60Hz-3ph
Total amp draw (FLA): 15 amps
