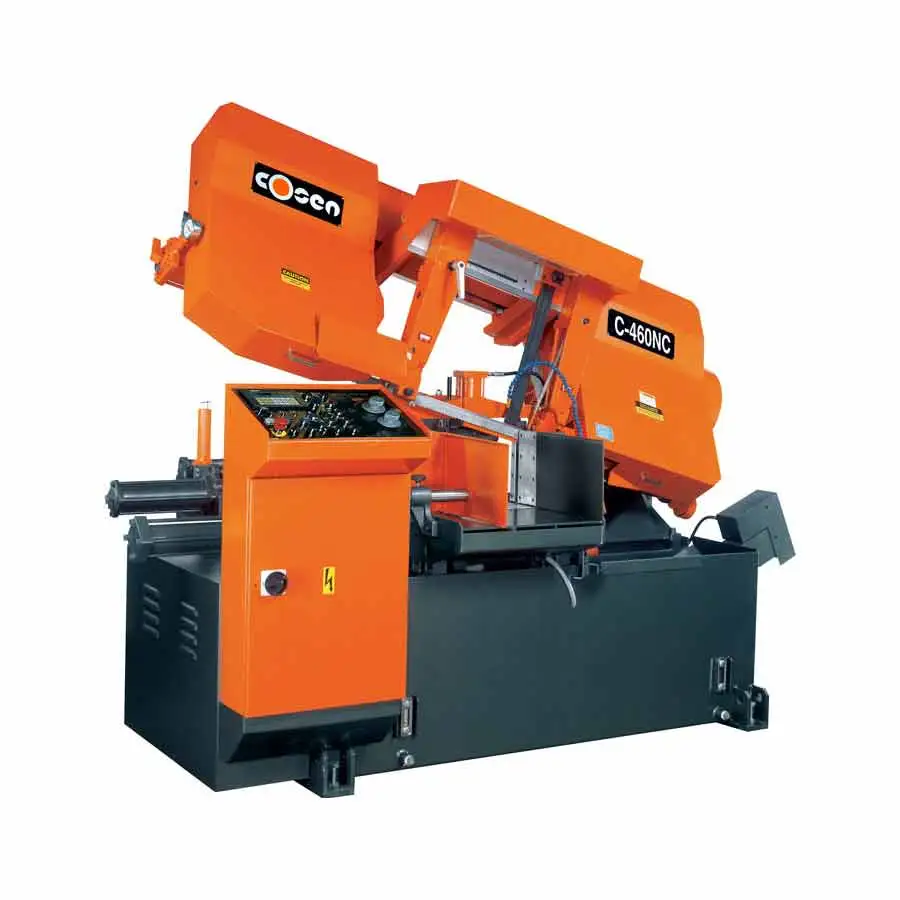

NEW COSEN C-460NC

The New Cosen Model C-460NC comes with Smart NC-100 (SNC-100) technology which provides most of the benefits of NC controlled saws at a mere fraction of the cost. SNC-100 controls are programmable up to 100 different jobs including quantity and length of cut. The controls automatically compensate for Kerf loss after data input and requires no manual calculation of number of times to index. Rugged, dependable, and advanced technology, are all words that describe Cosen’s C-460NC production machine, making it the perfect saw for mass production settings.
18″ x 18″ New Cosen Horizontal Band Saw Model C-460NC Features:
Hydraulic cylinder supports the saw head with ball joint
Gearbox designed to accept high lateral pressure (no thermal distortion)
Inverter blade drive system which allows infinitely variable blade speeds
5.7″ HMI touchscreen
Adjustable flood coolant system
Motor driven, synchronized wire blade brush
Carbide blade guides and bearing provides additional blade support
Rigid cast-iron guide arms
Automatic hydraulic blade tensioning device
Cast-iron hydraulic vise
Split vise jaw for reduced burr
Save-A-Blade feature
Precision feed pressure and feed rate dual valve system for optimal cutting performance
Computer controlled multiple indexing up to 999″ max length
18″ x 18″ New Cosen Horizontal Band Saw Model C-460NC Optional Accessories:
Chip Auger … $3095.00
Top Clamps … $3095.00
Vise Pressure Regulator … $1295.00
Standard Heavy Roller Table 5 ft … $2095.00
Standard Heavy Roller Table 10 ft … $2995.00
Heavy Duty Roller 7″ w Vert. Rollers … $2395.00
Voltage Change to 460 V 3 PH … $995.00

Maximum Cutting Capacity Round: 18″
Maximum Cutting Capacity Square: 18″
Maximum Cutting Capacity Rectangular (HxW): 18″ x 18″
Blade Speed (Variable): 59-328 FPM
Blade Size (LxWxT): 15′ 4″ x 1.5″ x .050″
Blade Motor: 10 H.P.
Hydraulic Motor: 2 H.P.
Coolant Motor: 1/4 H.P
Workbed Height: 34.5″
Weight: 6380 lbs
Floor Space (LxWxH): 91″ x 97″ x 91″
SKU#: 21164
