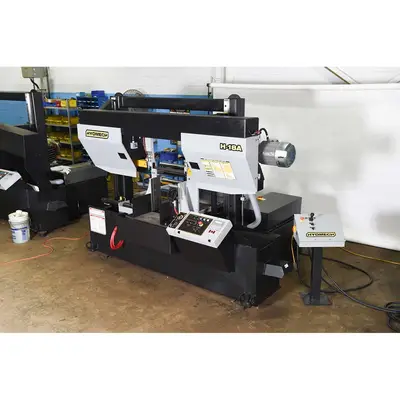

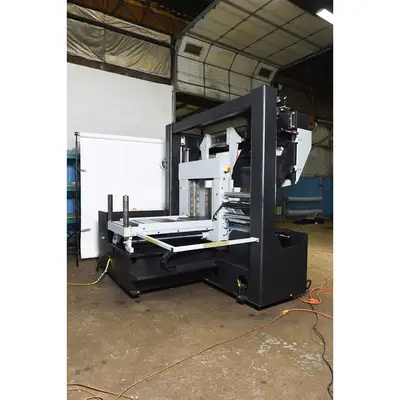

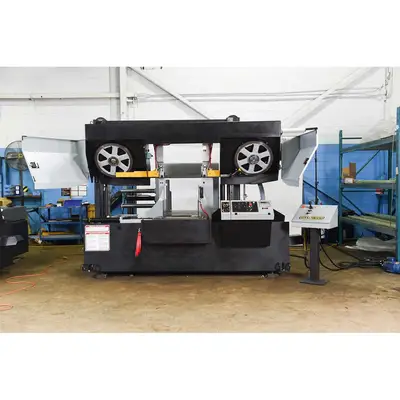

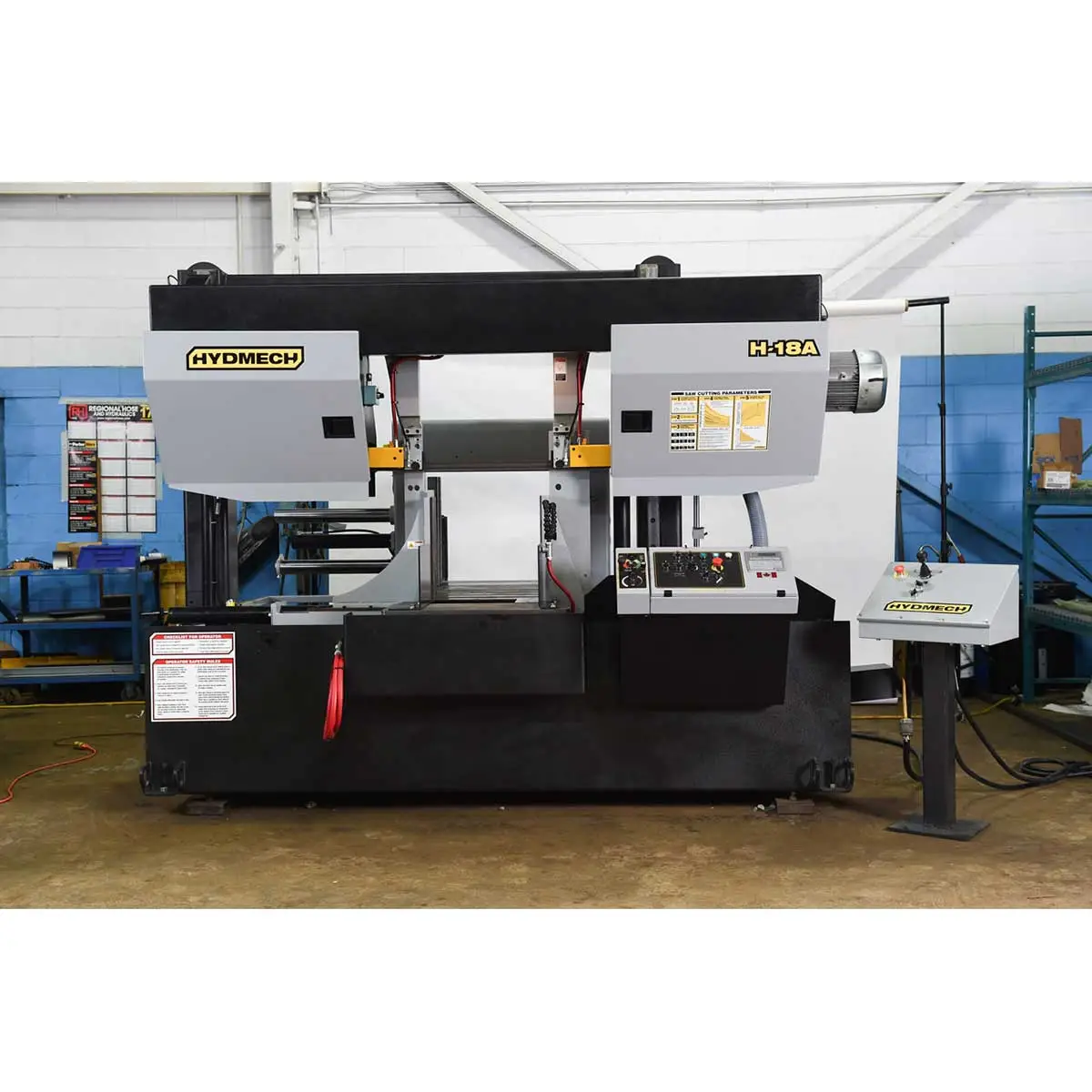

NEW HYD-MECH H-18A

18” x 18” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-18A Specifications:
Standard Features:
One piece design – no alignment necessary
Spilt front vise
Cast iron shuttle features automatic multi-indexing up to 34” in a single stroke with automatic kerf compensation.
Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times.
10 HP VFD. True direct blade drive – no belts/pulleys
Full capacity, full stroking hydraulic vises
Hydraulic positive down feed
High resolution feed rate valve allows for constant feed rate when cutting special alloys
Blade chamber separates material from cut part
Cast iron band wheels
7” Mitsubishi FX5U PLC color touch screen controller. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. Programmable head up position, Built in machine diagnostics on the display screen, Simple Software updates, 999 jobs, 10 jobs in queue.
Replaceable blade brush
Robust steel base
Automatic chip removal auger
Easy access electrical panel and hydraulics
Blade breakage switch
Hydraulic band tensioning with digital readout
Hydraulic carbide guide tensioning
Hardened, replaceable wear plates
Safety door interlocks
Flood coolant with wash down hose
Work light
Variable vise pressure
Out of stock switch

18” x 18” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-18A Optional Features:
Full capacity hydraulic overhead bundling
Blade deviation monitor
Mist lubrication
Vertical alignment rollers
Pedestal control
Laser light
Roller discharge table
Idler conveyors
Powered conveyors
18” x 18” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-18A Optional Accessories:

90° rectangle (h x w): 18″ x 18″
90° round: 18″
90° square: 18″
Blade Drive: 10 HP
Blade Speed: 50-350 SFM
Blade Size: 1.5″ x 19′ 2″
Automatic Multi-Indexing: 0-34″
Table Height: 31″
Voltages Available: 208, 240, 480, 575 v
Weight: 8,500 lbs
Dimensions (w x l x h): 127″ x 88″ x 92″
Coolant Tank Capacity: 30 Gallons
Hydraulic Tank Capacity: 9.5 Gallons
