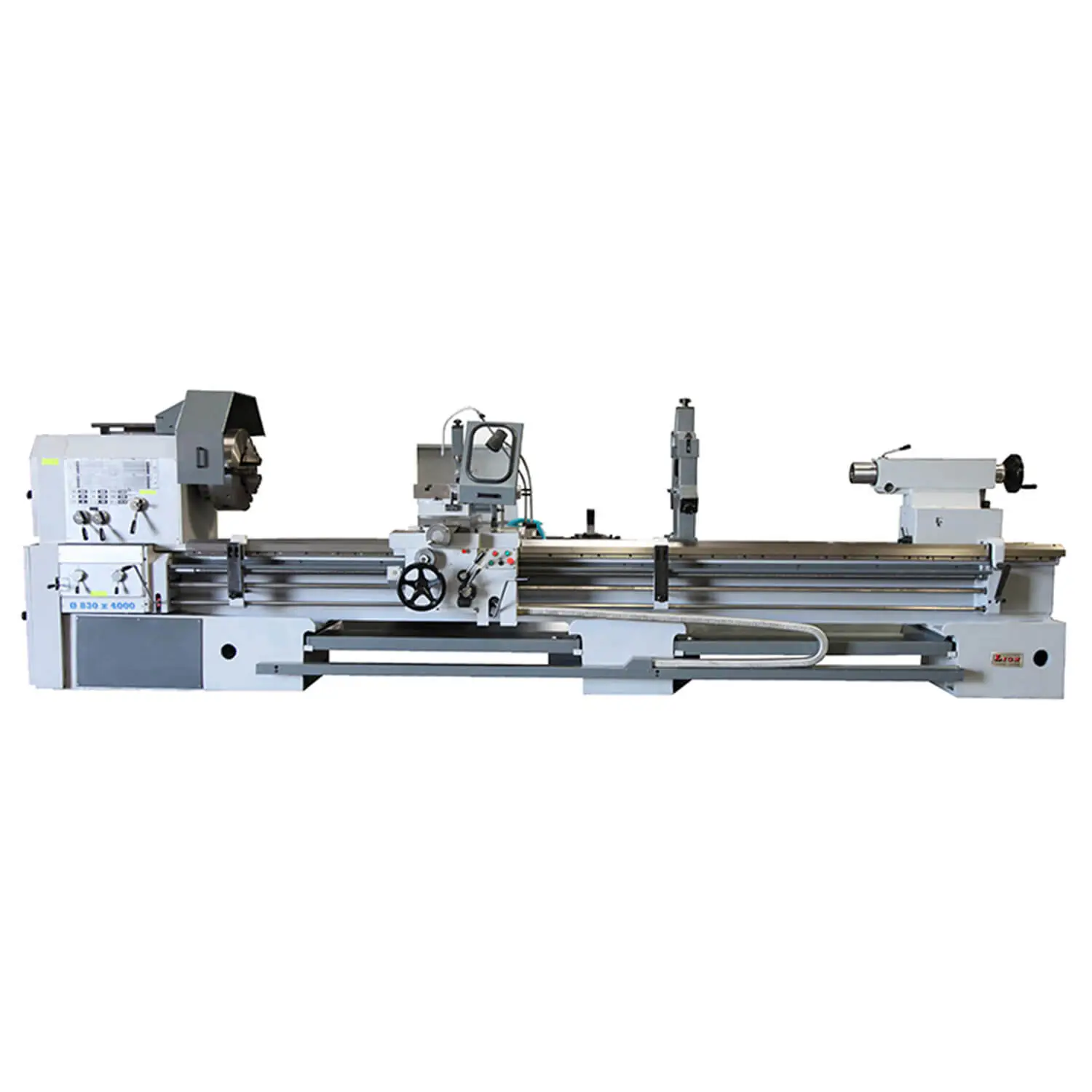

40″ x 236″ New Lion Lathe 40-CU

The 40″ x 236″ New Lion Lathe 40-CU models are heavy duty big swing manual lathes with the versatility and ease of use of a smaller lathe. Both models feature a heavy duty clutched headstock with hardened and ground gears, a large 6” spindle bore, accurate spindle with SKF spindle bearings, removable gap for machining larger parts, Inch & Metric threading without change of gear, and the convenience of a single lever feed joystick which operates feeds and 4-way rapid traverse. These rugged 40″ x 236″ New Lion lathes also features heavy duty monoblock bed construction (cross ribbed) with 22” wide bedways and heavy machine weights. In the range of big swing lathes, these are ideal choices to meet the most demanding of your manual metalworking lathe needs.
Gap Bed
Coolant Pump & Tank
Thread Chasing Dial
Work Light
Chip Tray
Taper Turning Attachment
3-Jaw Chuck
4-Jaw Chuck
Steady Rest
Follow Rest
Splash Guard & Chip Guard

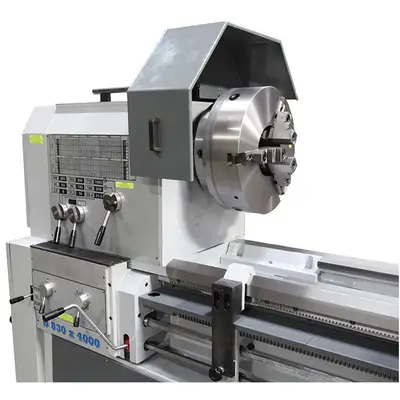

Heavy duty clutched headstock with hardened and ground gears
Removable gap bed
6″ spindle bore with D1-15 spindle nose
Accurate spindle with SKF spindle bearings
Inch & metric threading without change of gear

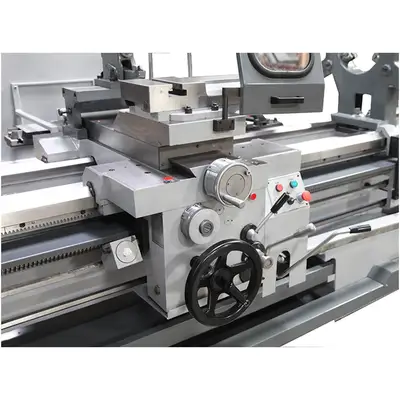

4-way rapid traverse
Tag along feature on tailstock
Monoblock bed construction
22″ wide bedways
Heavy machine weights
40″ x 236″ New Lion Lathe come equipped with a basic starter accessory package of:
Taper Turning Attachment
3-Jaw Chuck
4-Jaw Chuck
Steady Rest
Follow Rest
Splash Guard & Chip Guard
Standard Equipment 40″ x 236″ New Lion Lathe
Coolant Pump & Tank, Thread Chasing Dial, Work Light, And Chip Tray

Swing Over Cross Slide: 27-3/4″
Swing in Gap: 45″
Length in Gap (4-Jaw Chuck): 8″
Distance Between Centers: 236″
Spindle Nose: D1-15
Spindle Bore: 6-1/16″
Spindle Speeds: 16
Spindle RPM: 5.6-1000 RPM
Longitudinal Feeds: 0.0019-0.447
Cross Feeds: 0.0015-0.351
Threading: inch/metric
Spindle HP: 20 H.P. 220V / 440V Opt.
Machine Weight: 20,300 Lbs.
SKU: 1806
