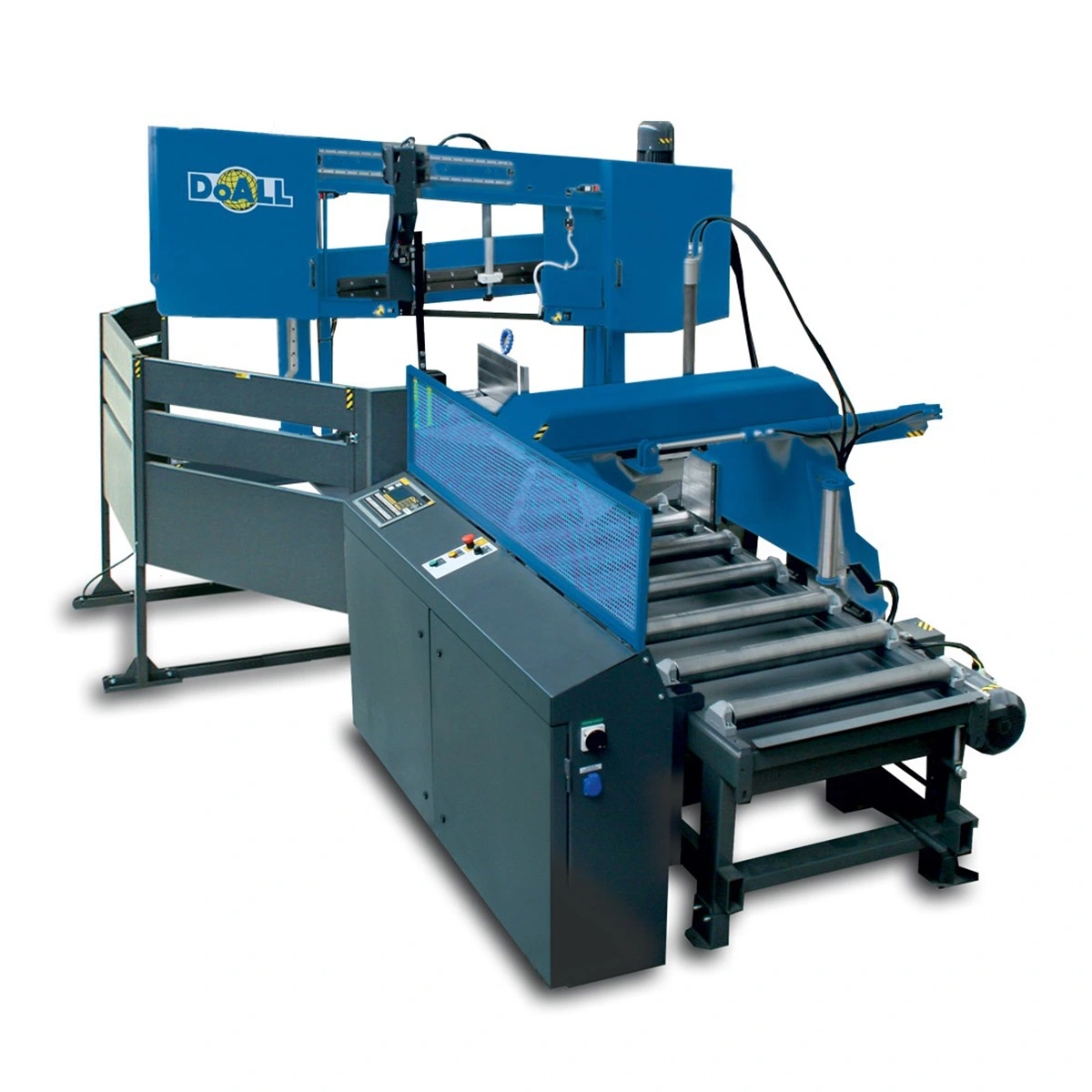

NEW DOALL DCDS-750CNC-X

19″ x 30″ New DoALL Horizontal Band Saw Model DCDS-750CNC-X Specifications:

19″ x 30″ New DoALL Horizontal Band Saw Model DCDS-750CNC-X Features:
Operator Control Console: Control Console extends out beyond the light curtain and can easily be positioned for operator comfort and safety ensuring hands are away from the blade at band start.
Siemens Touch Screen Panel: The Siemens touch screen workstation provides the operator with easy to access job programming along with constant monitoring of jobs while the machine is running in automatic. The work station also monitors and displays blade speed, head feed rate, and head position at all times. It automatically displays any machine errors for ease of any troubleshooting eliminating any long periods of downtime.
Saw Head Design: The saw head is mounted on linear rails which are mounted to two robust columns at a 7 degree cant. The 4 point head mounting system to the columns increases stability of the saw head allowing for increased blade life.
Direct Driven Band Drive: Drive is comprised of an electric VFD controlled motor transferring power thru a gear reduction unit directly to the drive wheel eliminating belt slippage giving positive torque to the saw blade. The drive wheel is supported on the side opposite of the drive to lessen bearing wear and uneven drive wheel wear.
Servo Driven Indexer: The indexer is positioned and driven by a servo motor driven ballscrew system including a rotary encoder which is known for its accuracy. Its 78.5″ single stroke, which can be multiplied, decreases cycle time of the machine allowing for increased production.
Retractable Shuttle Type Index Vise: Both index vise jaws retract when the vise is opened to accommodate the movement of crooked stock increasing accuracy and repeatability. The vise open/close position is constantly monitored to prevent the possibility of collision between the fixed and index vise.
Saw Head Turntable: Robust saw head turntable is hydraulically driven during automatic cycle programming or manually entered RTO (rotate to) function and hydraulically locked in place to prevent head drift eliminating the possibility of scrap parts.
Digital Read Out for Head Positioning: Digital Read Out’s are used for head angular and height positioning. These scales are time honored and known for their rigidity and service in the sawing industry.
Full Stroke Hydraulic Vises: Full stroke hydraulic vises ensure maximum part clamping eliminating the possibility of material movement. Unique designed front vise jaws give maximum clamping pressure near the cut at all times. Variable vise pressure will prevent distortion in thin wall tubing and extrusions.
Multiple Machine Cycles: The machine can be operated in either semi-automatic or automatic mode. In semi-automatic mode the material is placed manually by the operator or by use of the GTO function and clamped in place. The head is placed to the desired angle thru the RTO or rotate function and locked in place. The saw band is started and the cut is completed. In the automatic mode the operator programs the pieces to be cut in one of the 99 jobs, sets the material, and starts the cycle. The machine automatically cycles thru the parts as programmed making it a “hands free” operation.
Hydraulic Blade Tension: Two cylinders located on the front and back of the idler wheel allow for better support of the wheel and lessen bearing wear. The hydraulic tension eliminates the possibility of over/under tightening of the band allowing maximum cutting rates and band life.
Flood Coolant System: Supplies coolant to the blade evenly before and after the cut creating straighter cuts and allowing longer blade life due to coolant being supplied at the tooth tip.
Modified Metered Feed System: Cutting feed rates are regulated by the Siemens Control System consisting of a servo drive, servo motor and ball screw which allows for very precise feed rates. The operator sets the feed rates in the program and the machine does the rest. The system allows regulation of the feed rate through two independent systems: ARP and RZP. ARP automatically regulates the feed rate depending on the resistance of the material and the dulling of the saw blade. RZP allows the operator to break the material into 5 different zones creating a constant feed rate throughout the cut.
Band Wheels: Cast steel band wheels ensure proper band tracking and long life.
CMU: The CMU mode allows in cycle for the material to be backed up to allow for non contact movement of the head to the upper position saving the saw band from dragging on the material which shortens band life.
Warranty: One year parts and service subject to terms and conditions. Optional ten year warranty is available.

19″ x 30″ New DoALL Horizontal Band Saw Model DCDS-750CNC-X Standard Equipment:
Hydraulic dual swivel head to 60 left to 60 degrees right
Automatic & semi-automatic cycle
Movable console with Siemens controls
Rapid head down approach
Spring loaded carbide faced saw guide inserts
Programmable material height sensor
Full stroke hydraulic vises
Driven band cleaning brush
Infinite band speed by variable frequency drive
Automatic movable guide arm setting
Cast steel band wheels
Modified metered feed system
Vertical hold downs
Laser line generator
Hydraulic band tension
Recirculating coolant system
Mist band lubricator system
Digitally displayed angle position with hydraulic lock
Variable vise pressure
LED work light
7 degree cant design
Saw blade guards
Band door interlocks
Operation and parts manuals on USB stick
One (1) complimentary DoALL bi-metal saw blade
Complimentary DoALL cutting fluids package

19″ x 30″ New DoALL Horizontal Band Saw Model DCDS-750CNC-X Optional Accessories:

Capacity round tube 90°: 9″
Capacity round solid 90°: 21″
Capacity rectangle 90°: 19.25″ x 29.5″
Capacity round 45°: 5″
Capacity round solid 45°: 20″
Capacity rectangle 45°: 20″ x 19.25″
Capacity round 60°: 4″
Capacity round solid 60°: 13.75″
Capacity rectangle 60°: 19.25″ x 13.75″
Saw blade (width x length): 1.5″ x 270″
Motor HP: 7.5 Hp
Band speed: 50-490 fpm
Band tension: Hydraulic
Motor Hp: 1 Hp
Reservoir size: 12 gallon
Flood: Yes
Mist lubricator: Yes
Motor HP: 0.2 Hp
Reservoir size: 10 gallon
Length per stroke: 78.5″
Maximum index strokes length: 393″
Remnant length at 90° in auto: 19.5″
W x L x H: 185″ x 237″ x 99″ (w/o safety light curtain)
Material pass height: 32″
Machine weight: 8,477 lbs
Voltage requirement (Wye configuration): 460V-60Hz-3ph
Total amp draw (FLA): 27 amps
