Overview
Type:
Horizontal Dual Column Band Saws
Manufacturer:
DOALL
Model:
DC-510CNC
Stock #:
17090
Description

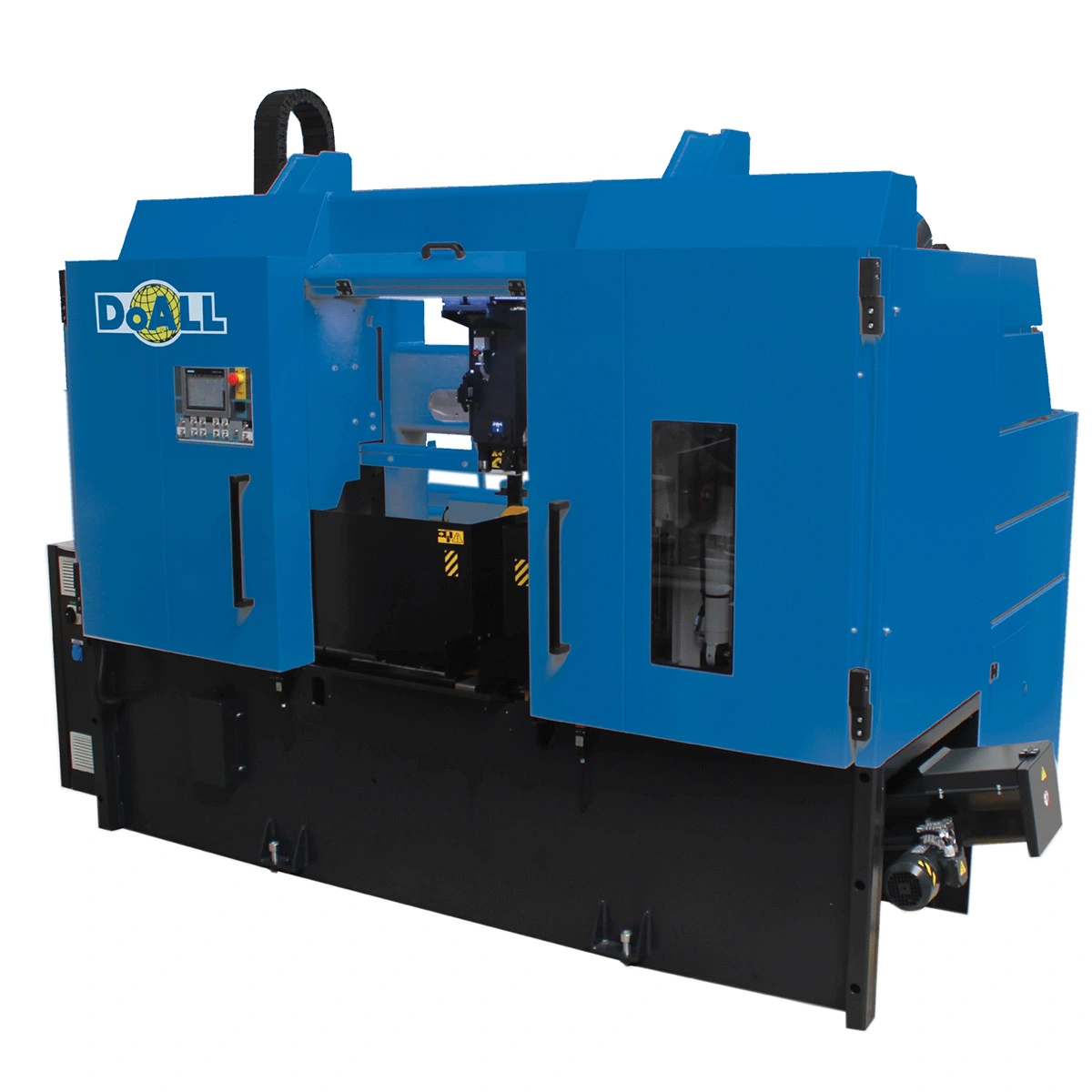

The DC-510CNC high production, horizontal CNC band saws from DoALL are highly efficient, automatic, hydraulically controlled machines with multiple material feeds. Designed for vertical cuts, the DC-510CNC is ideal for serial production in industrial settings. Thanks to the robust construction of the DC-510CNC it is possible to cut a wide range of full and profile materials including stainless and tool steel. In addition, the “box” or enclosed design provides very safe operation. A large variety of optional accessories are available to customize the machine for specific sawing requirements.
20″ x 20″ New DoAll Horizontal CNC Band Saw Model DC-510CNC Specifications:
20″ x 20″ New DoAll Horizontal CNC Band Saw Model DC-510CNC Standard Equipment:
Siemens control with touch screen display
Automatic feed control with programmable feed rates
Work light
Worm chip conveyor for long chips including chip pan
Variable vise pressure control – Set of 2
Dual acting index vise jaws for crooked stock
Hydraulic band tension
Automatic retraction of material in cycle for protection of carbide blades
Power-driven band brush
Flood coolant
Work height sensor
Automatic guide arm setting
One (1) complimentary DoALL bi-metal saw blade
Programmable work height
Tool kit
Complimentary DoALL cutting fluids package
Smart programming to automatically select cutting parameters based on material size and type
Operation and parts manuals on CD or USB data stick

20″ x 20″ New DoAll Horizontal CNC Band Saw Model DC-510CNC Optional Accessories:

Specifications

Cutting capacity at 90° round: 20″
Cutting capacity for round solid: 20″
Cutting capacity at 90° rectangle: 20″ x 20″
Maximum nesting capacity: 19.6″ x 17.7″
Minimum nesting capacity: 3″
Band saw blade dimensions: Width: 2″ x 0.063″
Length: 239″
Band speed: 50-262 fpm
Auto index single stroke min-max: 0.12″ – 26.4″
Auto index multiple stroke max: 394″
Minimum butt end: 4.7″
Band drive motor: 10hp – 25° sloped
Hydraulic pump: 2hp
Coolant pump and capacity: 0.25hp, 13.25 gal
Multiple feed: 393.7″
Material pass line height: 32″
Machine weight: 13,713 lbs
Dimensions W x L x H: 150″ x 95″ x 87″
Machine voltage (Wye configuration required): 460V-60Hz-3ph
