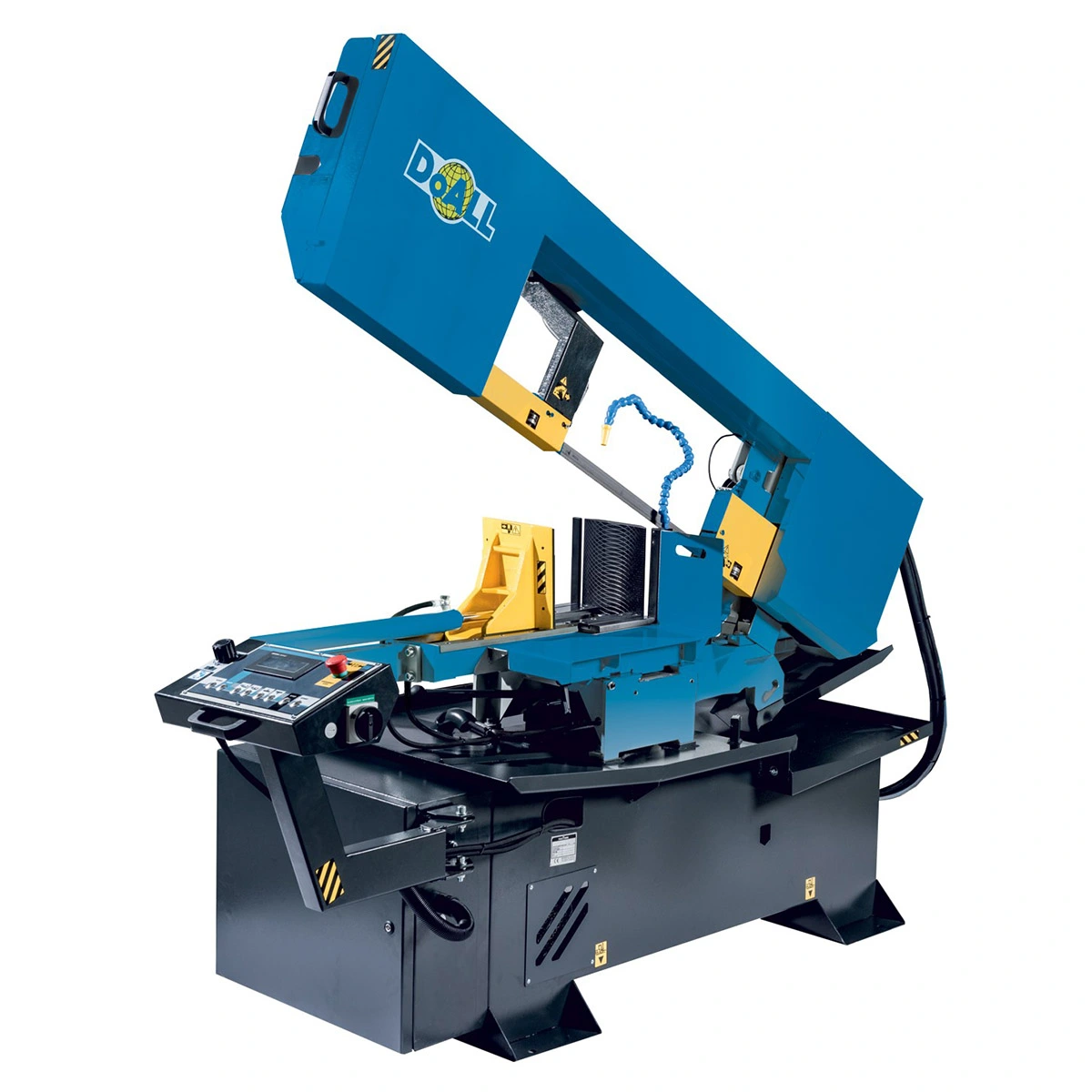

The DoALL DC-500SA StructurALL® semi-automatic, dual-miter metal-cutting band saw is designed for cutting material both linear and at angles. Miter angle cuts are possible up to 60° left and right. A digital readout comes standard and makes it easy to verify exact cutting angles. Also classified as a horizontal structural, scissor saw, the 20″ x 22″ DoALL DC-500SA model is ideal for machine shops, repair facilities and industrial manufacturing plants that need to occasionally cut metal solid and profile material. A large variety of optional accessories are available to customize the machine for specific sawing requirements.
20″ x 22″ New DoAll Horizontal Band Saw Model DC-500SA Specifications:
20″ x 22″ New DoAll Horizontal Band Saw Model DC-500SA Standard Equipment:
Programmable Logic Controller for all electric and hydraulic functions
Speed transmission by worm gear & shaft
Hydraulic blade tension
Two-step full stroke vises
Rapid and creep speed index vice control
Idle wheel motion detector with blade stalling and breakage shutoff
Carbide blade guide with roller bearing
Length setting: Manual setting (optional powered roller and hydraulic cylinder)
Chip auger
Vertical guide rollers
Flushing hose for machine cleaning
Power driven blade-cleaning wire brush
Work light
Tool kit
One 6.5 foot (2 meter) gravity conveyor
Complimentary DoALL Cutting Fluids package
One (1) complimentary DoALL bi-metal saw blade
Instruction and parts manuals on CD or USB data stick
20″ x 22″ New DoAll Horizontal Band Saw Model DC-500SA Optional Accessories:
Round: 20″
Rectangle: 20″ x 22″
Saw blade (length x width x gage): 215″ x 1.5″ x 0.05″
Motor HP: 10 Hp
Band speed: 52-430 fpm
Motor HP: 2 Hp
Capacity: 29 gallon
Maximum: 18.9″ x 9.4″
Minimum: 9.4″ x 3″
Motor: 1/4 Hp
Capacity: 29 gallon
W x L x H: 114″ x 61″ x 71″
Material pass line height: 29.5″
Machine weight: 5,732 lbs
Voltage requirement (Wye configuration): 230V-60Hz-3ph
