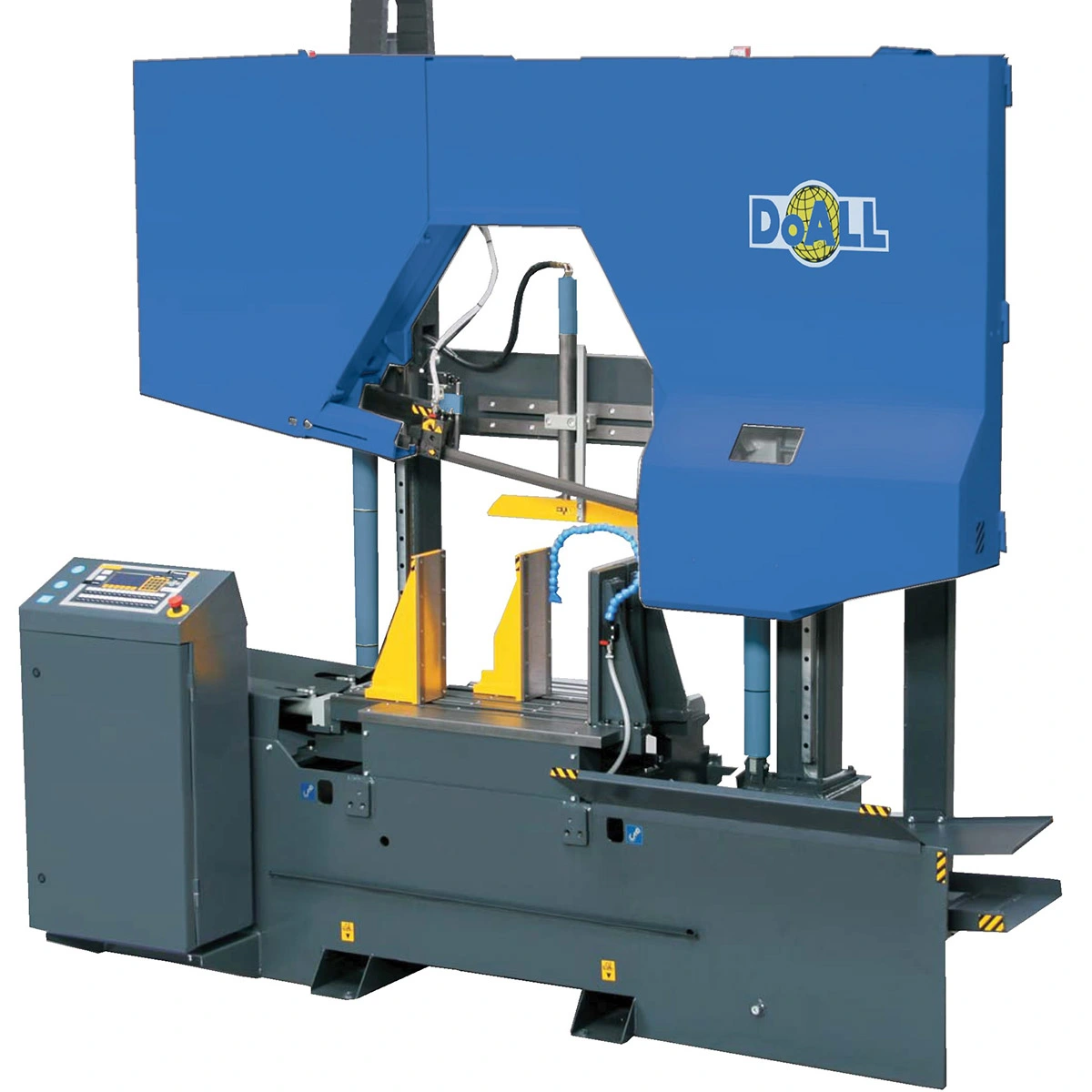

NEW DOALL TDC-600SA

The DoALL Olympia™ TDC-600SA high production, horizontal tube cutting band saws from DoALL are highly productive semi-automatic, hydraulically manipulated dual column machines. The 20″ x 24″ DoALL tube band saw offers a unique construction with three pulleys and blade that is 10° cant to guarantee high-efficiency cutting. The TDC-600SA model is designed for vertical cuts and is ideal for cutting all types of tube and pipe. The DoALL TDC-600 features robust construction which enables the ability to cut wide range of materials including stainless and tool steel. After starting the machines, the vices clamp automatically, the cut is made via the operations panel so the only activity for the operator is to control the material.
20″ x 24″ New DoALL Horizontal Band Saw Model TDC-600SA Specifications:

20″ x 24″ New DoALL Horizontal Band Saw Model TDC-600SA Standard Equipment:
Mitsubishi Programmable Logic Controller for all machine functions
Fine adjustable head feed control
Infinite band speed controlled variable frequency drive
10 degree cant head design
Band speed digitally displayed
Full stroke cylinders with independent vices clamping fore and aft of the sawblade
Variable vise pressure control
Carbide faced saw guide inserts with lead in rollers
Hydraulic rear vise nesting
Adjustable power driven band cleaning brushes
Cast steel band wheels
LED work light
Flushing hose for machine wash down and auxiliary coolant nozzles
Mist-style saw band lubricator
Hydraulic band tension
Saw band break/stall motion detector shut off switch
Band door interlocks
Laser line generator
Operation and parts manuals on USB stick
Maintenance tool kit
Complimentary DoALL cutting fluids package
One (1) complimentary DoALL bi-metal saw blade
20″ x 24″ New DoALL Horizontal Band Saw Model TDC-600SA Optional Accessories:

Capacity at 90° rectangle: 20″ x 24″
Capacity at 90° round solid: 10″
Capacity at 90° round tube: 24″
Saw blade (width x length): 1.5″ x 244″
Motor Hp: 5 Hp
Band speed: 65-328 fpm
Band tension: Hydraulic
Motor Hp: 1 Hp
Reservoir size: 3.5 gallon
Flood: Yes
Mist lubricator: Yes
Motor Hp: 0.16 Hp
Reservoir size: 24 gallon
Length per stroke: N/A
Maximum index strokes length: N/A
Remnant length: N/A
W x L x H: 119″ x 54″ x 91″
Material pass height: 31.5″
Machine weight: 5,688 lbs
Voltage requirement (Wye configuration): 460V-60Hz-3ph
Total amp draw (FLA): 15 amps
