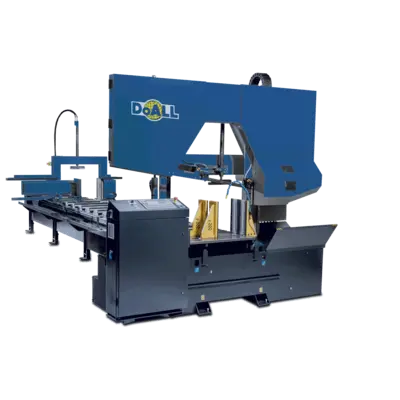

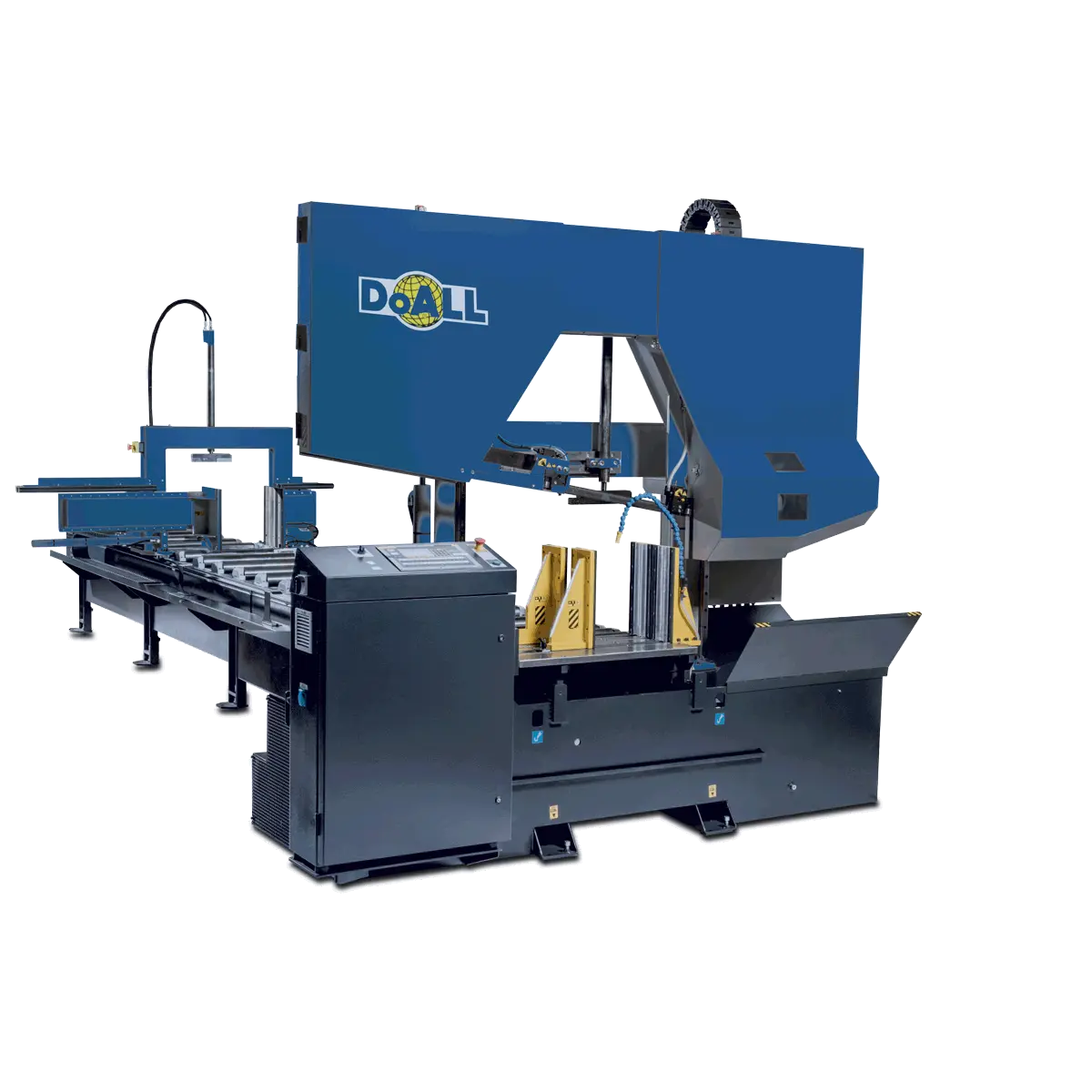

NEW DOALL TDC-600CNC
Overview
The DoALL Olympia™ TDC-600CNC is an automatic, dual column, CNC metal-cutting band saw specially designed to cut large tube and pipe. The TDC-600CNC offers bundling to save time and money in high production environments like metal service centers. Also classified as a horizontal power specialty tube cut-off saw, the TDC-600CNC ships with a work light, work height sensor and discharge chute. A large variety of optional accessories are available to customize the machine for specific sawing requirements. The saw blade is 10° cant for high-efficiency cutting on a wide range of structural shapes and configurations of tubing. The TDC-600CNC now includes a chain chip conveyor as standard equipment.
20″ x 24″ New DoALL Horizontal Band Saw Model TDC-600CNC Specifications:
20″ x 24″ New DoALL Horizontal Band Saw Model TDC-600CNC Standard Equipment:
Colored Siemens touch screen
Automatic & semi-automatic cycle
Chain driven chip conveyor
Rapid head down approach
Carbide faced saw guide inserts with lead in bearings
Programmable material height sensor
Full stroke hydraulic vises
Electric driven band cleaning brush
Infinite band speed by variable frequency drive
Outboard clamping discharge vise
Cast steel band wheels
Programmable modified metered feed system
Vertical hold downs
Hydraulic band tension
Recirculating coolant system
Mist band lubricator system
Digitally displayed angle position with hydraulic lock
Variable Vise Pressure
LED work light
10 degree cant design
Saw blade guards
Band door interlocks
Operation and parts manuals on USB stick
Laser line generator
One (1) complimentary DoALL Bi Metal saw blade
Complimentary DoALL Cutting Fluids package
20″ x 24″ New DoALL Horizontal Band Saw Model TDC-600CNC Optional Accessories:
Specs
Cutting capacity round tube: 24″
Cutting capacity round solid: 8″
Cutting capacity rectangle 90°: 20″ x 24″
Saw blade (width x length): 0.75″ x 245″
Motor Hp: 5 Hp
Band speed: 65-328 fpm
Band tension: Hydraulic
Motor Hp: 1 Hp
Reservoir Size: 12 gallon
Flood: Yes
Mist lubricator: Yes
Motor HP: 1.6 Hp
Reservoir size: 10 gallon
Length per stroke: 78.5″
Maximum index strokes length: 999″
Remnant length at 90°: 9.5″
W x L x H: 119″ x 158″ x 91″
Material pass height: 31.5″
Machine weight: 8,003 lbs
Voltage requirement (Wye configuration): 460V-60Hz-3ph
Total amp draw (FLA): 14.2 amps
