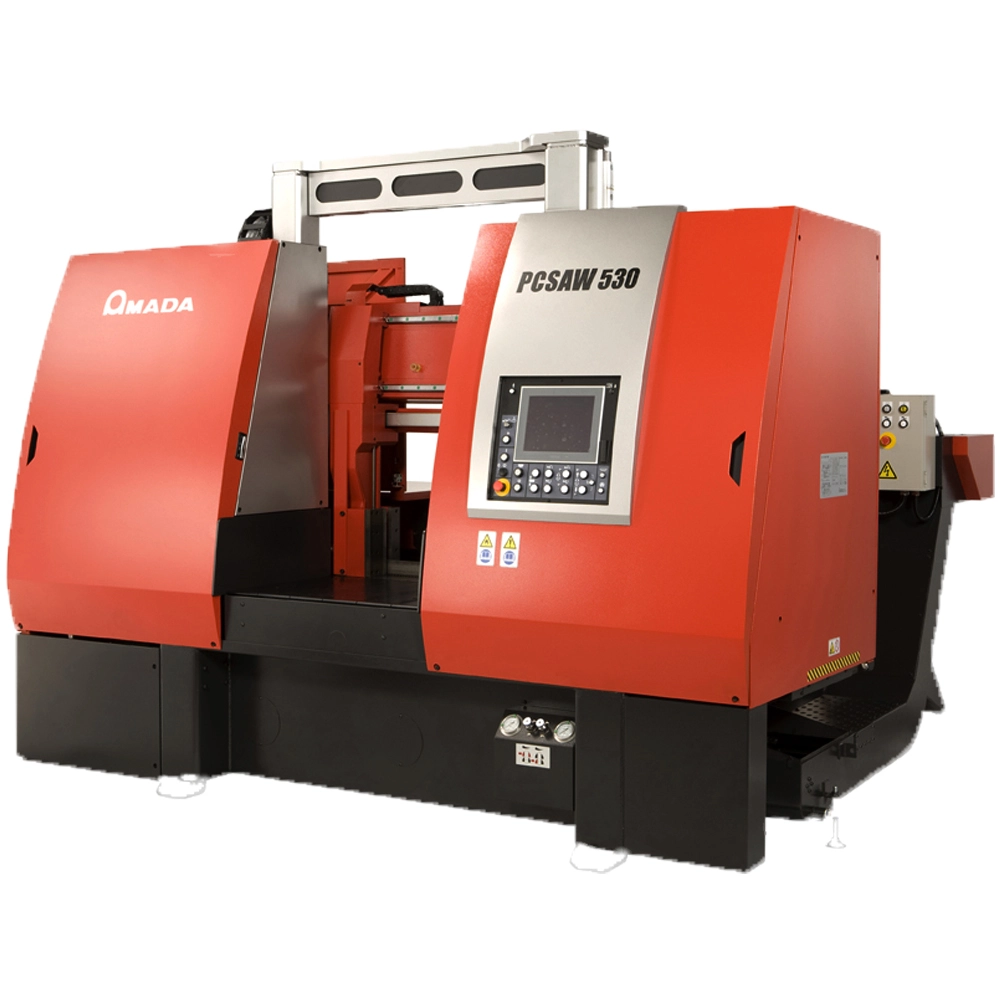

NEW AMADA PCSAW530X/AX

21″ x 21″ New Amada Horizontal Pulse Cutting Band Saw Model PCSAW530X/AX Specifications:

21″ x 21″ New Amada Horizontal Pulse Cutting Band Saw Model PCSAW530X/AX Standard Features:
MOTION DETECTOR
FULL STROKE VISES
BLADE DEVIATION MONITOR
VERTICAL PULSE CONTROL
LARGE AREA CHIP CONVEYOR
3D AUTOMATIC ADJUSTING WIRE BRUSH
WINDOWS®-BASED CNC CONTROLS
BLADE SPEED CONTROLLED BY INVERTER
CUTTING FLUID LEVEL DETECTOR
HYDRAULIC BLADE TENSIONING
AUTOMATIC POSITIONED GUIDE ARM
FEED SYSTEM CONTROLLED BY SERVO MOTOR DRIVEN BALL SCREW (PCSAW530X)
FEED CONTROLLED BY NC HYDRAULIC SYSTEM (PCSAW530X)

21″ x 21″ New Amada Horizontal Pulse Cutting Band Saw Model PCSAW530X/AX Optional Accessories:
ROLLER TABLE 6′
ROLLER TABLE 10′
VERTICAL CLAMPS
RETURN CONVEYOR
VISE PRESSURE CONTROL
EXTERNAL GOOSE NECK CHIP CONVEYOR
NON-POWERED ROLLER TABLE
EXTENDED WARRANTY: Regular 1 year + Additional 1 year = Total 2 years

About Us
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, and Instagram.
Worldwide Machine Tool LLC.

Terms and Conditions: https://www.worldwidemachinetool.com/terms-conditions/
All product information including but not limited to price, specifications, color, photos, equipped with and features are subject to change.

Round (diameter): 1.18″-20.87″
Rectangle (W x H): 20.87″ x 20.87″
Work Load Capacity: 10,141 lbs
Blade Size (L x T x W): 22’11” x 0.063″ x 2-5/8″
Blade Speed: 49-394 ft./min by Inverter
Top Limit Setting: Automatic Setting with Quick Approach Feeler
Cutting Control: PCSAW530X: Windows Based CNC Control, Hydraulic Flow Control Valve with Stepping Motor
PCSAW530AX: Windows Based CNC Control, Servo Motor with Ball Screw
Type: Main Split Vise and Rear Vise
Control: Hydraulic Full-Stroke Cylinder
Saw Blade: 20 HP
Hydraulic Pump: 3 HP
Pulse Cutting: 1/8 HP
Wire Brush: 1/2 HP
Cutting Fluid Pump: 1/2 HP
Power Supply Voltage: AC220V±10%, 3 PH, 60 Hz All Other Voltages Require Transformer
Power Requirement: PCSAW530X: 33 kVA
PCSAW530AX: 34 kVA
Tank Capacity: 50.2 gal
Pump Type: Centrifugal Electric
Pump Capacity: 5.3 gal/min
Tank Capacity: 7.34 gal
Pump Type: Piston Pump
Pressure Setting: 753.8 psi
Chip Disposal: Built-in Wide Scraper Style Chip Conveyor
Index Mechanism: Shuttle Vise
Stroke: 19.685″
Length: 0.394″-393.70″
Number of Input Block/Station: 1-99
Number of Cut-Off Pieces: 1-9999
Remnant Length: 3.94″ Plus Length of Parts
PCSAW530X Head-Up Position: 127.6″ x 83.2″ x 102.9″
PCSAW530X Head Down Position: 127.6″ x 83.2″ x 96.9″
PCSAW530AX Head-Up Position: 127.6″ x 83.2″ x 102.5″
PCSAW530AX Head Down Position: 127.6″ x 83.2″ x 102.5″
Table Height: 31.5″
Machine Weight: 12,125 lbs
