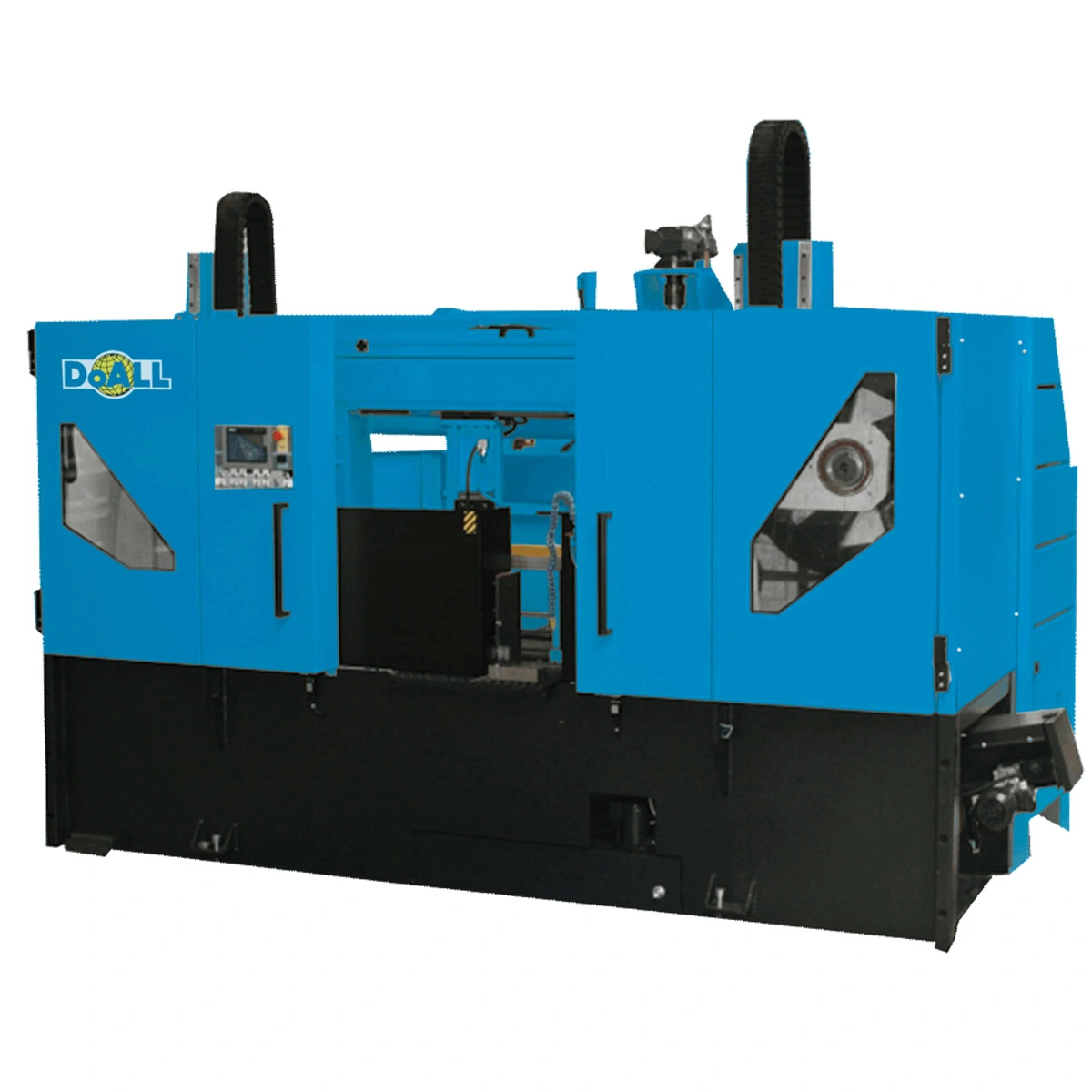

The DC-620CNC Hercules II™ high production, horizontal CNC enclosed band saws from DoALL are highly efficient, automatic, hydraulically controlled machines. The DoALL DC-620CNC model operates with a ball screw servo motor using “SMART” controls. Thanks to the robust construction of the DC-620CNC, it is possible to program and cut a wide range of full and profile materials including stainless and tool steel. In addition, the “box” or enclosed design provides very safe operation. A large variety of optional accessories are available to customize the machine for specific sawing requirements.
21.5″ x 24.5″ New DoALL Horizontal Band Saw Model DC-620CNC Specifications:
21.5″ x 24.5″ New DoALL Horizontal Band Saw Model DC-620CNC Standard Equipment:
Siemens control with touch screen display
Smart programming to automatically select cutting parameters based on material size and type
Automatic material feed situated close to saw blade
Automatic feed control with programmable feed rates
Work light
Worm chip conveyor for long chips including chip pan
Variable vise pressure control – Set of 2
Dual acting index vise jaws for crooked stock
Hydraulic band tension
Automatic feed of material into cutting zone
Retractable stationary machine vice jaw
Automatic retraction of material in cycle for protection of carbide blade
Hydraulic blade clamping in saw guides
Feeder and bow movements using linear-leading ball screw and servo motor
Dynamic adjustment of feed rate to ensure square-ness
Power-driven band brush
Automatic guide arm setting
Programmable work heights
Tool kit
Operation and parts manuals on CD or USB data stick
One (1) complimentary DoALL bi-metal saw blade
Complimentary DoALL cutting fluids package
Flood coolant
21.5″ x 24.5″ New DoALL Horizontal Band Saw Model DC-620CNC Optional Accessories:
Capacity at 90° rectangle: 21.5″ x 24.5″
Capacity at 90° round tube: 21.5″
Capacity at 90° round solid: 21.5″
Maximum nesting capacity: 21.5″ x 13.75″
Minimum nesting capacity: 3″
Band saw blade dimensions: Width: 2″ x 0.063″
Length: 302″
Band speed: 50-500 fpm
Auto index single stroke min-max: 0.12″ – 29.5″
Auto index multiple stroke max: 394″
Minimum butt end: 1.4″
Band drive motor: 20hp
Hydraulic pump and capacity: Info coming soon
Coolant pump and capacity: Info coming soon
Material pass line height: 31.5″
Machine weight: 17,052 lbs
Dimensions W x L x H: 157″ x 91″ x 115″
Machine voltage (Wye configuration required): 460V-60Hz-3ph
