Overview
Type:
Horizontal Dual Column Band Saws
Manufacturer:
AMADA
Model:
H-550EII
Stock #:
35859
Description

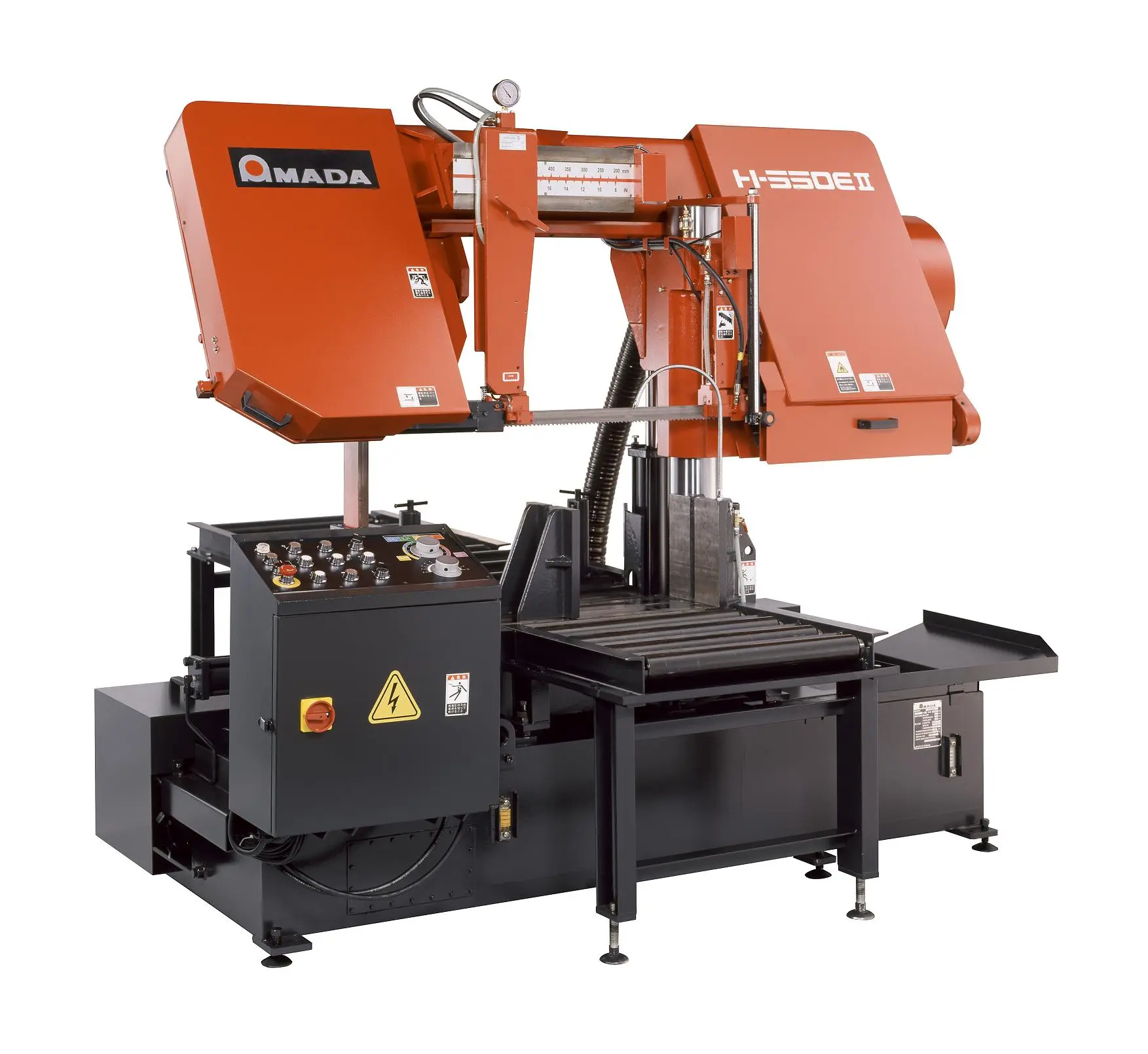

22″ x 19″ New Amada Horizontal Billet Band Saw Model H550EII Specifications:

22″ x 19″ New Amada Horizontal Billet Band Saw Model H550EII Standard Features:
PRESSURE FLOW VALVE: The cutting process can be optimized just by setting up the Pressure Flow Valve to the target “material, shape, and size”.
CUTTING DEPTH SETTING UNIT: The blade descends horizontally. Tooling and dovetail grooving can be easily handled by adjusting a cutting end height.
LIGHT BEAM: The light beam unit allows for easy alignment of marks. One-touch operation of the manual feeder unit moves workpieces back and forth. In addition, the user-friendly double vise system is installed to clamp materials.
CHIP CONVEYOR
MOTION DETECTOR
LIGHT BEAM MARKING UNIT
VARIABLE BLADE SPEED DRIVE
BLADE DEVIATION MONITOR
CUTTING DEPTH CONTROL
BLADE HOUR METER
CUTTING RATE DISPLAY
REMOTE BLADE GUIDE CONTROL
WHEEL COVER LIMIT SWITCH

22″ x 19″ New Amada Horizontal Billet Band Saw Model H550EII Optional Features:
BEACON
HYDRAULIC ROLLER TABLE
IDLER ROLLER TABLE
VERTICAL CLAMP
VISE PRESSURE CONTROL VALVE

Specifications

Round (diameter): 7.87″-18.9″
Rectangle (W x H): 21.65″ x 18.9″
Work Load Capacity: 4,409 lbs
Blade Size (L x T x W): 16′ x 0.050″ x 1.5″
Blade Speed: 56, 82, 115, 148, 180, 213, 246 ft/min
Tension Control: Hydraulic
Top Limit Setting: Manual Setting
Cutting Control: Hydraulic Pressure & Flow Control Valve
Type: Main Split Vise
Control: Hydraulic Full Stroke Cylinder
Saw Blade: 7.5 HP
Cutting Fluid Pump: 1/2 HP
Hydraulic Pump: 2 HP
Power Supply Voltage: AC220V±10%, 3 PH, 60 Hz, Required at factory voltage setting
Power Requirement: 10 kVA
Tank Capacity: 21.1 gal
Pump Type: Electric
Tank Capacity: 18.5 gal
Pressure Setting: 498 psi
Chip Disposal: Chip Conveyor
Head-Up Position: 107.2″ x 72.8″ x 80.9″
Head Down Position: 107.2″ x 72.8″ x 68.7″
Table Height: 26.7″
Machine Weight: 4,629 lbs
