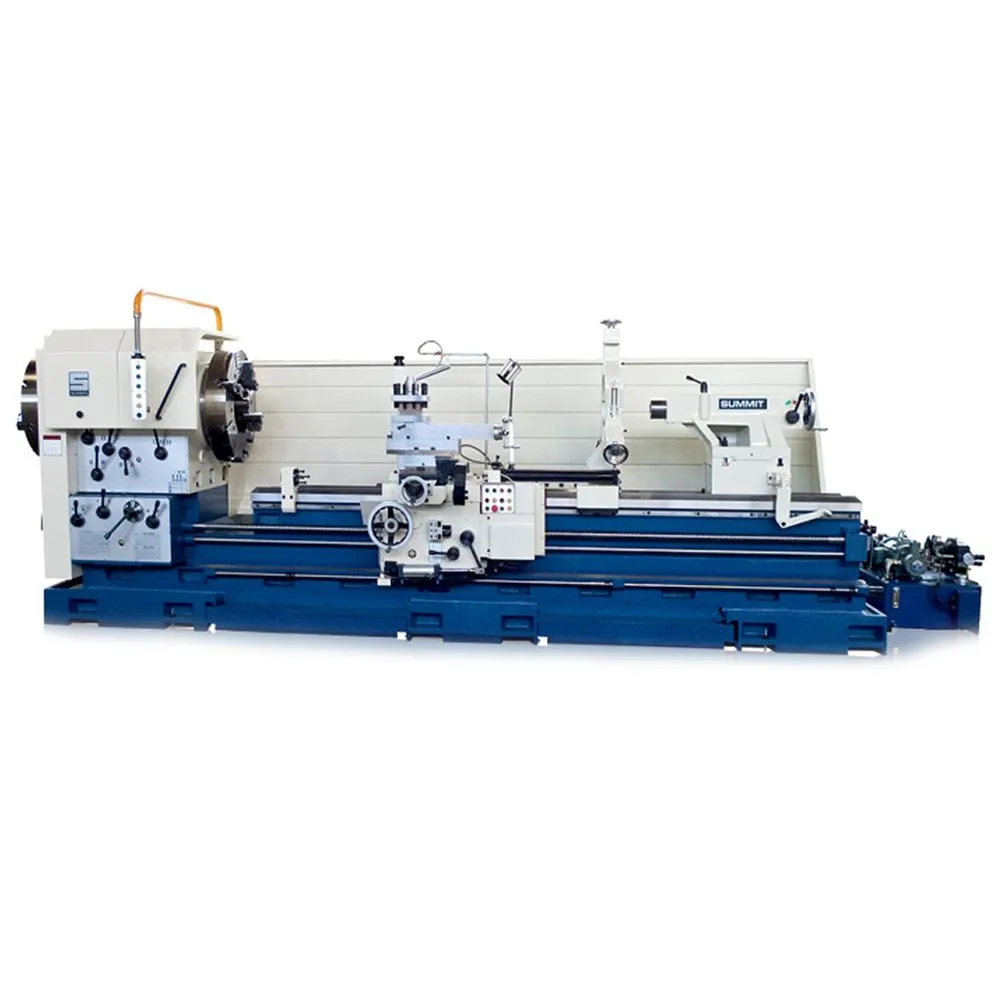

42″ Hollow Spindle Oil Country Metal Lathes
The newly redesigned Summit 42″ Series Oil Country Lathes are designed to provide the precision and rugged reliability required for today’s machining applications. This series is available in center distances from 80″ to 360″, with large spindle bores ranging from 6.1″ up to 14.1″ to cover a wide range of workpieces. Castings are heavily ribbed for rigidity and vibration dampening. The headstock is designed with straight cut final drive gears to provide quiet and efficient operation through the full range of spindle speeds. The extra wide 22″ bed ways are hardened and precision ground to provide high accuracy and long life. The bed is constructed from high-grade alloyed cast iron, normalized and aged to achieve maximum stability. A third way on the front of the bed provides additional support to the carriage in order to prevent deflection even in the heaviest cuts.

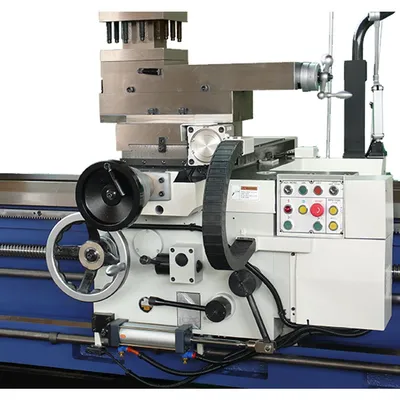

Apron & pendant controls for operator flexibility

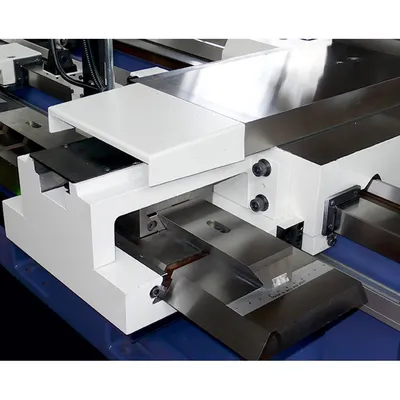

Hardened & precision ground bed ways for long-lasting accuracy
Quick change gearbox will cut American (inch), Metric and Module pitch threads
Rapid traverse on carriage (4 way)
Hugh 6″, 9″, 12″ & 14″ spindle bores for maximum workpiece flexibility
Sliding chuck guards for quick and safe workpiece access
Removable gap (80″, 120″ & 160″)
Thread dial
Steady rest (5.9″-14.9″)
Follow rest
Complete coolant system with chip pans and splash guards
Taper attachment incremented in both degrees and inches per foot
Work light

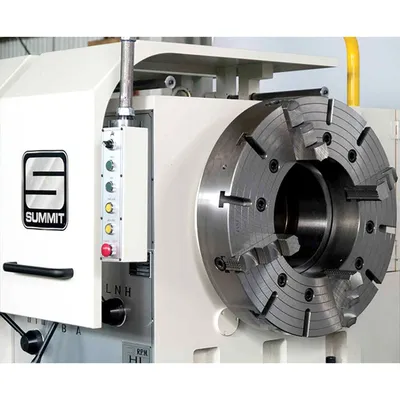

42-6 Series equipped with 20″ 3 jaw chuck and 32″ 4 jaw chuck
Optional removable gap available on 200″ centers and larger
Quick change tool post with holders
Electronic digital readouts
Wide range of work holding devices
40 HP main motor
Hydraulic semi-automatic threading device for fast threading
Swing over bed: 41.7″
Swing over cross slide: 29.5″
Swing over gap (optional removable gap on 200″ centers and larger): 63.4″
Spindle Bore: 6.1″
Spindle Speeds: (12) 9-600 RPM’s
Spindle Nose Type: A2-11
Threads per inch-number/range: (48) 1-15
Metric threads-number/range: (48) 2-30
Travel of spindle barrel: 11.8″
Diameter of spindle barrel: 4.9″
Tailstock center: #6 MT
Width of bed: 22″
Main drive motor: 30 HP
Dimensions (LxWxH): 449″ x 63″ x 93″
Machine Weight: 39,400 lbs approx.
