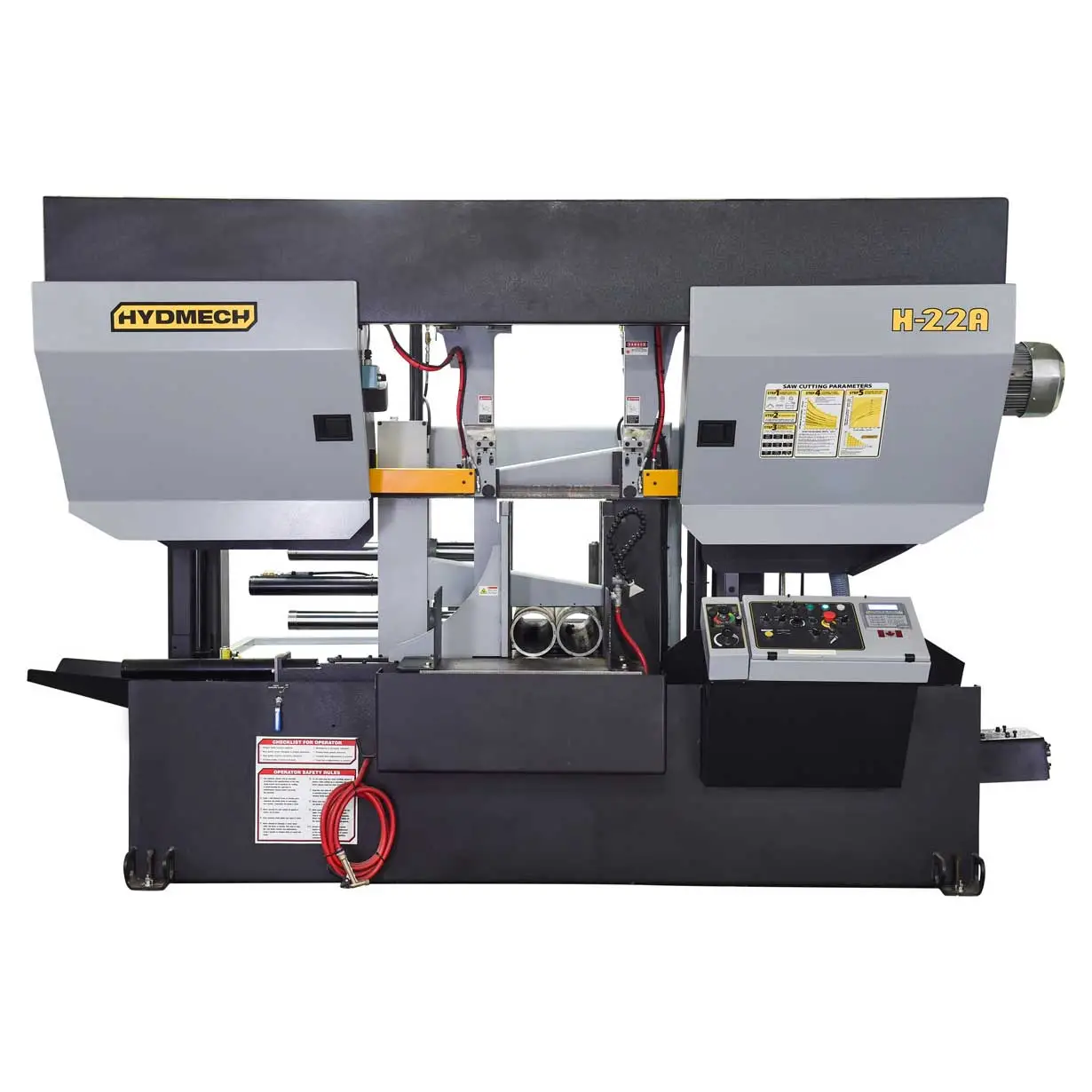

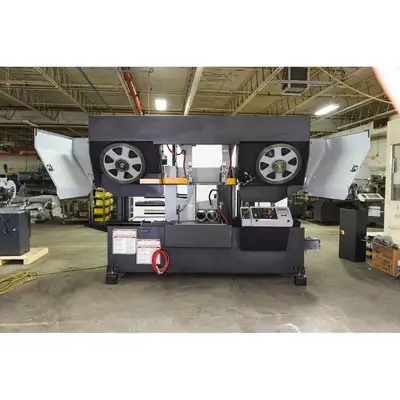

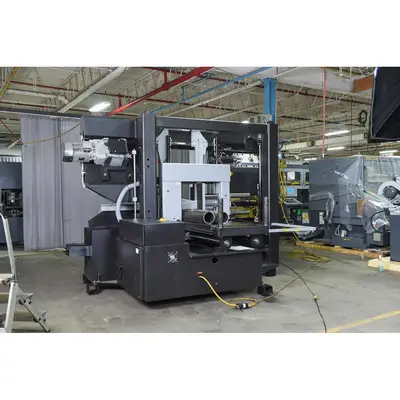

NEW HYD-MECH H-22A

22” x 22” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-22A Specifications:
Standard Features:
One piece design – no alignment necessary
Spilt front vise
Cast iron shuttle features automatic multi-indexing up to 34” in a single stroke with automatic kerf compensation.
Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times.
Hydraulic positive down feed
10 HP VFD. True direct blade drive – no belts/pulleys
Full capacity, full stroking hydraulic vises
Blade chamber separates material from cut part
High resolution feed rate valve allows for constant feed rate when cutting special alloys
Cast iron band wheels
7” Mitsubishi FX5U PLC color touch screen controller. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. Programmable head up position, built in machine diagnostics on the display screen, Simple Software updates, 999 jobs, 10 jobs in queue.
Replaceable blade brush
Robust steel base
Automatic chip removal auger
Out of stock switch
Easy access electrical panel and hydraulics
Blade breakage switch
Hydraulic band tensioning with digital readout
Hydraulic carbide guide tensioning
Hardened, replaceable wear plates
Safety door interlocks
Flood coolant with wash down hose
Work light
Variable vise pressure

22” x 22” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-22A Optional Features:
Full capacity hydraulic overhead bundling
6° canted head
Blade deviation
Mist lubrication
Outboard vise clamping options available upon request
Remote console – 15’ cord
Roller discharge table
Vertical alignment rollers
Laser light
Idler conveyors
Powered conveyors
22” x 22” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-22A Optional Accessories:

90° rectangle (h x w): 22″ x 22″
90° round: 22″
90° square: 22″
6° canted head rectangle (h x w): 20″ x 22″
6° canted head round: 20″
6° canted head square: 20″
Blade Drive: 10 HP
Blade Speed: 40-300 SFM
Blade Size: 2″ x 22′ 6″
Automatic Multi-Indexing: 0-34″
Table Height: 31″ (35″ w/ canted head)
Voltages Available: 208, 240, 480, 575 v
Weight: 12,500 lbs
Dimensions (w x l x h): 141″ x 88″ x 92″
Coolant Tank Capacity: 30 Gallons
Hydraulic Tank Capacity: 9.5 Gallons
