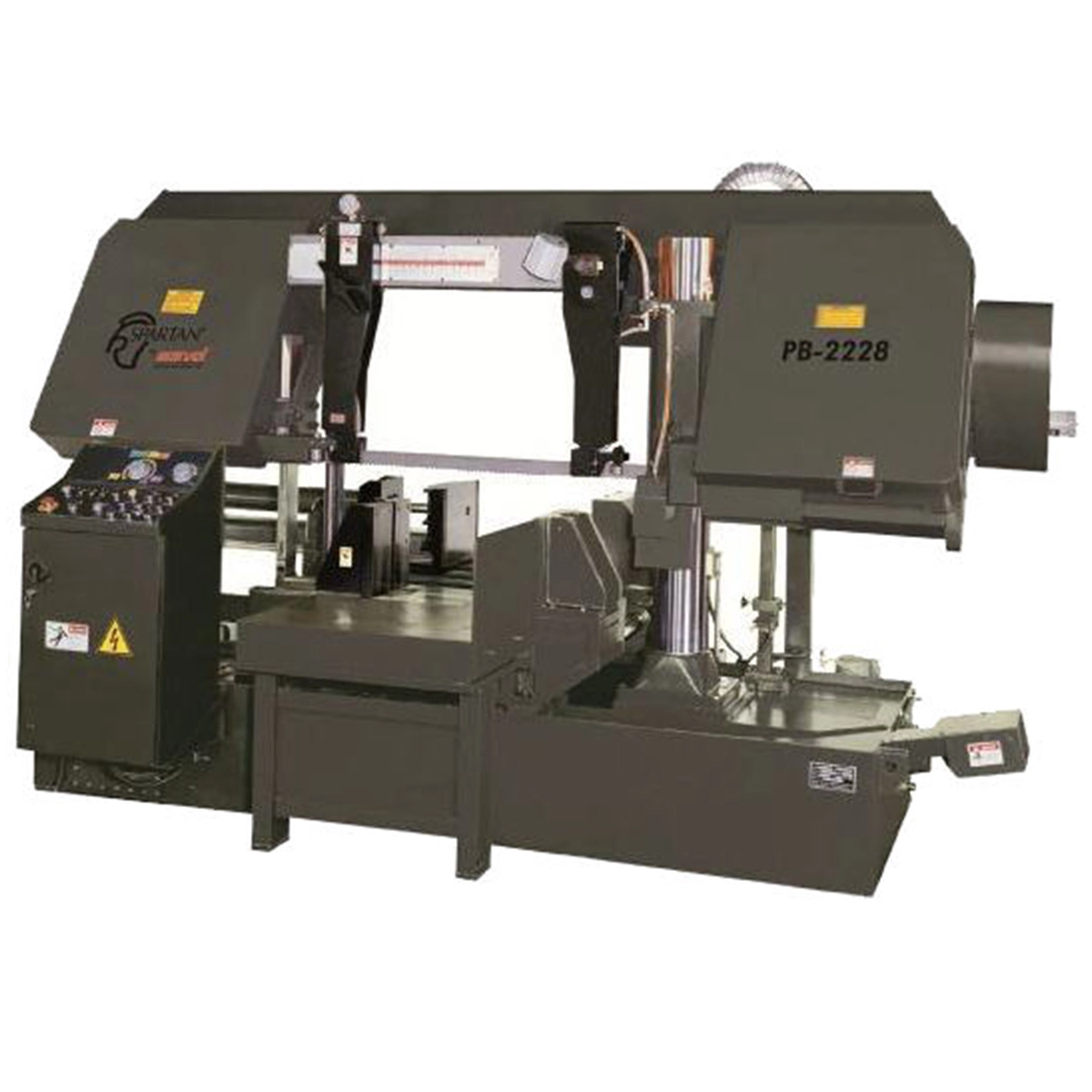

22” x 28” New Marvel Horizontal Billet Saw Model PB 2228 Specifications:
22” x 28” New Marvel Horizontal Billet Saw Model PB 2228 Standard Features:
Blade breakage/motion detector
Power driven wire brush
Saw frame height selector gauge
Work light
Hydraulically damped carbide blade guide system
Out feed auxiliary table
Roller table – 2M long
One bi-metal saw blade
One set of tools
22” x 28” New Marvel Horizontal Billet Saw Model PB 2228 Optional Accessories:
Automatic Chip Conveyor
Out Of Square Detector
Variable Vise Pressure
About Us
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, and Instagram.
Worldwide Machine Tool LLC.
Terms and Conditions: https://www.worldwidemachinetool.com/terms-conditions/
Capacity: 22” x 28” Rectangular, 22” Round. Minimum Vise Clamp 4.33”
Blade: 2″ x .063” x 22’ 4”
Blade Tension: Hydraulically controlled to (38,000 psi). Includes Motion Detector switch to shut down machine if the blade should stall or break.
Speed Range: 60 –265 fpm infinitely variable, driven by heavy-duty worm gear transmission frequency inverter blade speed control.
Feed Force: Hydraulic feed pressure 0 –350lbs. (0 – 1334 N) infinitely variable. Feed force and feed rate can be independently controlled for optimum cutting.
Secondary Head Hydraulic Cylinder: Maintains constant feed rates for optimum cutting performance
Motors: Blade Drive: 10 H.P. (11.25kW), Hydraulic Pump: 3 H.P. (2.25kW), Coolant Pump Motor: 0.25 H.P. (.1875kW)
Automatic Saw Return: Automatic saw head return with height control
Blade Motion Detector: Automatic shut-down of machine during blade breakage.
Blade Guides: Hydraulically controlled solid carbide guides are actuated when the machine’s hydraulic system is started to ensure rigid clamping for accurate cuts. The cast iron guide arms are manually positioned.
Chip Brush: Powered from the main drive shaft of the saw, cleans chips from blade to improve cutting performance and blade life.
Vise Jaws: The front vise jaws are split to hold material on both sides of the blade, reducing vibrations and burrs.
Work Light: Standard feature, mounted directly over work area.
Floor Space Required: 11’ 3” x 7’ 3”
Hydraulic Capacity: 30 gal
Coolant Capacity: 21 gal
Table Height: 29.5 inch
Crated Weight of Machine: 9,920 lbs.
Table Load Capacity: 7,250 lbs.
