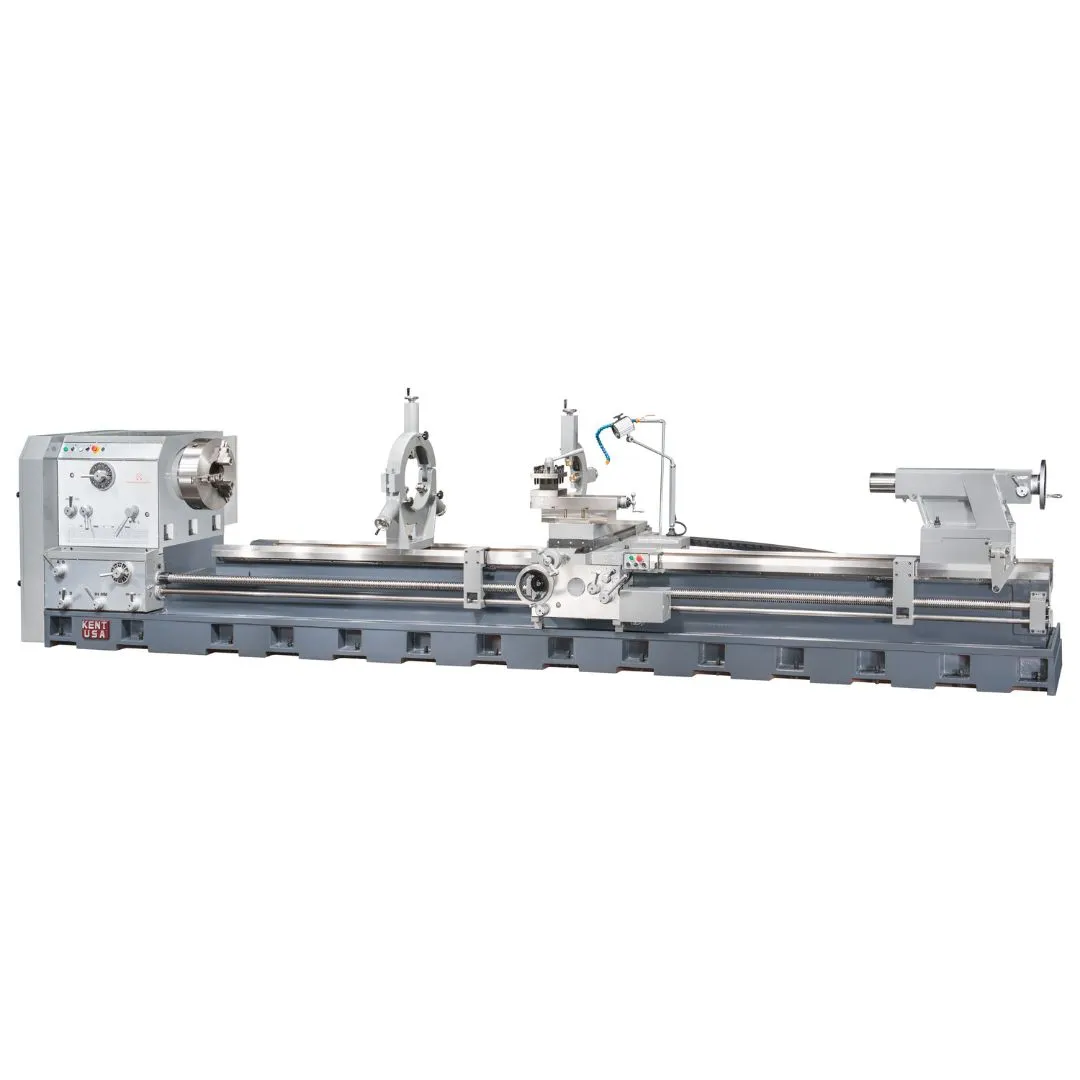

NEW KENT USA HL-44

20 HP Spindle Motor, 16-Speeds
5.98” Spindle Through Hole
Extra Heavy Ribbed One Piece Bedways and Base
Spindle Jog Button Control
One-shot Lubrication for Apron, Carriage, and Bed Ways
Two Speed Tailstock
Magnetic Clutch Brake
4 Way Rapid Feed
Steady rest
Work light
Thread chasing dial
Follow rest
4-position tool post
Coolant system
Digital Readout System
Chuck cover
3-jaw chuck (20″)
4-jaw independent chuck (32″ or 40″)
9″ / 12″ spindle bore
Face plate
Royal spindle type live center
Taper turning attachment
Rear of spindle chuck adapter plate for 32″ 4-jaw chuck
BTC 3-jaw chuck with back plate
Micrometer carriage stop
Rustlick coolant

Swing Over Cross Slide: 31.88″
Swing Over Gap: 61″
Width of Bed: 24″
Distance Between Centers: 120″ (Opt. 80″ / 160″ / 200″ / 240″ / 280″ / 320″)
Cross Slide Travel: 23.6″
Top Slide Travel: 13.78″
Spindle Bore: 6.1″ (Opt. 9″, 12″, 15″)
Spindle Speeds: 16
Spindle Speed Range: 4-420 RPM
Through Hole Diameter: 5.98″
Spindle Nose: ASA A2-11
Spindle Bore Taper: MT#6 (Opt. MT#7)
Thread – Standard (Whit-worth): 1/4-30 TPI
Thread – Metric Pitch: 1 – 120 mm
Longitudinal Feed: 0.00236 – 0.277 IPR
Cross Feed: 0.00118 – 0.138 IPR
Quill Travel: 12″
Quill Diameter: 4.5″
Main Motor: 20 HP
Coolant Pump Motor: 1/8 HP
Packing Dimension: 157″ – 402″ x 60.25″ x 67″
Gross Weight: 20000 – 39820 lbs
