Overview
Type:
Horizontal Dual Column Band Saws
Manufacturer:
AMADA
Model:
HKB-6050CNC
Stock #:
33334
Description

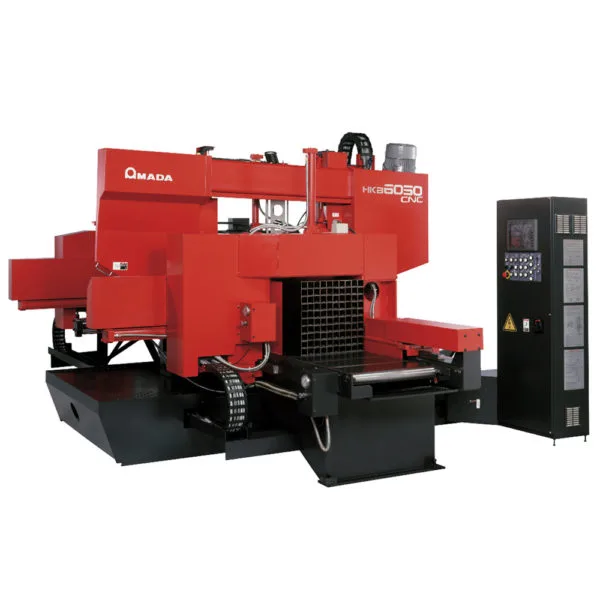

24″ x 20″ New Amada Horizontal Structural Bundle Band Saw Model HKB6050CNC Specifications:
24″ x 20″ New Amada Horizontal Structural Bundle Band Saw Model HKB6050CNC Features:
HIGH PRODUCTIVITY • High speed and high accuracy cutting • Spray mist coolant (optional) • Cleaner work place • Cleaner cut pieces • Eliminate improper mixing ratios

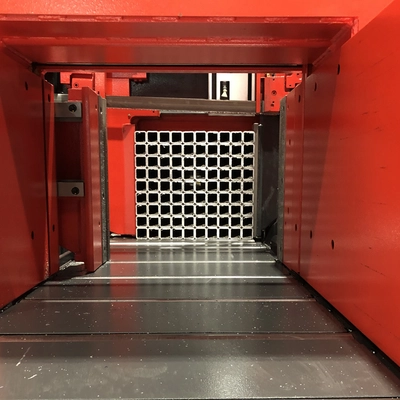

FULL CAPACITY BUNDLE VISES • Clamps on both sides and top • Handles structural, profiles, or solids
REAR INDEXING VISE • 78-inch single stroke indexing • Single direction index on short pieces • Constant clamping maintains bundle configuration
FRONT PULLING VISE • 23 inches per single stroke • Minimal remnant • Clamping on both sides of blades

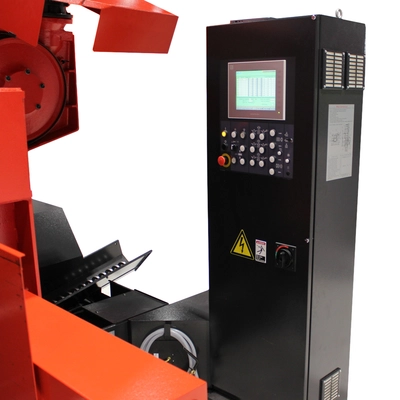

CNC CONTROL • 30 blocks, 10 stations per block • Self-diagnostics by error codes • Feeds and speed by material type
CNC CUTTING CONTROL WITH HYDRAULIC PRESSURE
AUTO TRIM CUT FUNCTION
QUICK APPROACH
CHIP CONVEYOR
FULL CAPACITY VISES
AUTOMATIC BLADE GUIDE SETTING
SELF DIAGNOSTICS
BLADE DEVIATION MONITOR
78.7″ SINGLE INDEX STROKE
FRONT PULLING VISE
VISE PRESSURE CONTROL VALVE

Specifications

Round (diameter): 1″-20″
Rectangle (W x H): 1″ x 1″ – 24″ x 20″
Work Load Capacity: 9,923 lbs
Blade Size (L x T x W): 19.4″ x 0.050″ x 2″
Blade Speed: 49-325 ft/min by Inverter
Tension Control: Hydraulic
Top Limit Setting: Automatic Setting with Quick Approach Feeler
Cutting Control: CNC Control, Hydraulic Flow Control Valve with Stepping Motor
Type: Front, Main and Rear Vises
Control: Hydraulic Full-Stroke Cylinder
Saw Blade: 7.5 HP
Cutting Fluid Pump: 1/4 HP
Hydraulic Pump: 2 HP
Power Supply Voltage: AC220V±10%, 3 PH, 60 Hz
Power Requirement: 11 kVA
Tank Capacity: 38.3 gal
Pump Type: Electric
Tank Capacity: 12.2 gal
Pump Type: Variable Displacement Vane Pump
Pressure Setting: 570 psi
Chip Disposal: Chip Conveyor
Index Mechanism: Shuttle Vise
Stroke: 78.7″
Length: 0.394″ – 999.9999″
Number of Input Block: 1-30/1-10 per block
Number of Cut-Off Pieces: 1-999
Remnant Length: 0.6″ plus length of parts
Head-Up Position: 169.8″ x 226.1″ x 91.7″
Head Down Position: 169.8″ x 226.1″ x 91.7″
Table Height: 28.8″
Machine Weight: 15,215 lbs
