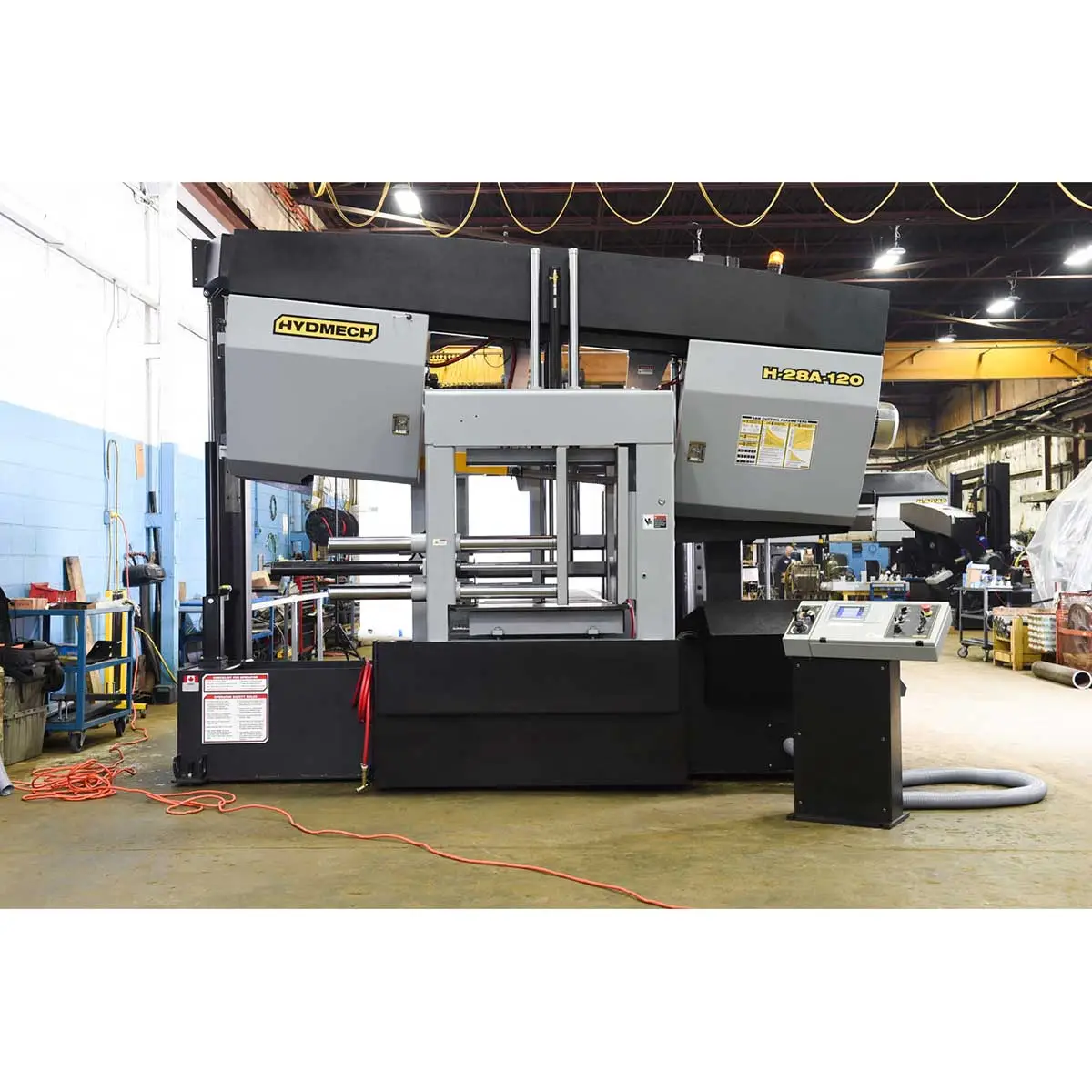

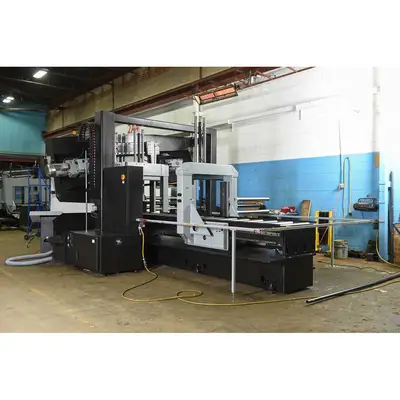

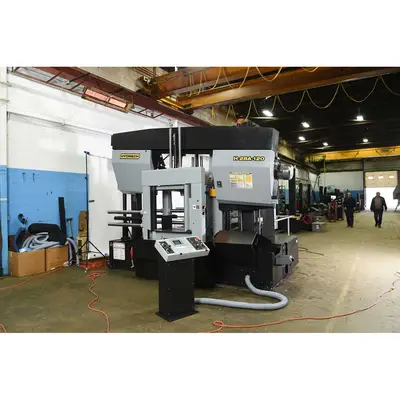

NEW HYD-MECH H-28A-120

24” x 28” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-28A-120 Specifications:
24” x 28” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-28A-120 Standard Features:
6° canted head
Spilt front vise (can be replaced by request with retractable datum vise at no charge)

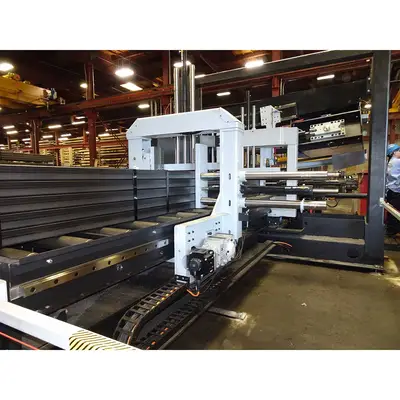

Shuttle features automatic multi-indexing up to 120” in a single stroke with automatic kerf compensation. Powered by a rack and pinion servo drive.
Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times.
Full capacity hydraulic overhead bundling
10 HP VFD. True direct blade drive – no belts/pulleys
Robust steel base
Full capacity, full stroking hydraulic vises
Hydraulic positive down feed
High resolution feed rate valve allows for constant feed rate when cutting special alloys
Blade chamber separates material from cut part
Cast iron band wheels
7” Mitsubishi FX5U PLC color touch screen controller. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. Programmable head up position, Built in machine diagnostics on the display screen, Simple Software updates, 999 jobs, 10 jobs in queue.
Replaceable blade brush
Automatic chip removal auger
Out of stock switch
Easy access electrical panel and hydraulics
Blade breakage switch
Hydraulic band tensioning with digital readout
5 HP hydraulic pump provides system pressure
Hydraulic carbide guide tensioning
Hardened, replaceable wear plates
Safety door interlocks
Flood coolant with wash down hose
Work light
Laser light
Variable vise pressure

24” x 28” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-28A-120 Optional Features:
Blade deviation
Squaring vise
Mist lubrication
Roller discharge table
Vertical alignment rollers
Outboard vise clamping options available upon request
Idler conveyors
Remote console – 15’ cord
Powered conveyors
Powered transformer
24” x 28” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-28A-120 Optional Accessories:

90° rectangle (h x w): 24″ x 28″
90° round: 24″
90° square: 24″
6° canted head rectangle (h x w): 24″ x 28″
6° canted head round: 24″
6° canted head square: 24″
Blade Drive: 10 HP
Blade Speed: 40-300 SFM
Blade Size: 2″ x 25′
Automatic Multi-Indexing: 0-120″
Table Height: 37″
Voltages Available: 480 v (208, 240, 575 v Optional Power transformer required)
Weight: 25,700 lbs
Dimensions (w x l x h): 161″ x 230″ x 120″
Coolant Tank Capacity: 40 Gallons
Hydraulic Tank Capacity: 9.5 Gallons
