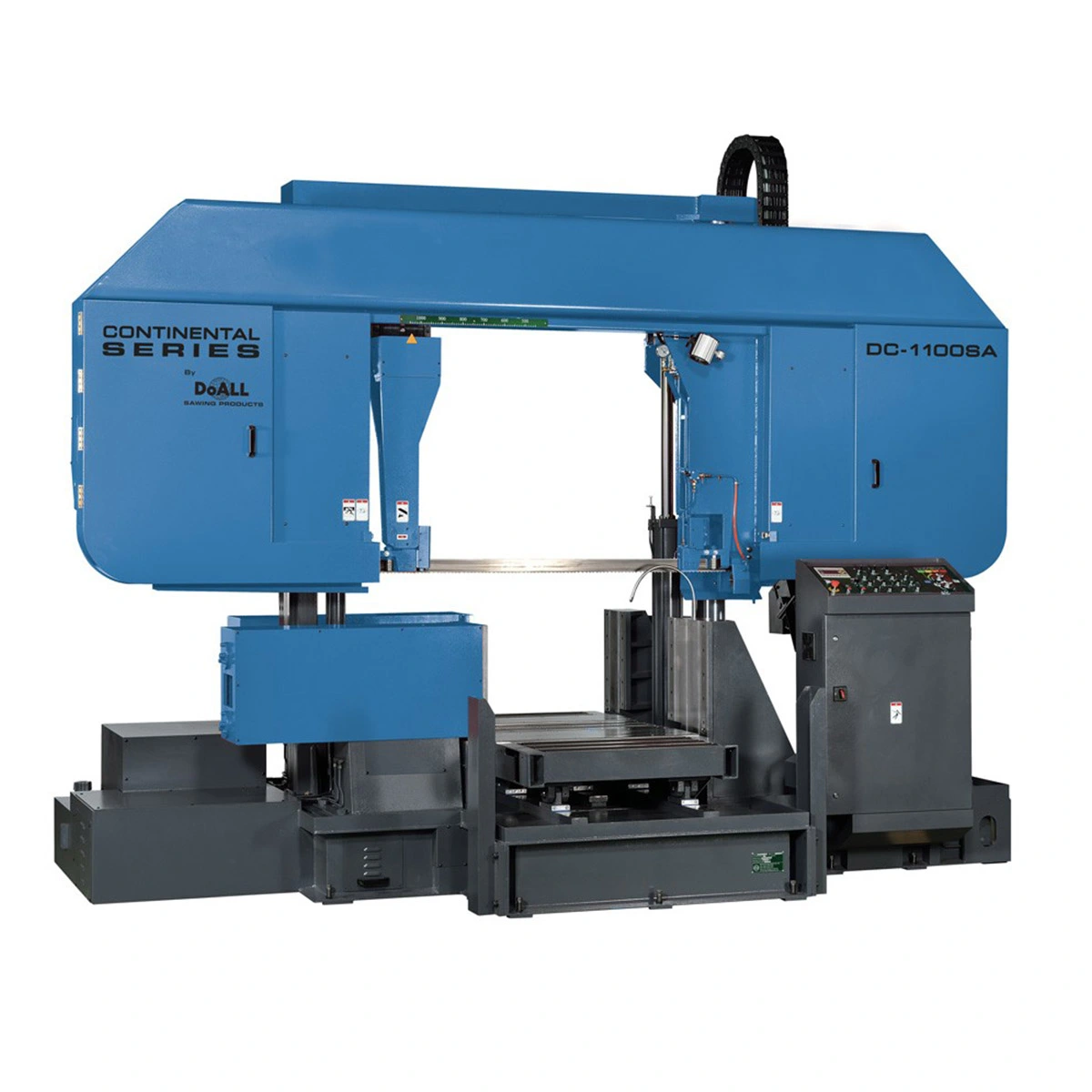

22″ x 43″ New DoAll Horizontal Band Saw DC-1100SA
Overview
Description
22″ x 43″ New DoAll Horizontal Band Saw DC-1100SA
The DC-1100SA Dual Column, high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently.
if you have operations that do not require indexing, high production or automatic cutting cycles, an affordable DoALL dual column, semi-automatic saws is the perfect choice.
22″ x 43″ New DoAll Horizontal Band Saw DC-1100SA Specifications:
22″ x 43″ New DoAll Horizontal Band Saw DC-1100SA Features, Functions and Benefits:
Helical-bevel gear reducer allows for: higher transmission efficiency, higher stability and less noise
Movable bed: Material carrying platform with front/rear rollers for material movement
Cutting depth controller: The cutting motion will automatically stop when the pre-set depth is reached
Multiple chip conveyor: Two-section chip conveyor for raising the height of the chip outlet
Hydraulic Blade Tension: Automatically sets blade tension and reduces it when the machine stops. Allows for higher cutting efficiency. Longer blade life.
22″ x 43″ New DoAll Horizontal Band Saw DC-1100SA Standard Equipment:
Programmable Logic Controller (PLC) control for all electric and hydraulic functions
Variable vise pressure
Blade deviation monitor
Hydraulic full stroke dual vise clamping system
Idle wheel motion detector with blade stalling and breakage shutoff
Carbide blade guide with roller bearing
Length setting: Manual setting (optional powered roller and hydraulic cylinder)
Hydraulic actuated carbide blade guides
Hydraulic fixed guide arm
Flushing hose for machine cleaning
Power driven blade-cleaning wire brush
Infinitely variable blade speed controlled by inverter
Work light
One (1) 6.5 ft (2 meter) gravity conveyor
Tool kit
Complimentary DoALL Cutting Fluids package
One (1) complimentary DoALL bi-metal saw blade
Operation and parts manuals on USB stick
22″ x 43″ New DoAll Horizontal Band Saw DC-1100SA Optional Accessories:
Specifications
Cutting capacity round: 21.75″ – 43.25″
Cutting capacity rectangle: 21.75″w x 1″h – 43.25″w x 43.25″h
Saw blade (length x width x gage): 394″ x 2-5/8″ x 0.063″
Motor HP: 15 Hp
Band speed: 49-262 fpm
Motor HP: 3 Hp
Capacity: 23.75 gal
Motor HP: 0.25 Hp
Capacity: 52.75 gal
W x L x H: 181″ x 94.5″ x 128″
Material pass line height: 26.75″
Machine weight: 30,865 lbs
Voltage requirement (Wye configuration): 230/60Hz/Three phase
