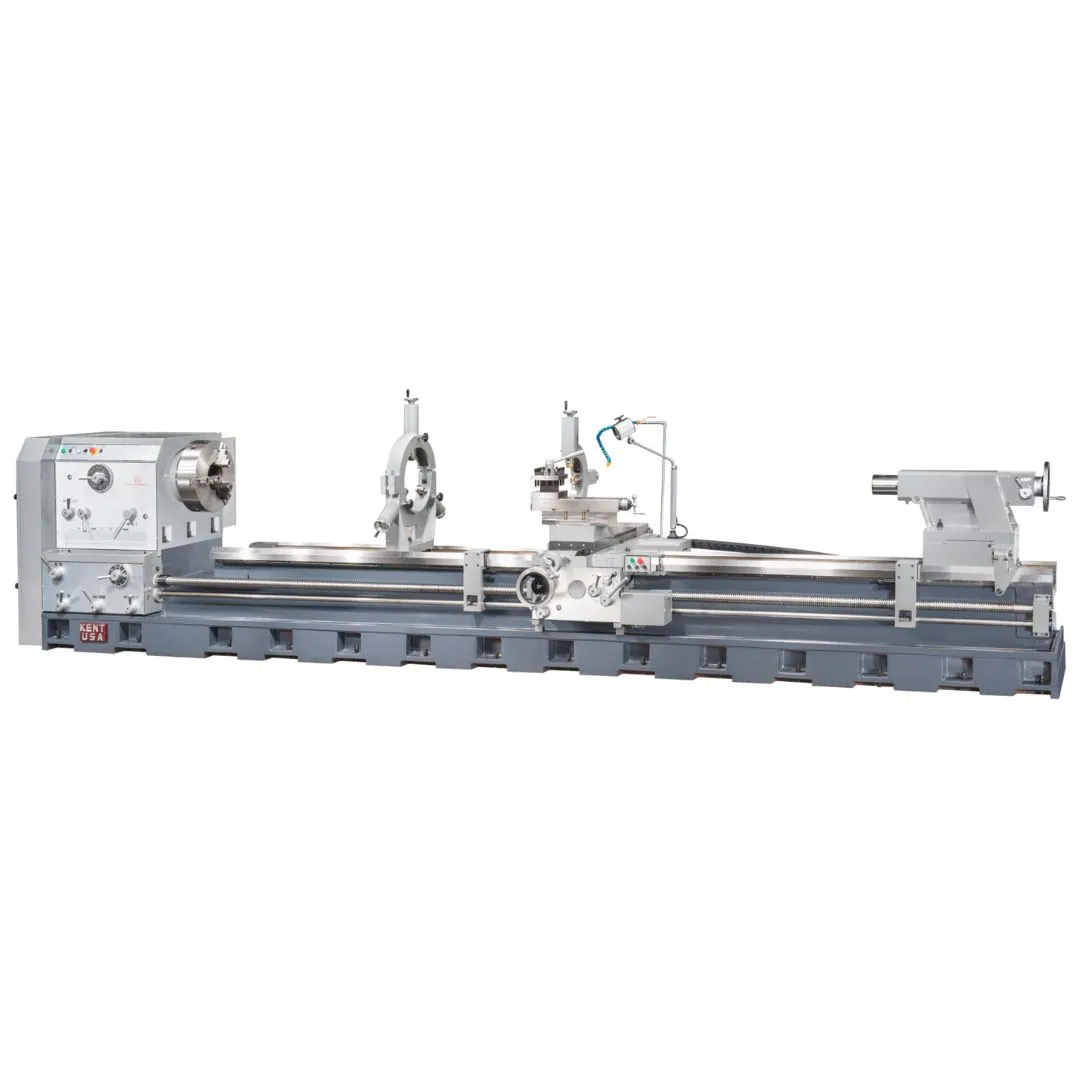

NEW KENT USA HK-48
Overview
30 HP spindle motor
32” wide bed on one piece bed and base design for extra rigidity.
Multi-position adjustable longitudinal feed stop device
4 way rapid traverse
The extra 3rd rail support enhances the cutting force
Locating pin-locking style 4-way tool post allows for easy swiveling but also ensures the rigidity in cutting.
Auto lubricating system for slide ways
9” (up to 15″) spindle bore
4-420 RPM spindle RPM
Lubricating device for headstock
Spindle motor 20HP
Electromagnetic brake
Metric / Inch gear box
Longitudinal & cross rapid feeding
Strong electric tailstock (quill 200mm) – manual quill, motorized base
X,Z-axes auto lubrication system
X,Z-axes with Turcite-B
Steady rest ø16″
Face plate with 4-jaw 40″
Dead center
Toolpost screw wrench
Level pads
Tools & Tool Box
Operation manual
Coolant device
Follow rest
4-jaw independent chuck 40” , 50”
3-jaw chuck (strong type) 20” , 25”
Steady rest ø16″, ø24″
Halogen light
Digital readout
Back splash guard
Quick change tool post (instead of tool post )
CE equipment
Taper turning attachment
Grinder
Hydraulic copy attachment
Automated rapid tool post
Longitudinal adjustable position feed stop
Five position carriage stop
Tailstock with self-rotary quill
Boring attachment
Rear tool post
Double chuck
Rear adapter
Double chuck (Chuck type and size be inquired)
Specs
Center Height: 49.02″
Swing Over Cross Slide: 31.89″
Swing Over Gap: 59.06″
Width of Bed: 32″
Distance Between Centers: 80″~320″
Spindle Bore: Ø 6″ (Opt. Ø 9″, 10″, 12″, 15″)
Spindle Bore Nose: A2-11 (Opt. A2-15, A2-20)
Spindle Speed: 4-420 RPM (16 steps)
Tailstock Quill Diameter: Ø 7.9″
Taper of Center: MT #6
Quill Travel: 11.81″
Cross Feeds: 0.03-3.52mm/rev (0.0012″-0.14″/rev)
Cross Travel: 27.6″
Compound Rest Travel: 15.75″
Tool Size: 1.96″ x 1.96″
Longitudinal Feeds: 0.06-7.04mm/rev (0.0024″-0.28″/rev)
Lead Screw Diameter: Ø 2.36″
Threading Range: 0.25-30 TPI (70 Kinds)
Module Pitch Threads: 0.25 – 30 M.P. (53 Kinds)
DP Pitch Threads: 2 – 30P (48 Kinds)
Main Motor: 30 HP (50 HP Optional Accessory)
Rapid Motor: 1 HP
Coolant Pump Motor: 1/8 HP
Machine Dimensions: 183″ – 380″ x 85″ x 63″
Gross Weight: 41,226 lbs
Net Weight: 38,360 lbs
