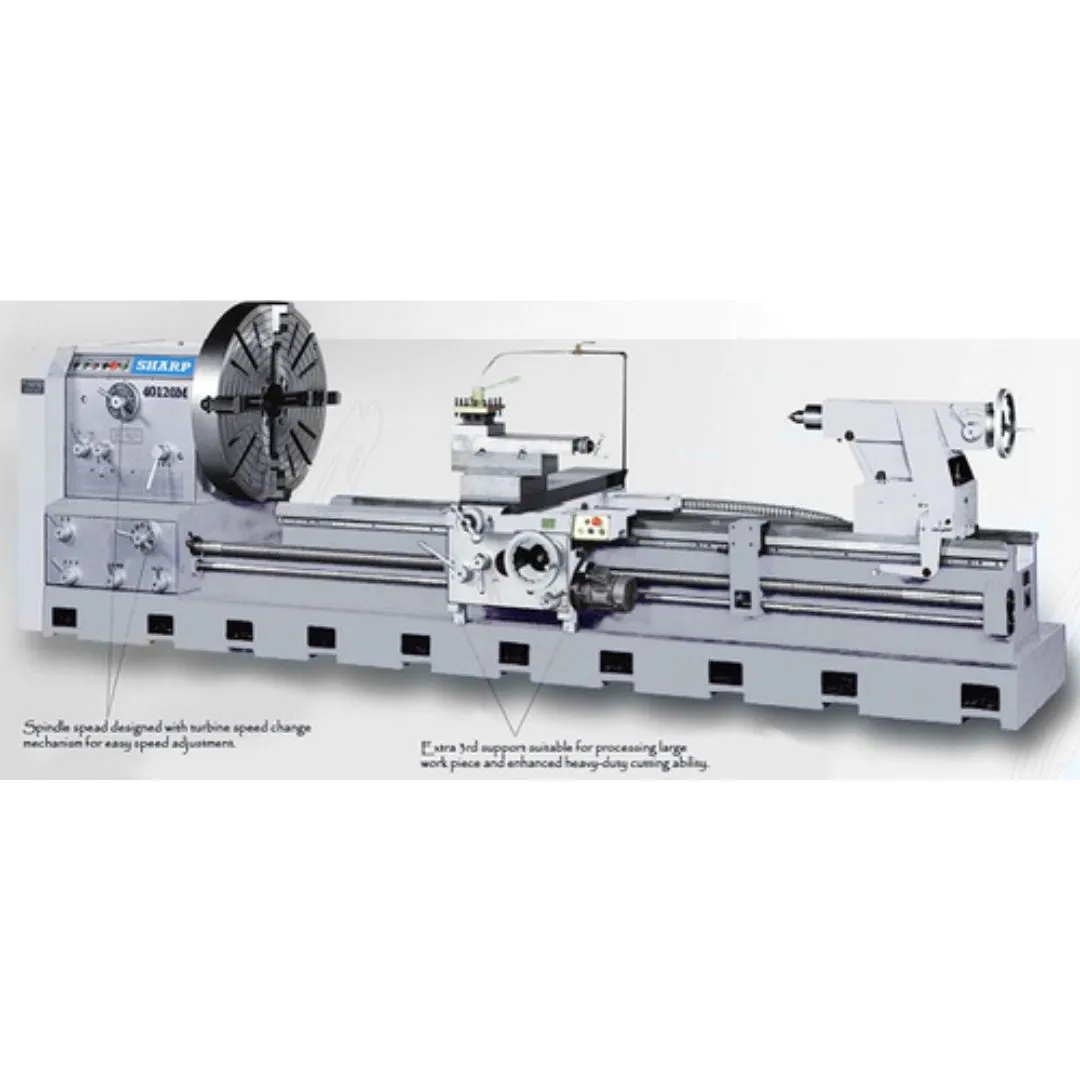

The big bore lathe is ideal for large pipe works in oil fields and big valves works. This series offers spindle bores up to 15″, center distance range from 60″ to 315″. The machine bed is 32″ wide. Double chucks are available for holding extra long and large work pieces.
It is suitable for turning and cutting large work pieces and steel rod materials for heavy industries like oil pipe network, aerospace and heavy-duty shaft processing.
It is suitable for turning and cutting large work pieces and steel rod materials for heavy industries like oil pipe network, aerospace and heavy-duty shaft processing.
Casting:
One-piece casting work with reinforced inner structure, extra 3rd support to be suitable for processing of large work piece and enhanced heavy-duty cutting ability.
The removable gap has a built-in reinforced structure and does not affect any cutting stability.
Casting:
One-piece casting work with reinforced inner structure, extra 3rd support to be suitable for processing of large work piece and enhanced heavy-duty cutting ability.
One-piece casting work with reinforced inner structure, extra 3rd support to be suitable for processing of large work piece and enhanced heavy-duty cutting ability.
The removable gap has a built-in reinforced structure and does not affect any cutting stability.
The removable gap has a built-in reinforced structure and does not affect any cutting stability.
Spindle:
Bore 6 “, 16-step speed change, turbine speed change mechanism with no easy speed jumping and three-point support for the box.
It is fitted with an adjustable electromagnetic brake for easy braking adjustment according to different workpiece materials and speed.
Gear and shaft are made of super alloy material with FAG bearings to offer durable cutting and low production noise.
Sealed oil bath lubrication system with enforced oil supply by mechanical pump to achieve better lubrication effects.
Bore 6 “, 16-step speed change, turbine speed change mechanism with no easy speed jumping and three-point support for the box.
It is fitted with an adjustable electromagnetic brake for easy braking adjustment according to different workpiece materials and speed.
Gear and shaft are made of super alloy material with FAG bearings to offer durable cutting and low production noise.
Sealed oil bath lubrication system with enforced oil supply by mechanical pump to achieve better lubrication effects.
Gear Box: Metric / Inch gear box free from gear exchange to improve production efficiency. Speedy installation, forward and reverse movement, safety installation with automatic sealed oil bath lubrication system.
Apron
Feeding
Device: Swift transmission, positive and negative rotation movement, and safety device with auto-sealed oil bath lubrication & cross rapid feeding.
Apron
Feeding
Feeding
Device: Swift transmission, positive and negative rotation movement, and safety device with auto-sealed oil bath lubrication & cross rapid feeding.
Device: Swift transmission, positive and negative rotation movement, and safety device with auto-sealed oil bath lubrication & cross rapid feeding.
Saddle: Anti-friction processed surface with regular oil injections, lubricated and friction endurable.
Saddle: Anti-friction processed surface with regular oil injections, lubricated and friction endurable.
Tailstock: Motorized tailstock.
Tailstock: Motorized tailstock.
Electrical: Control: 2-stage safety start-up device and overloading power cut system.
Electrical: Control: 2-stage safety start-up device and overloading power cut system.
Castings: FC-30 steel is used for main structures like the base, spindle, saddle, and tailstock, which are annealed and have no deformation.
Castings: FC-30 steel is used for main structures like the base, spindle, saddle, and tailstock, which are annealed and have no deformation.
Processing: Base, spindle, saddle, slot surface of the traveling plate, tool base sliding table, and tail shaft pipe are high-frequency treated and precision ground for extended service life.
Processing: Base, spindle, saddle, slot surface of the traveling plate, tool base sliding table, and tail shaft pipe are high-frequency treated and precision ground for extended service life.
Headstock: Gear and shaft are made of super alloy material with FAG bearings to offer durable cutting and low, Production noise, Turbine speed change mechanism with an easy speed jump. Three points support for the box.
Headstock: Gear and shaft are made of super alloy material with FAG bearings to offer durable cutting and low, Production noise, Turbine speed change mechanism with an easy speed jump. Three points support for the box.
Electric box: 2 stage safety start-up device, durable cutting and low production noise. Overloading power cut System, Filtered with adjustable, electromagnetic brake for easy braking adjustment according. To different work piece materials and speed.
Electric box: 2 stage safety start-up device, durable cutting and low production noise. Overloading power cut System, Filtered with adjustable, electromagnetic brake for easy braking adjustment according. To different work piece materials and speed.
Coolant Device
X, Z – axes Auto Lubrication System
X, Z – axes with Turcite-B
Steady Rest 16”, Bearing Type (grip range: 60-400 mm)
Face Plate with 4-Jaw 40”
Dead Center
Center Sleeve MT#6 (6” bore only, option for 9” and above)
Tool post Screw Wrench
Level Pads
Tools and Toolbox
Operation Manual
Lubricating Device for Headstock
Spindle Motor: 30HP
Electro Magnetic Brake
Metric / Inch Gear Box
Longitudinal & Cross Rapid Feeding
Electric tailstock with quill dia. 200mm, tailstock body and quill motorized for 32” bed width
Follow Rest. 60 mm to 280 mm for 32” bed width $3,035.00
4-jaw independent A2-11-20” (500mm, bore 160mm, grip range ID 75-450mm / OD 170~475mm) $4200.00
4-jaw independent A2-11-24 chuck (610mm, bore 160mm, grip range ID 55-555mm/ OD 175~575mm) $6120.00
4-jaw independent A2-11-26” chuck (660mm, bore 160mm, grip range ID 55-605mm/ OD 175~625mm) $8270.00
4-jaw independent A2-11-32” chuck (810mm, bore 160mm, grip range ID 50-760mm/ OD 190~775mm) $15,740.00
4-jaw independent A2-11-36” chuck (915mm, bore 160mm, grip range ID 55-850mm/ OD 205~875mm) $20,960.00
4-jaw independent A2-11-40” chuck (1020mm, bore 160mm, grip range ID 55-960mm/ OD 205~975mm) $22,015.00
9 “Bore (A2-15) in lieu of 6” Bore-$ call for price
10“Bore (A2-15) in lieu of 6” Bore-$ call for price
12” Bore (A2-20) in lieu of 6 “Bore-$ call for price
15” Bore (A2-20) in lieu of 6” Bore-$ call for price
6” spindle bore with A2-15 spindle nose and double bearing support system-$ Call for Price
Steady Rest w/Bearing type for 32” bed width /1320-16″ (grip range 60~400mm) $6,470.00
Steady Rest w/Bearing type for 32” bed width / 1320-24″ (grip range 380~600mm) $7,300.00
Sliding type front Chuck Guard — type 3 (within 32″) $2,654.00
Sliding type Front Chuck Guard, type 3 (within 32″) with limit switch $2,724.00
Back splash guard for 50120 (32” bed width) $4,085.00
Taper attachment (travel 400 mm, +/- 8 degree) factory order $9740.00
Rear Chuck Adaptor for 6” bore with guard up to, 32” chuck $2,455.00
3-jaw strong scroll chuck SK-16″ (bore: 160mm) with A2-11 back plate (A2-11) (TAIWAN) $7,144.00
3-jaw strong scroll chuck SK-20″ (500mm, bore: 205mm) with back plate (A2-11), clamping -OD: Ø25-Ø480 ID: Ø125-Ø460mm $ 9,512.00
3-jaw scroll strong chuck 24.8″ (630mm, bore 180mm)/A2-11 back plate (OD grip Ø55~Ø630 mm ID grip Ø190~Ø590mm) $15,288.00
40 HP in lieu of 30 HP $2,975.00
50 HP in lieu of 30 HP $3,940.00
UL parts upgrade for 30 HP (UL Electricity standard for 32” bed width instead of General electricity 30 HP) $3,200.00
Extra force lubrication system for gear boxes $1,174.00
Automatic rapid 4-way tool post (power feed on the compound) instead of 4-way tool post) $5,874.00
Automatic rapid 6-way tool post (power feed on the compound) instead of 4-way tool post) $5,874.00
Live Center-super load type 60° MT#6 (made in Taiwan) $3,820.00
Digital Read Out-Call For price
About Us
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, and Instagram.
Worldwide Machine Tool LLC.
Terms and Conditions: https://www.worldwidemachinetool.com/terms-conditions/
Swing Over Bed: 51.97″
Swing Over Cross Slide: 35.83″
Distance Between Centers: 118.11″
Swing Over Gap: 63″
Width of Bed: 31.9″
Width of Gap (Spindle End Face): 21.3″
Length of Bed: 215″
Spindle Bore Diameter: 6″
Number of Spindle Speeds: 16 steps
Range of Spindle Speeds: 4-420 RPM
Spindle Nose: A2-11
Width of Carriage: 34.65″
Cross Slide Travel: 25.98″
Compound Rest Travel: 15.75″
Max. Size Cutting Size: 1.57″ x 1.57″
Quill Diameter: 7.87″
Quill Travel: 11.8″
Quill Center Taper: MT #6
Leadscrew Diameter & Pitch: 2.32” x 2 T.P.I.
Range of Metric Pitches: 1-120 mm, 62 Nox
Range of Inch Pitches: 0.25- 30 TPI, 70 Nos
Range of Diametrical Pitches: 1-120 DP, 70 Nos
Range of Module Pitches: 0.25- 30 MP, 53 Nos
Feed Rod Diameter: 1.26″
Range of Longitudinal Feeds: 0.0028” – 0.34” in/rev
Range of Cross Feeds: 0.0014” – 0.17” in/rev
Main Spindle Motor: 30 HP
Coolant Pump Motor: 1/8 HP (0.1 kw)
Net Weight: 33,000 lbs
Dimensions (LxWxH): 223” x 85.4” x 66.5”
