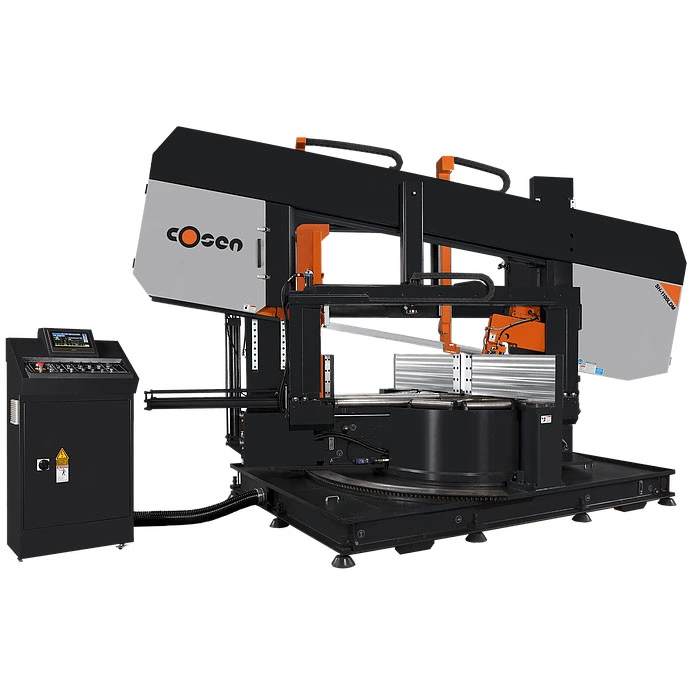

NEW COSEN SH-1100LDM

The 26″ x 43.3″ New Cosen Horizontal Band Saw Model SH-1100LDM provides a full range of semi-automatic band saws in a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw machine. With its rigid construction and superior features, Cosen’s SH-1100LDM fits into that category. This heavy duty band saw offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment.

26″ x 43.3″ New Cosen Horizontal Band Saw Model SH-1100LDM Specifications:


26″ x 43.3″ New Cosen Horizontal Band Saw Model SH-1100LDM Features:
High precision linear guide way design
Heavy-duty cast iron swivel center features straight cutting and miter cuts (60 degrees)
Gearbox designed to accept high lateral pressure (no thermal distortion)
Inverter blade drive system which allows infinitely variable blade speeds
Adjustable flood coolant system
Motor driven, synchronized wire blade brush
Carbide blade guides and bearing provides additional blade support
Hydraulically actuated cast-iron guide arms
Cast-iron hydraulic vise
Automatic hydraulic blade tensioning device
Dual valve feed pressure and feed rate system for optimal cutting performance

Maximum Cutting Capacity Round 0˚ angle: 26″
Maximum Cutting Capacity Round +45˚ angle: 26″
Maximum Cutting Capacity Round +60˚ angle: 15.7″
Maximum Cutting Capacity Rectangular 0˚ (HxW): 26″ x 43.3″
Maximum Cutting Capacity Rectangular +45˚ angle (HxW): 26″ x 26″
Maximum Cutting Capacity Rectangular +60˚ angle (HxW): 26″ x 15.7″
Blade Speed: 79-394 FPM
Blade Size (LxWxT): 33′ 2.4″ x 2.625″ x .063″
Blade Motor: 15 H.P.
Hydraulic Motor: 3 H.P.
Coolant Motor: 1/2 H.P
Workbed Height: 33.5″
Weight: 22631 lbs
Floor Space (LxWxH): 191″ x 193″ x 134″
