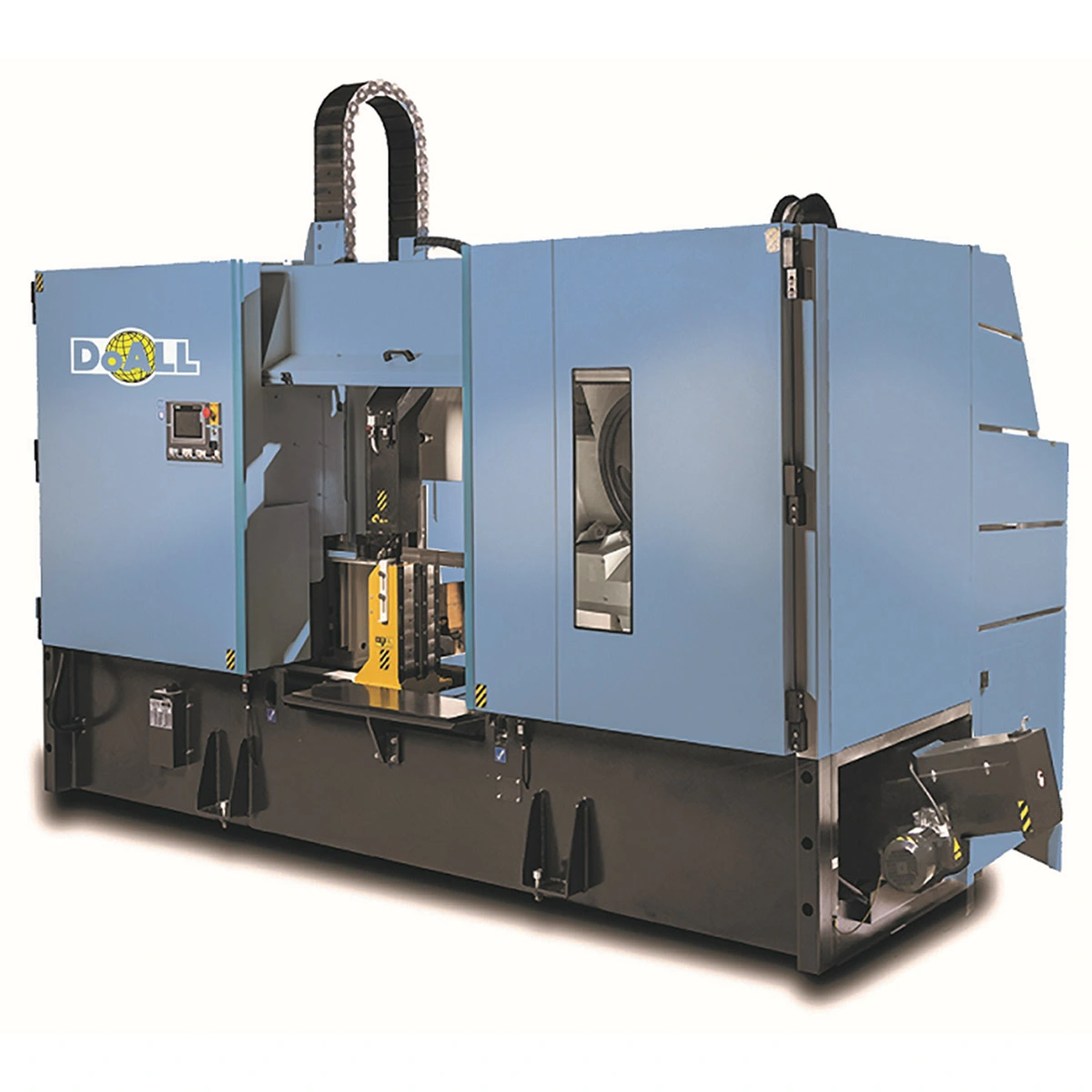

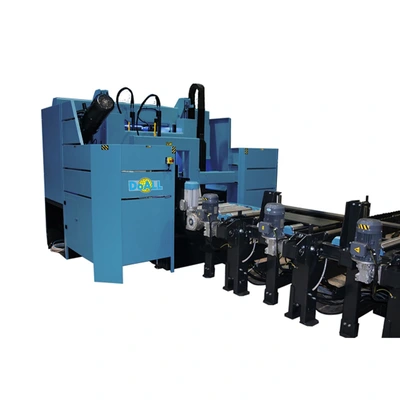

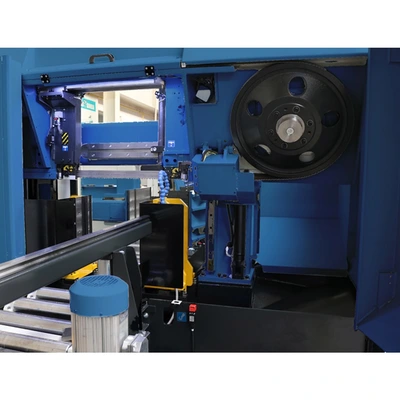

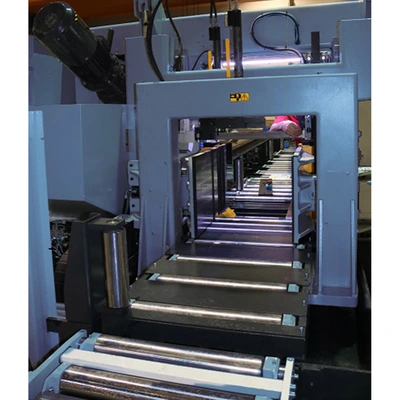

NEW DOALL DC-750CNC

28″ x 30″ New DoALL Horizontal Band Saw Model DC-750CNC, the DC-750CNC Hercules™ high production, horizontal CNC band saws from DoALL are highly efficient, automatic, hydraulically controlled machines with multiple material feeds. Designed for vertical cuts, the DoALL DC-750CNC model is ideal for serial production in industrial settings. Thanks to the robust construction of the DC-750CNC, it is possible to cut a wide range of full and profile materials including stainless and tool steel. In addition, the “box” or enclosed design provides very safe operation. A large variety of optional accessories are available to customize the machine for specific sawing requirements.
28″ x 30″ New DoALL Horizontal Band Saw Model DC-750CNC Specifications:

28″ x 30″ New DoALL Horizontal Band Saw Model DC-750CNC Standard Equipment:
Siemens control with touch screen display
Automatic feed control with programmable feed rates
Work light
Chain chip conveyor including chip pan with drain
Retractable stationary machine vice jaw
Dual acting index vise jaws for crooked stock
Hydraulic band tension
Automatic retraction of material in cycle for protection of carbide blade
Variable vise pressure control – Set of 2
Programmable work height
Automatic guide arm setting
Power-driven band brush
Tool kit
Flood coolant
Operation and parts manuals on CD and USB data stick
Complimentary DoALL cutting fluids package
One (1) complimentary DoALL bi-metal saw blade
Automatic retraction of material in cycle for protection of carbide blade
Hydraulic blade clamping in saw guides

28″ x 30″ New DoALL Horizontal Band Saw Model DC-750CNC Optional Accessories:

Capacity at 90° rectangle: 28″ x 30″
Capacity at 90° round tube: 28″
Capacity at 90º round solid: 27.5″
Maximum nesting capacity: 29.5″ x 17.75″
Minimum nesting capacity: 4.5″
Band saw blade dimensions: Width: 2-5/8″ x 0.063″
Length: 303″
Band speed: 50-262 fpm
Band drive motor: 15hp – 25° sloped
Auto index single stroke min-max: 0.12″ – 27.5″
Auto index multiple stroke max: 394″
Minimum butt end: 8.5″
Multiple feed: 393.7″
Hydraulic pump: 5.4hp
Coolant pump and capacity: 0.2hp, 52.8 gal
Material pass line height: 24.4″
Machine weight: 27,558 lbs
Dimensions W x L x H: 229″ x 109″ x 95″
Machine voltage (Wye configuration): 460V-60Hz-3ph
