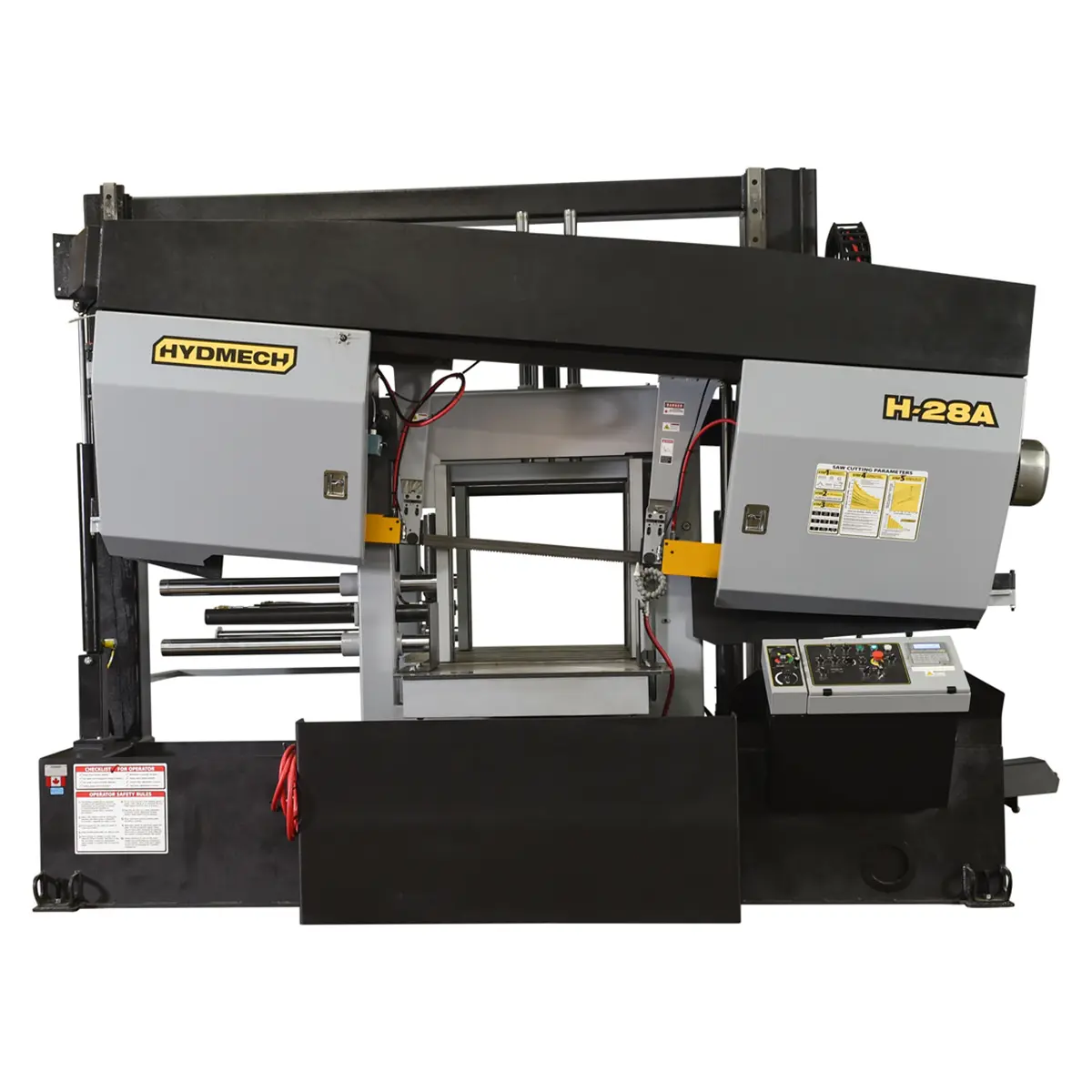

28” x 28” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-28A Specifications:
28” x 28” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-28A Standard Features:
One piece design – no alignment necessary
Spilt front vise (can be replaced by request with retractable datum vise at no charge)
Shuttle features automatic multi-indexing up to 34” in a single stroke with automatic kerf compensation.

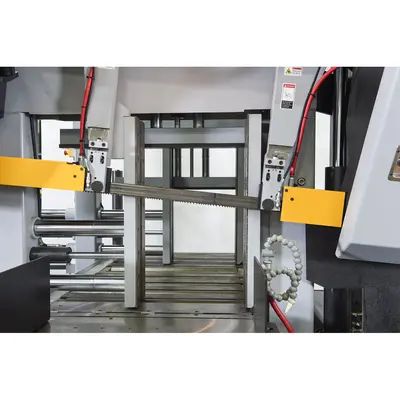

Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times.
10 HP VFD. True direct blade drive – no belts/pulleys
Full capacity, full stroking hydraulic vises
Robust steel base
Blade chamber separates material from cut part
Hydraulic positive down feed
High resolution feed rate valve allows for constant feed rate when cutting special alloys
Cast iron band wheels
7” Mitsubishi FX5U PLC color touch screen controller. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. Programmable head up position, Built in machine diagnostics on the display screen, Simple Software updates, 999 jobs, 10 jobs in queue.
Replaceable blade brush
Automatic chip removal auger
Easy access electrical panel and hydraulics
Blade breakage switch
Hydraulic band tensioning with digital readout
5 HP hydraulic pump provides system pressure
Hydraulic carbide guide tensioning
Hardened, replaceable wear plates
Safety door interlocks
Flood coolant with wash down hose
Work light
Out of stock switch
Variable vise pressure
28” x 28” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-28A Optional Features:
Full capacity hydraulic overhead bundling
6° canted head
Blade deviation
Mist lubrication
Outboard vise clamping options available upon request
Remote console – 15’ cord
Roller discharge table
Vertical alignment rollers
Laser light
Idler conveyors
Powered conveyors
Power transformer
28” x 28” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-28A Optional Accessories:
90° rectangle (h x w): 28″ x 28″
90° round: 28″
90° square: 28″
6° canted head rectangle (h x w): 24″ x 28″
6° canted head round: 24″
6° canted head square: 24″
Blade Drive: 10 HP
Blade Speed: 40-300 SFM
Blade Size: 2″ x 25′
Automatic Multi-Indexing: 0-34″
Table Height: 31″ (37″ w/ canted head)
Voltages Available: 480 v (208, 240, 575v Optional Power transformer required)
Weight: 18,000 lbs
Dimensions (w x l x h): 161″ x 92″ x 120″
Coolant Tank Capacity: 40 Gallons
Hydraulic Tank Capacity: 9.5 Gallons
